How to Create a PDF Invoice from a Template Using PDF.co and Zapier

Set Up the Google Sheets Trigger

Create a Zap and select Google Sheets as the trigger app.

Choose New Spreadsheet Row, connect your Google account, and select the spreadsheet and worksheet containing the invoice data. Test the trigger to load a sample row.

Connect PDF.co

Add an action and select PDF.co. Click Sign in, then authorize Zapier to access your PDF.co account.

The same connection can be used for every PDF.co action in the Zap.

Add Invoice Text

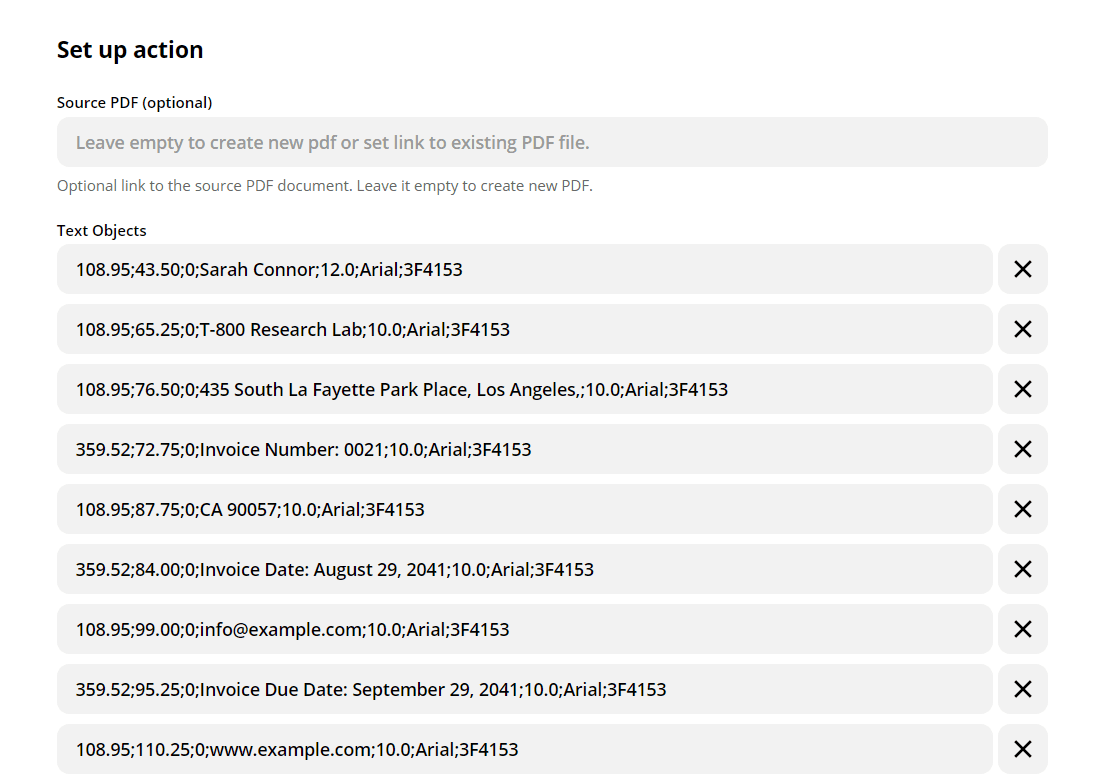

Select Add Text to PDF as the action event and configure it:

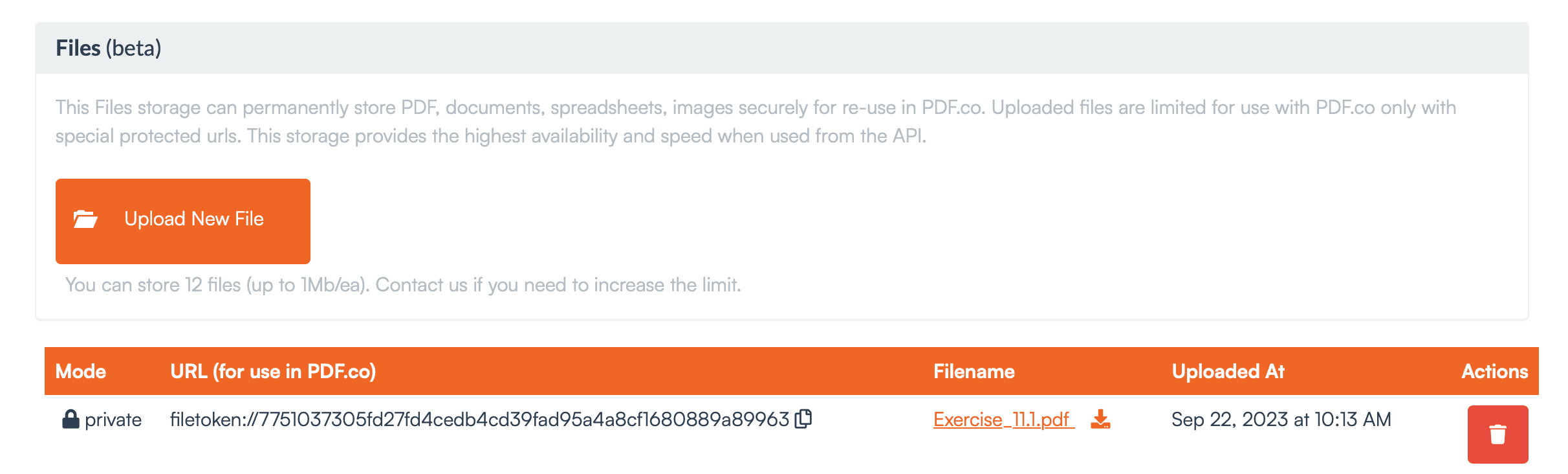

• Source File URL: Enter the direct URL or filetoken:// link for the invoice template.
• Text to Add: Map a value from Google Sheets, such as the invoice number.
• X Coordinate: Enter the horizontal position.
• Y Coordinate: Enter the vertical position.
• Advanced Options: Set the page, font name, font size, color, and other formatting options as needed.

PDF page indexes begin at 0, so use page 0 for the first page.

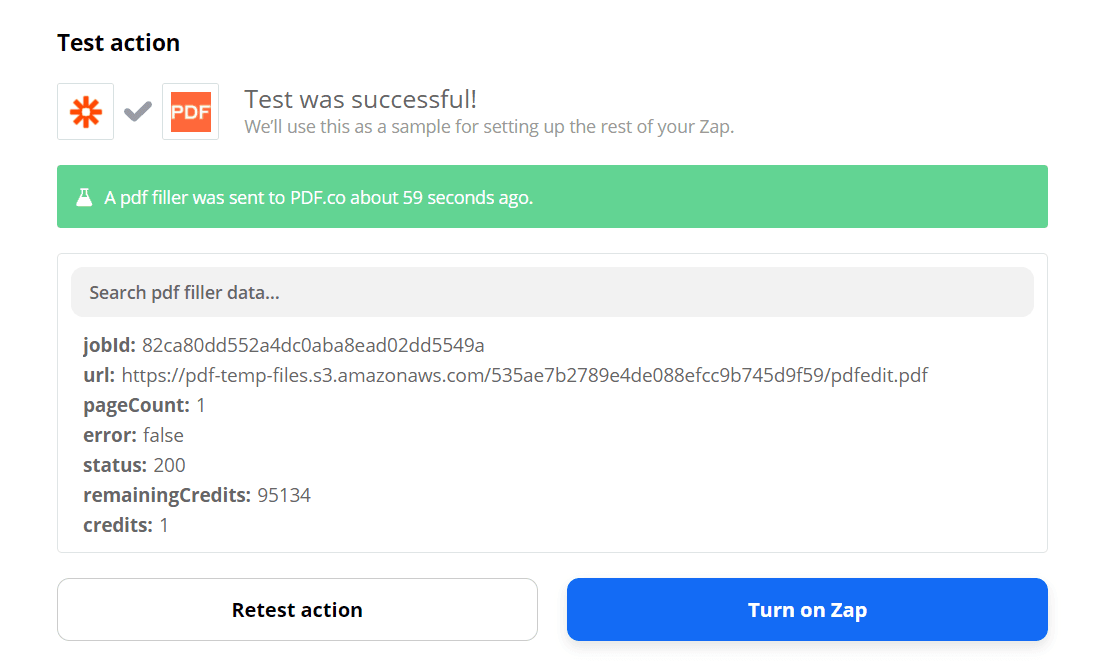

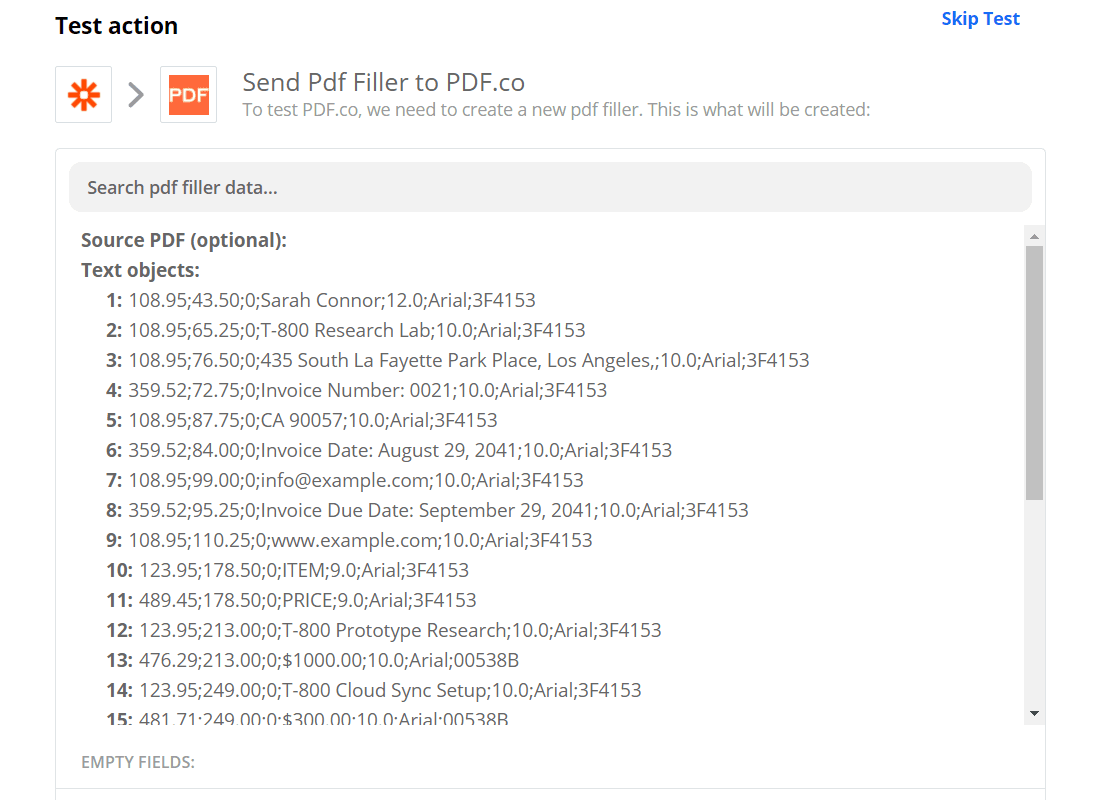

Test the action and confirm that the text appears in the correct location.

Add More Invoice Fields

Duplicate the Add Text to PDF action for each additional field.

For every action after the first:

• Map the preceding PDF.co action’s output URL into Source File URL.
• Map the appropriate spreadsheet value into Text to Add.
• Enter the coordinates and formatting for that field.

Passing the latest output URL forward ensures that each new text element is added to the same invoice.

Add the Company Logo

Add another PDF.co action and select Add Image to PDF.

Configure the action:

• Source File URL: Map the output URL from the final Add Text to PDF step.
• Image URL: Enter the direct URL or filetoken:// link for the logo.
• X Coordinate: Enter the logo’s horizontal position.
• Y Coordinate: Enter the logo’s vertical position.
• Configure the page, width, and height if these options are displayed.

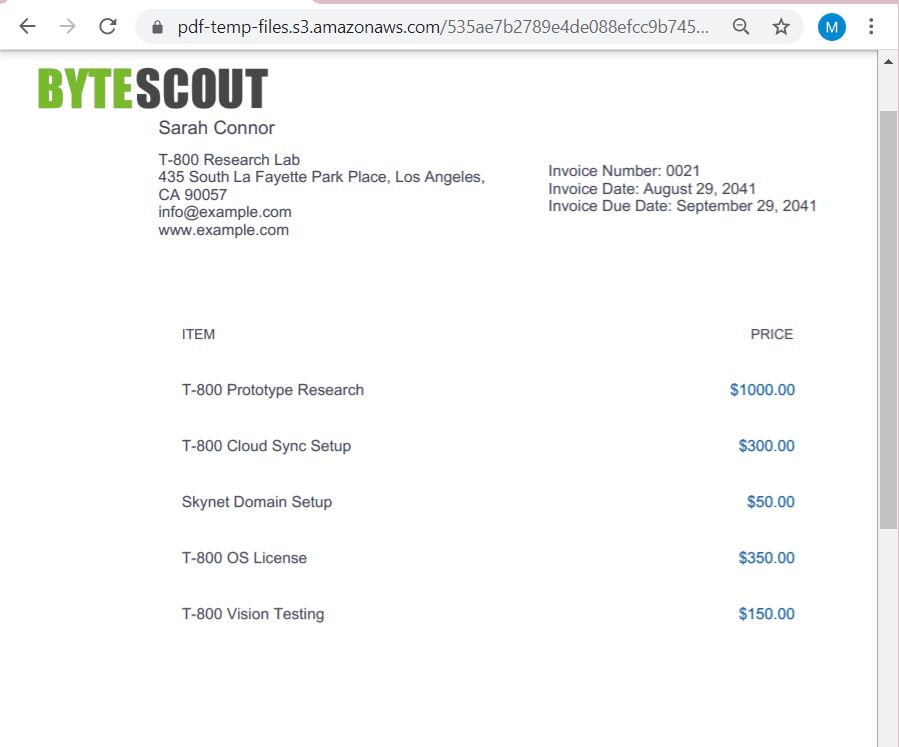

Test the action and review the generated invoice.

For additional placement and formatting options, see the PDF Add documentation.

Save the Invoice

PDF.co returns a temporary URL for the completed invoice. Add Google Drive — Upload File and map the PDF.co output URL into the file field.

Choose the destination folder and create a descriptive file name, such as:

Invoice-{{Invoice Number}}.pdf

Test the complete workflow, then publish the Zap. A new invoice will now be generated whenever a row is added to the selected Google Sheet.
