How to Add Annotations using Custom API Calls to PDF.co from Zapier?

In this tutorial, we will show you how you can add text, images, text fields, unchecked checkbox, checked checkbox to an existing PDF file using the Custom API Call. To do this, we will call the /pdf/edit/add endpoint which is also known as PDF Filler in PDF.co for Zapier. You can read about the other endpoints in our API Docs here.

  1. Set Up Zapier Action
  2. Configure the Custom API Call
  3. Test & Review
  4. Copy & Paste URL to Browser to See Output

The Custom API Call is designed for advanced users. There are additional customizations available here compared to PDF Filler in PDF.co Action plugin for Zapier. If you are not looking for advanced settings, you can use the PDF Filler in PDF.co Action in the plugin. Here is the tutorial to see it in action https://pdf.co/add-text-and-images-with-links-to-a-pdf-using-zapier

Sample PDF File To Add Annotations
Screenshot of Source PDF file

1. Set Up Zapier Action

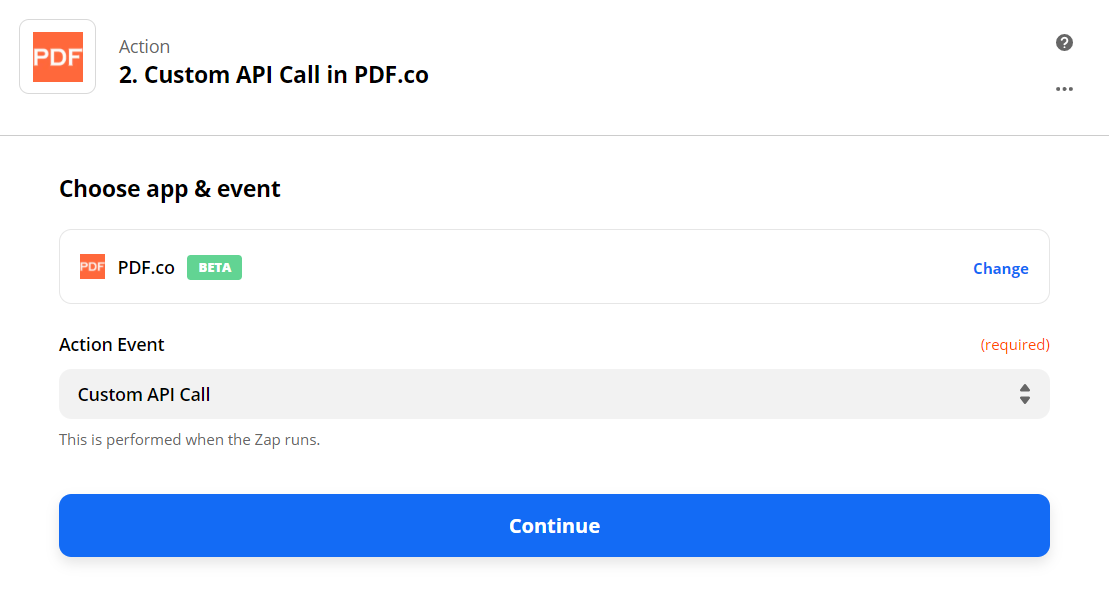

Kindly select PDF.co as the App and Custom API Call as the Action Event.

Set Custom API Call In PDF.co As The Action Step

2. Configure the Custom API Call

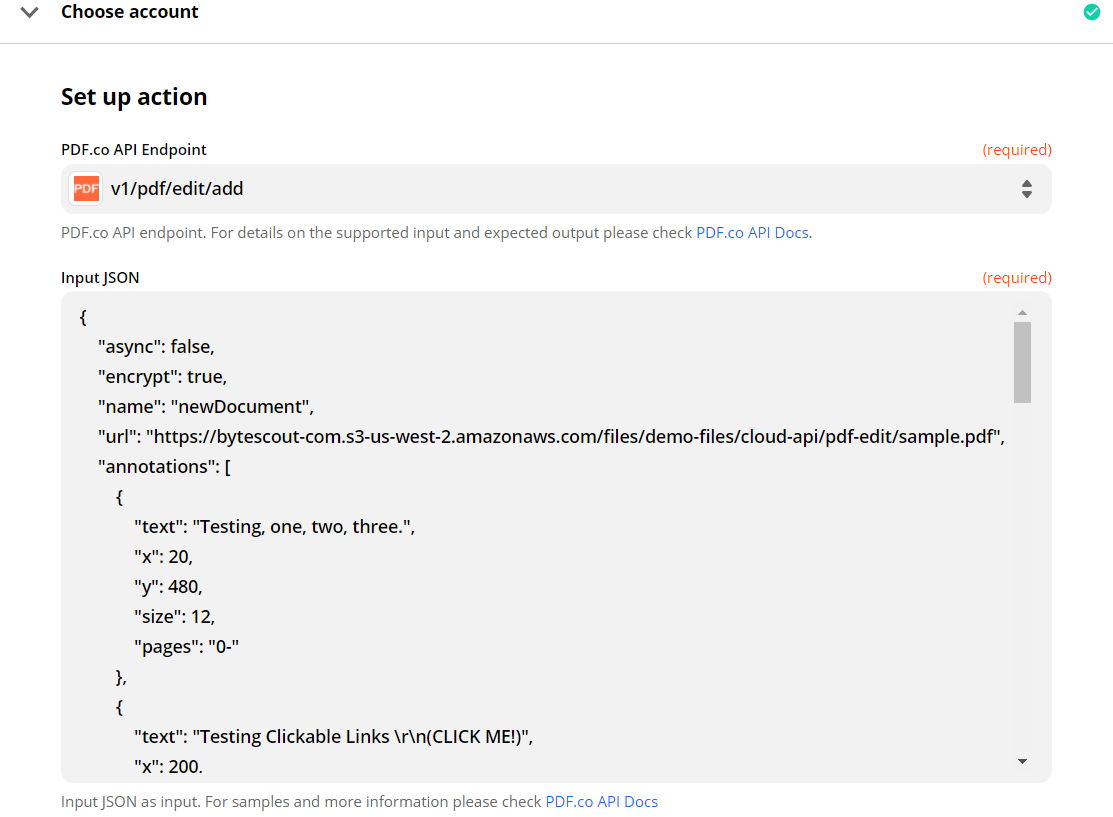

  • In the PDF.co API Endpoint field, select v1/pdf/edit/add.
  • In the Input JSON field, enter the JSON code. Below is the complete JSON code that we will use to add our annotations. Check out the API docs for more information about PDF.co API endpoints and its samples here.
{
    "async": false,
    "encrypt": true,
    "name": "newDocument",
    "url": "https://bytescout-com.s3-us-west-2.amazonaws.com/files/demo-files/cloud-api/pdf-edit/sample.pdf",
    "annotations": [
        {
            "text": "Testing, one, two, three.",
            "x": 20,
            "y": 480,
            "size": 12,
            "pages": "0-"
        },
        {
            "text": "Testing Clickable Links \r\n(CLICK ME!)",
            "x": 200,
            "y": 170,
            "size": 24,
            "pages": "0-",
            "color": "CCBBAA",
            "link": "https://bytescout.com/"
        },
        {
            "text": "Simple text label (default type)",
            "x": 100,
            "y": 520,
            "size": 12,
            "pages": "0-",
            "type": "Text"
        },
        {
            "text": "sample prefilled text",
            "x": 10,
            "y": 500,
            "size": 12,
            "pages": "0-",
            "type": "TextField",
            "id": "textfield1"
        },
        {
            "x": 100,
            "y": 550,
            "size": 12,
            "pages": "0-",
            "type": "Checkbox",
            "id": "checkbox2"
        },
        {
            "x": 100,
            "y": 570,
            "size": 12,
            "pages": "0-",
            "link": "https://bytescout-com.s3-us-west-2.amazonaws.com/files/demo-files/cloud-api/pdf-edit/logo.png",
            "type": "CheckboxChecked",
            "id": "checkbox3"
        }
    ],
    "images": [
        {
            "url": "https://bytescout-com.s3-us-west-2.amazonaws.com/files/demo-files/cloud-api/pdf-edit/logo.png",
            "x": 350,
            "y": 30,
            "pages": "0"
        },
        {
            "url": "https://bytescout-com.s3-us-west-2.amazonaws.com/files/demo-files/cloud-api/pdf-edit/logo.png",
            "x": 350,
            "y": 100,
            "width": 50,
            "height": 50,
            "pages": "0"
        },
        {
            "url": "bytescout-com.s3-us-west-2.amazonaws.com/files/demo-files/cloud-api/pdf-edit/logo.png",
            "x": 200,
            "y": 250,
            "pages": "0",
            "link": "www.pdf.co"
        }
    ]
}

Configure Custom API To Add Annotation

3. Test & Review

Now, let’s send our Custom API call to PDF.co to Test & Review our data.

Test And Review The Custom API Data

4. Copy & Paste URL to Browser to See Output

A successful test returns a temporary URL to access the generated PDF file. Kindly copy and paste the URL on your browser’s address bar.

PDF.co Successfully Processed The Request

Terrific! We have successfully made a Custom API Call to PDF.co using the /pdf/edit/add endpoint to add annotations to a PDF document.

Output PDF With Annotations
Screenshot of Output PDF File

NOTE: You can set up the next step to save the generated file in Google Drive or Dropbox depending on your requirement.
