PDF to JSON with Bubble API Connector

In this tutorial, we will show you how to use Bubble API Connector to convert PDF into JSON format.

  1. My Template
  2. Create New Template
  3. Open New Template
  4. Start with a Blank Page
  5. Add Design
  6. Add Plugins
  7. Install API Connector
  8. Add Another API
  9. API Connector Configuration
  10. Add Parameters
  11. Initialize Call Result
  12. Add Events
  13. Add Actions
  14. Insert Dynamic Data
  15. Set Destination
  16. Add Source URL
  17. JSON Output

Converted JSON Output
Converted JSON Output

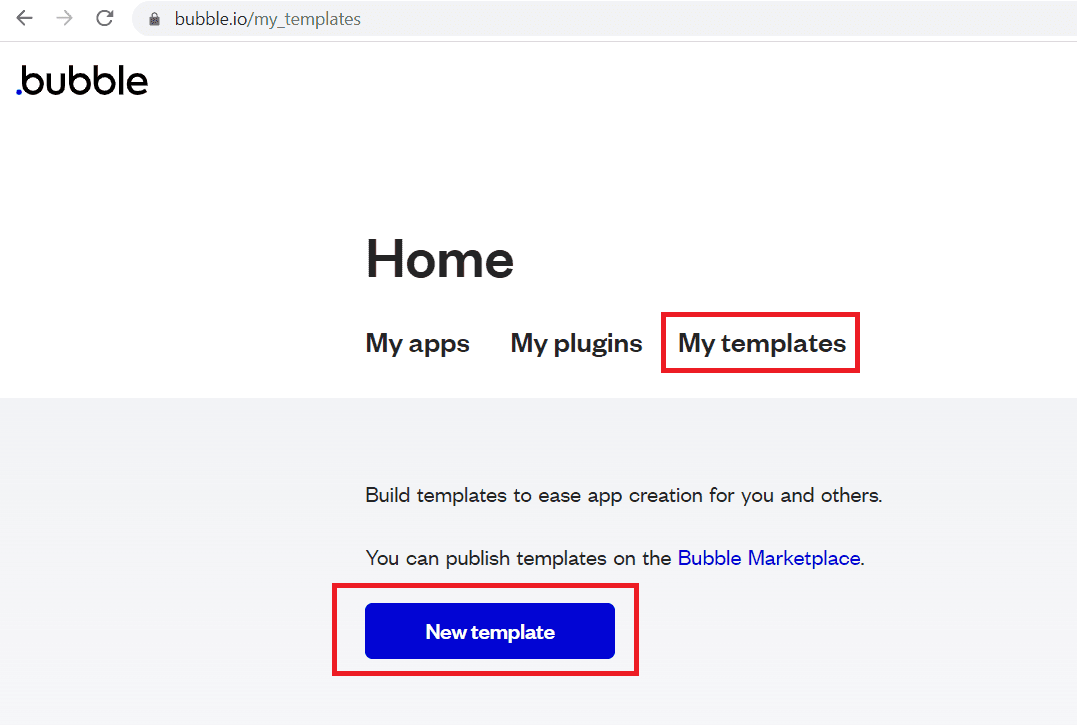

Step 1: My Template

To begin, log in to your Bubble account and click My Templates.

My Template

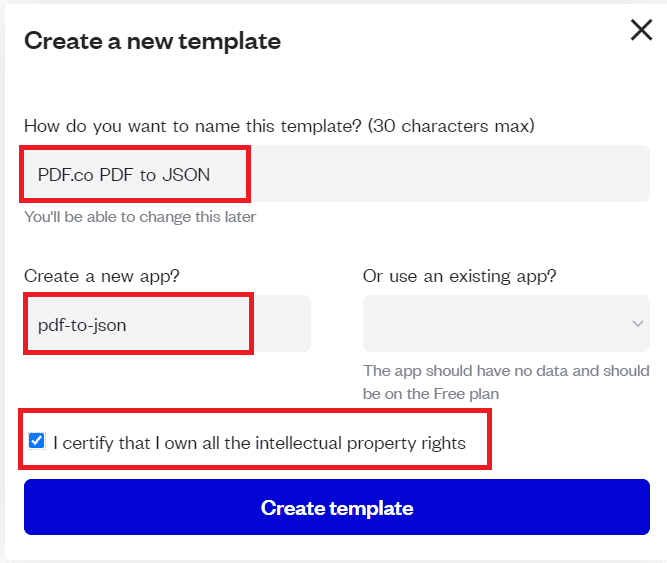

Step 2: Create New Template

Next, fill out the template form to create a new template.

Create New Template

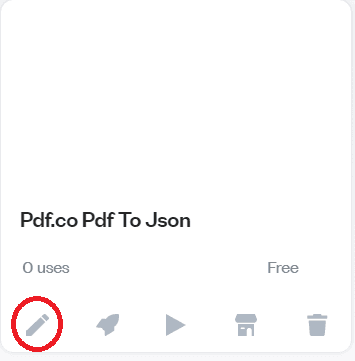

Step 3: Open New Template

Click on the Edit icon to open a new template.

Open New Template

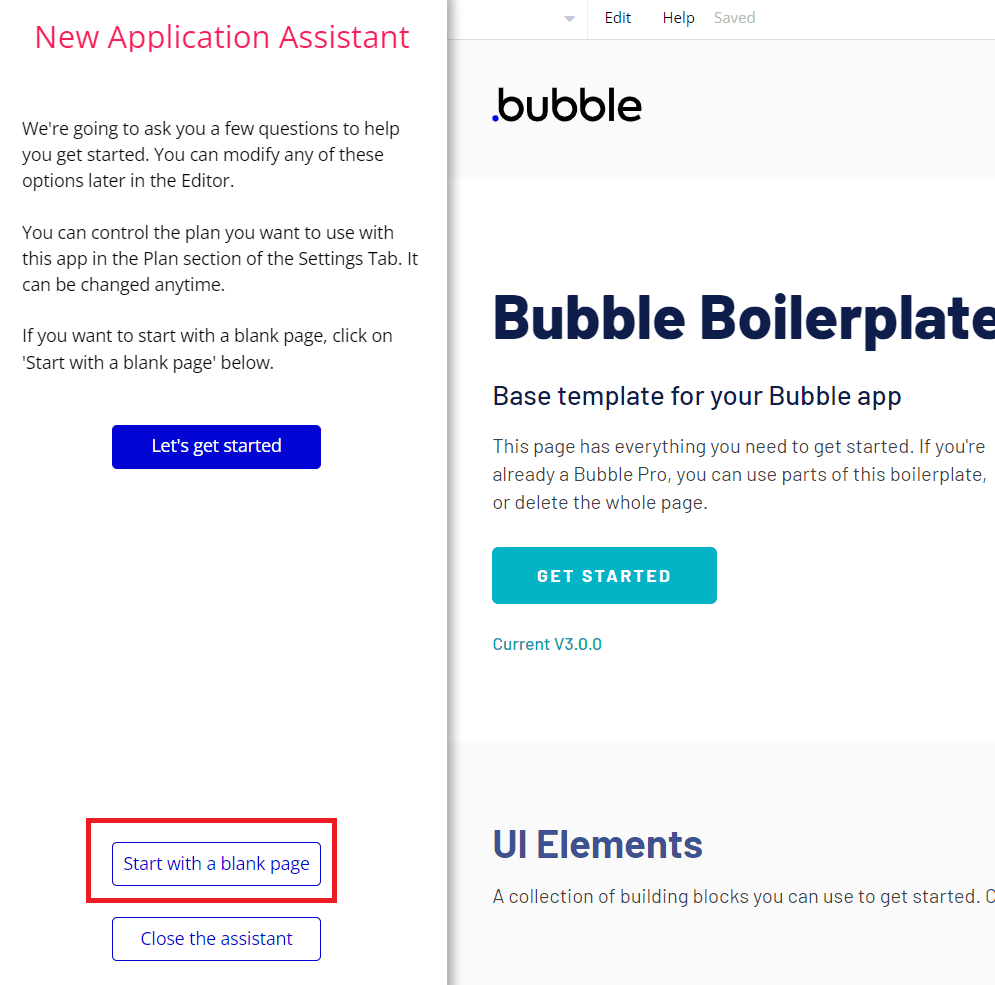

Step 4: Start with a Blank Page

Next, click on the Start with a blank page button and close the assistant.

Start with a Blank Page

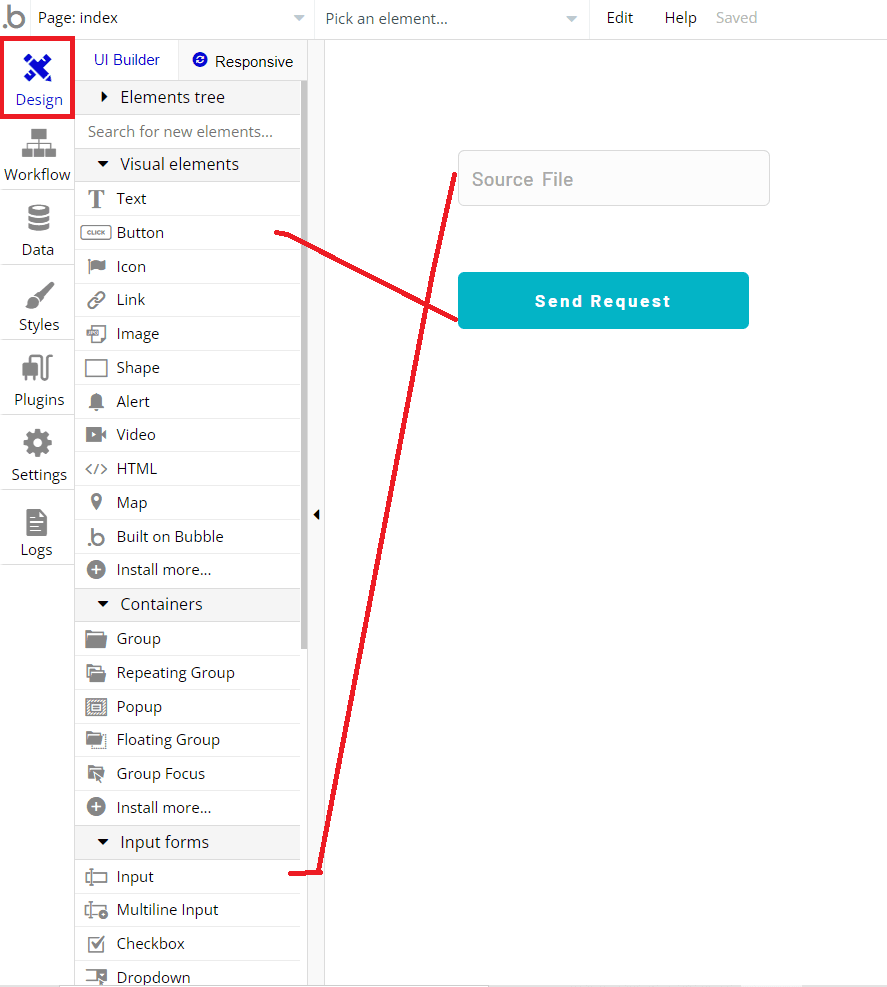

Step 5: Add Design

Let’s add two elements, Input for the source file and a Button to send a request.

Add Design

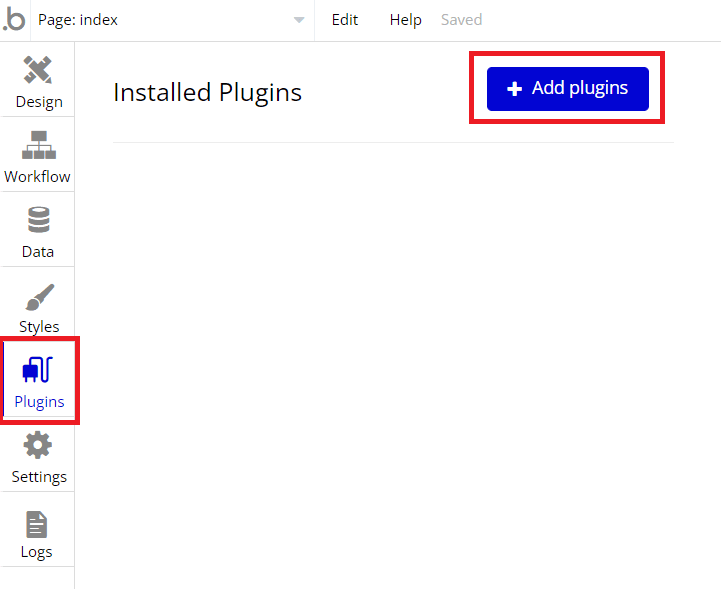

Step 6: Add Plugins

Then, click on the Plugins tab and add plugins.

Add Plugins

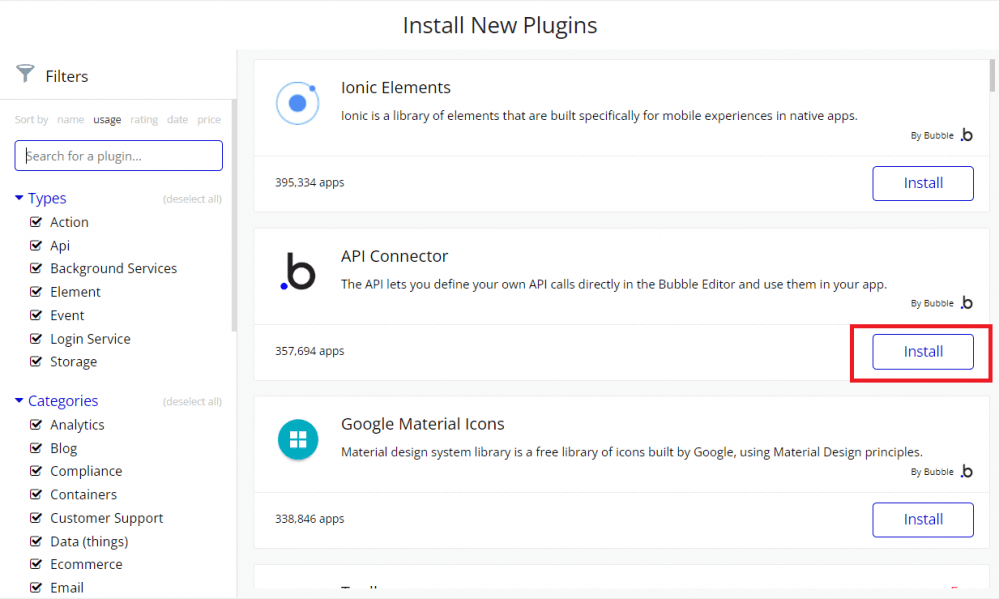

Step 7: Install API Connector

Look for API Connector and click on the Install button.

Install API Connector

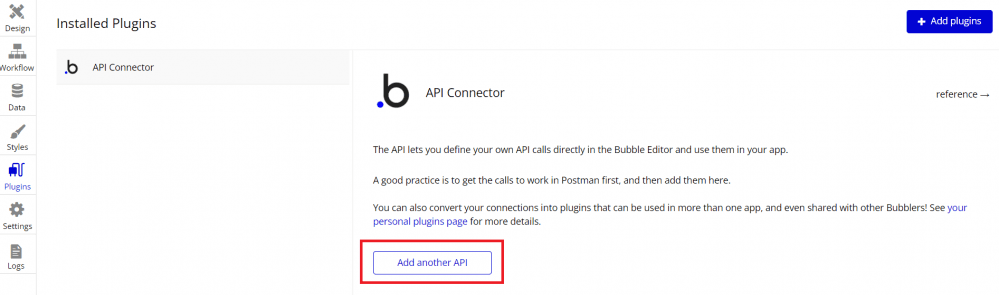

Step 8: Add Another API

After installing the API Connector, click on the Add another API button.

Add Another API

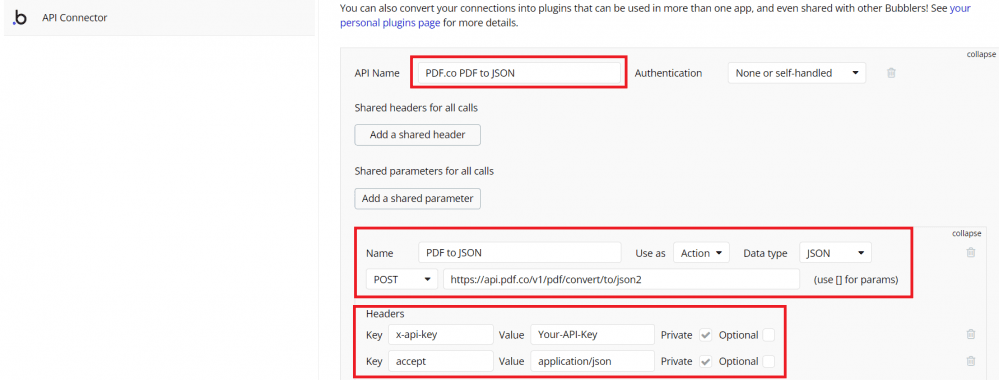

Step 9:API Connector Configuration

Let’s set up the API Connector configuration.

  • In the API Name field, type in your desired API name.
  • In the Name field, type in your preferred name.
  • In the Use as dropdown box, select the Action option.
  • For the Data Type dropdown box, select your preferred Data type.
  • Then, select POST for the method and enter the PDF.co PDF to JSON API endpoint https://api.pdf.co/v1/pdf/convert/to/json2. You can get the PDF.co PDF to JSON API endpoint here.
  • For the Headers, add x-api-key for the Key and enter your PDF.co API Key for the Value. You can get API Key in your PDF.co dashboard here.
  • For the 2nd Key under Headers, add accept and application/json for the Value.

API Connector Configuration

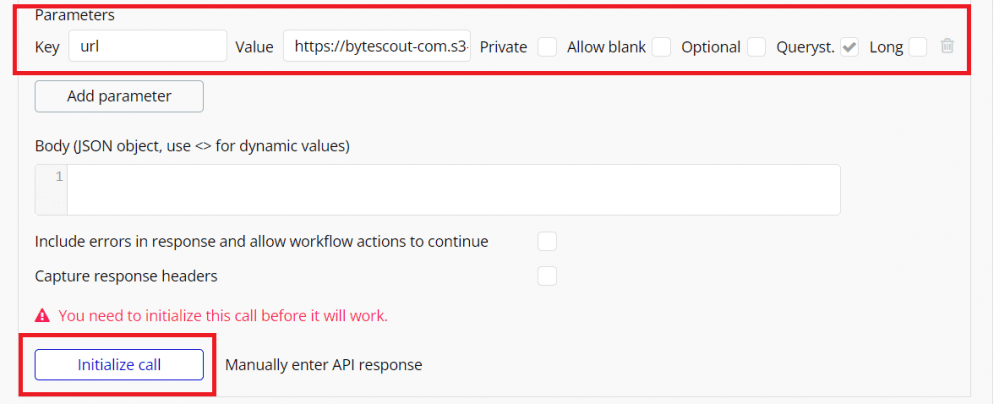

Step 10: Add Parameters

Let’s add the PDF.co PDF to JSON parameters.

  • For the Key field, enter the URL parameter and input the source file URL for the Value. Then, tick on the Queryst checkbox and click on the Initialize Call button.

Add Parameters

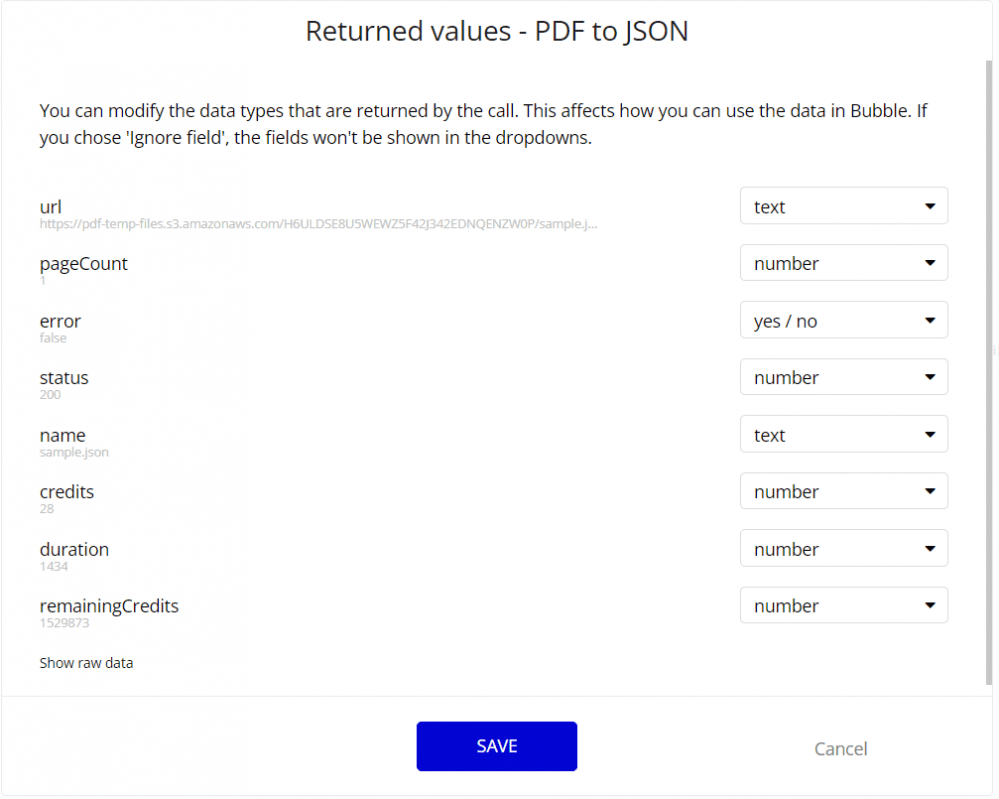

Step 11: Initialize Call Result

Once the API Connector was set up correctly, PDF.co PDF to JSON will return a sample value.

Initialize Call Result

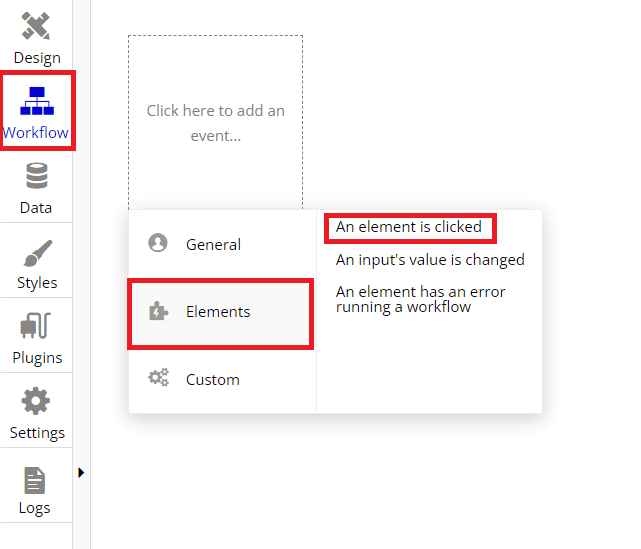

Step 12: Add Events

After saving the returned values, go to the Workflow tab and click on the box to add an event. Then, select the Elements and An element is clicked option.

Add Events

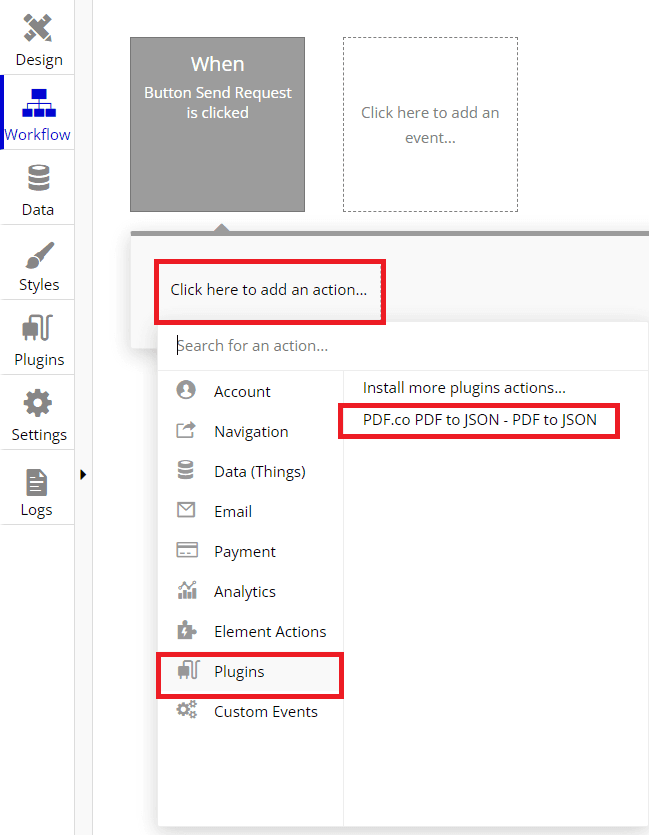

Step 13: Add Actions

Click on the add an action button and select the PDF.co PDF to JSON – PDF to JSON plugins.

Add Actions

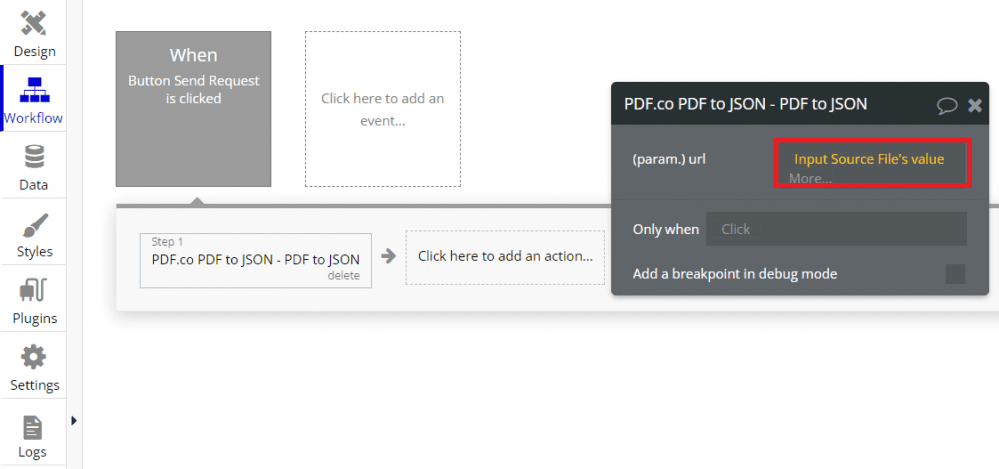

Step 14: Insert Dynamic Data

Let’s insert the Dynamic Data value.

  • In the URL param, select the Input Source File’s value.

Insert Dynamic Data

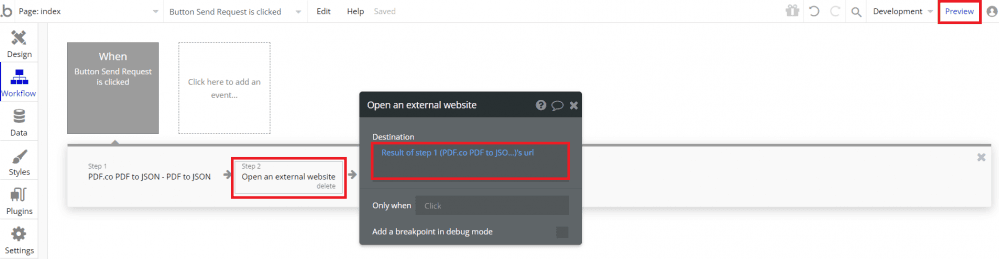

Step 15: Set Destination

Let’s add another action and choose the Open an external website. Then, choose the result of PDF to JSON’s body URL for the Destination field and click the Preview button.

Set Destination

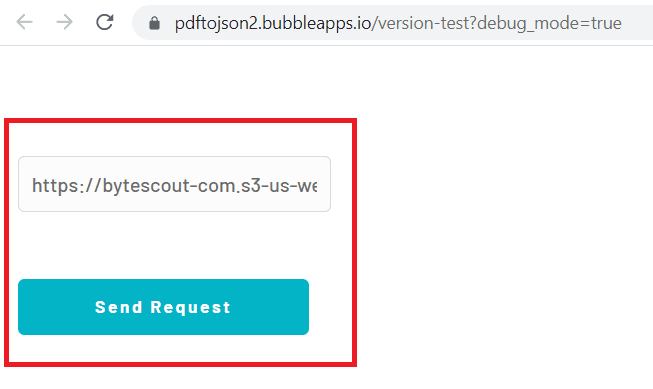

Step 16: Add Source URL

Enter the Source File URL and click the send request button.

Add Source URL

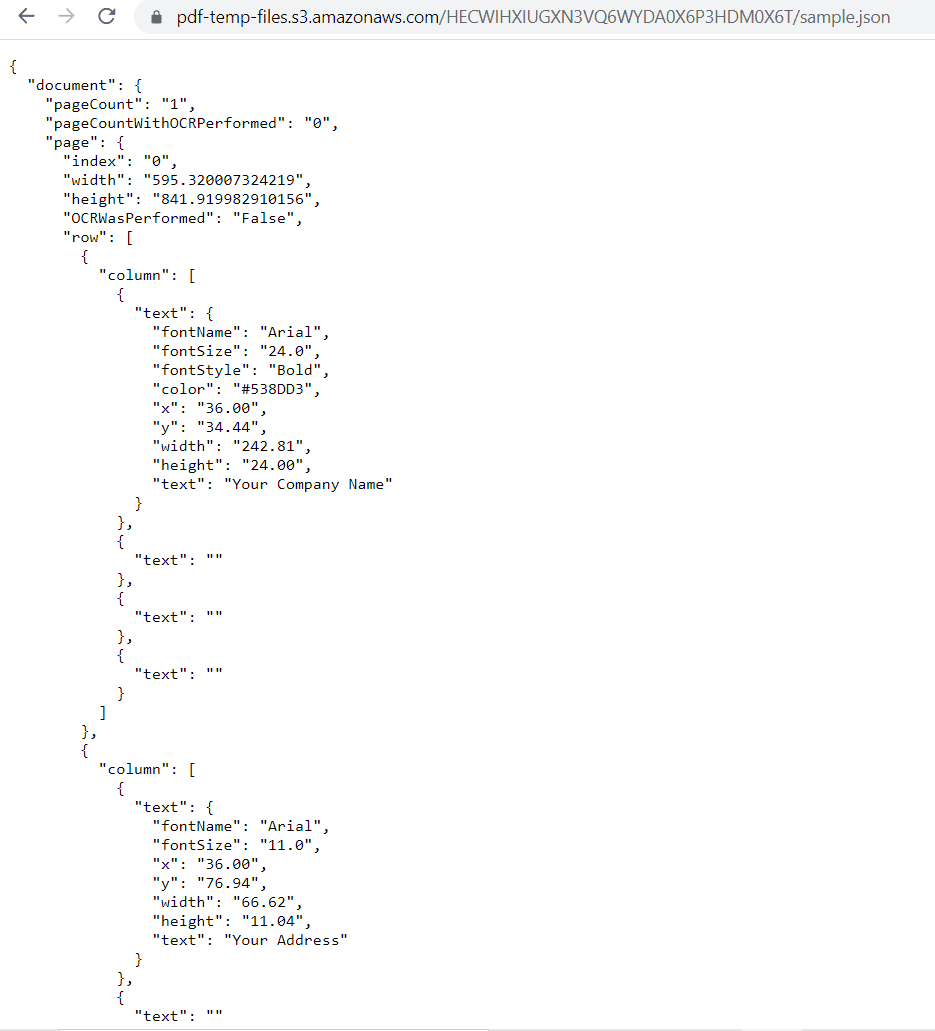

Step 17: Converted JSON Output

Here’s the converted JSON output.

In this tutorial, you learned how to convert PDF to JSON format. You learned how to set up the API Connector to use the PDF.co PDF to JSON Web API in Bubble. You also learned how to configure the Workflow to get dynamic values for conversion.
