Convert PDF Invoice to Google Sheet using PDF.co and Google Apps Script

Input Invoice PDF

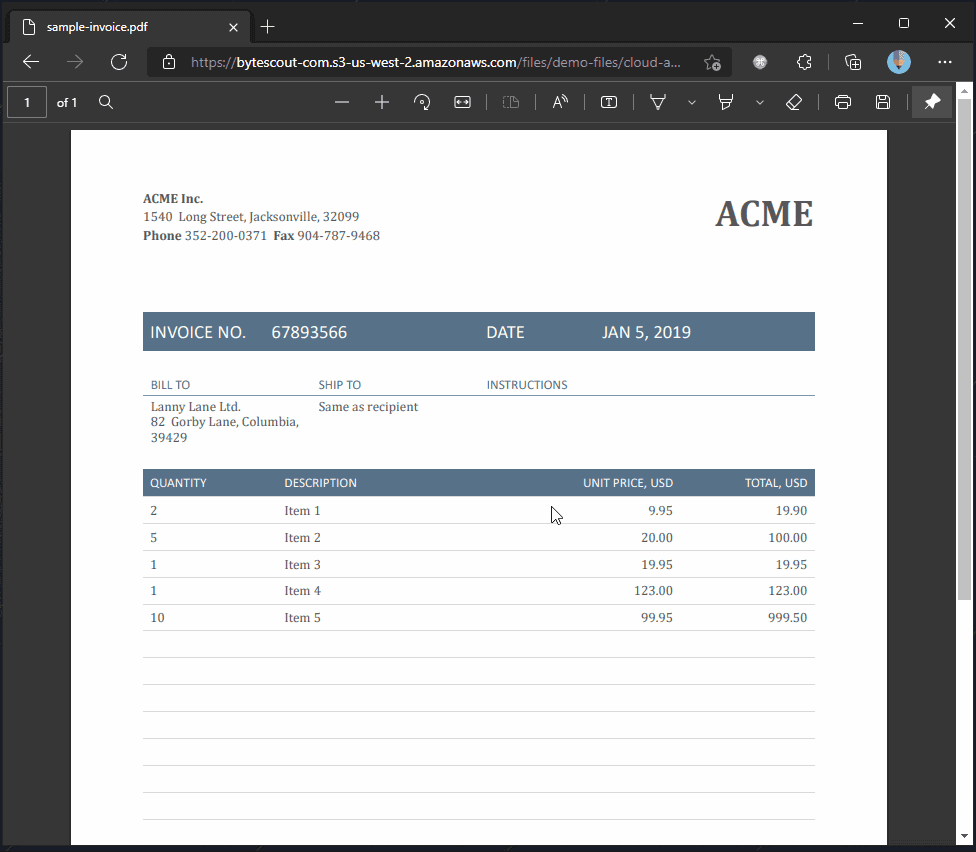

The following image shows the input invoice PDF. The invoice is in a standard format. Furthermore, it contains the most commonly used components such as product/quantity/price-wise information, invoice no, total amount, due date, etc.

Use this link to get a hold of the demo invoice PDF used here.

Output Spreadsheet

The final flow will be like this:

• We have a new menu named “PDF.co”. Inside that sub-menu named “Get Invoice Information”.

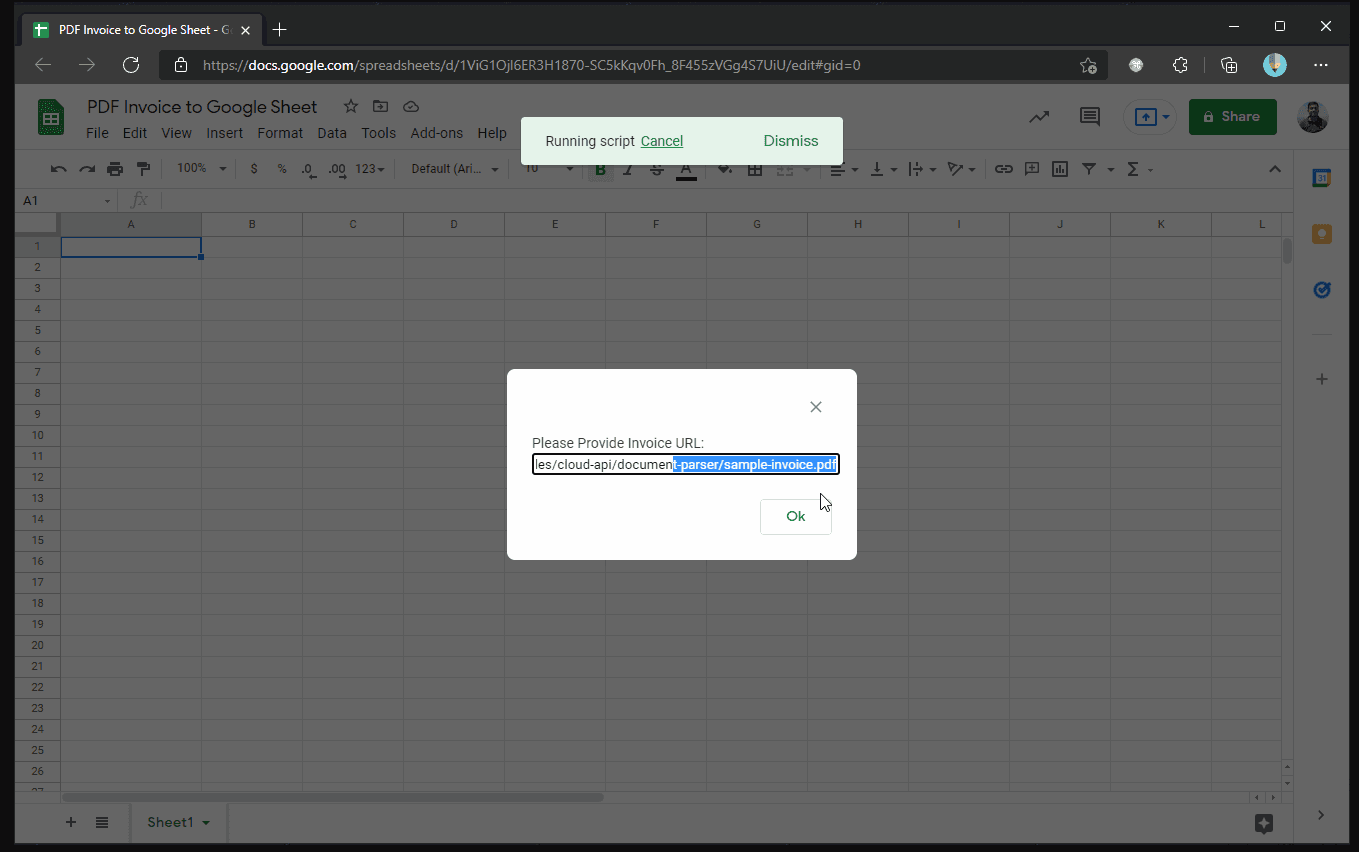

• Now, upon clicking on the “Get Invoice Information” sub-menu, it’ll open a prompt asking for a PDF Invoice URL.

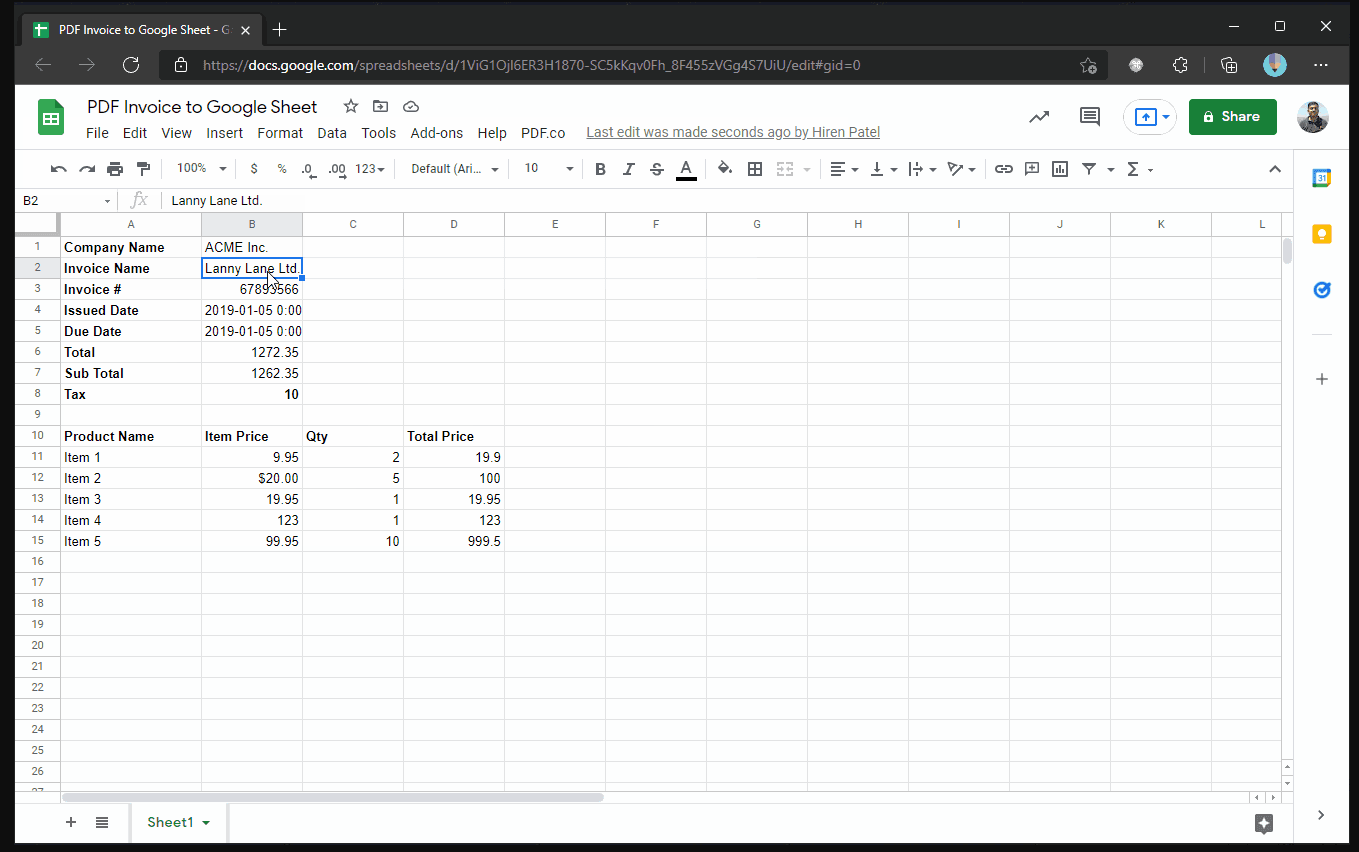

• Finally, after entering the invoice URL it’ll fill Google Sheet with invoice data as shown in the below output image.

Where to Write Code

Now, there are many ways we can customize Google Sheets. However, in our case, we are writing our own source code. Hence, “Script editor” is the place where all action happens.

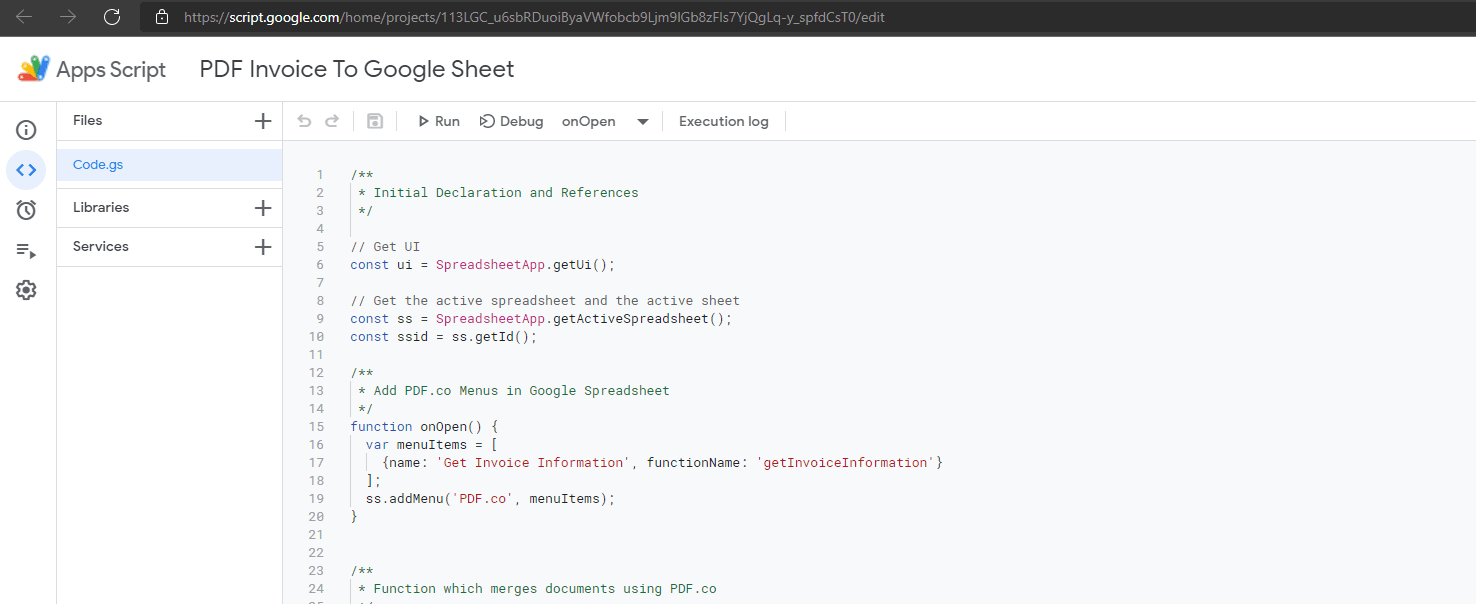

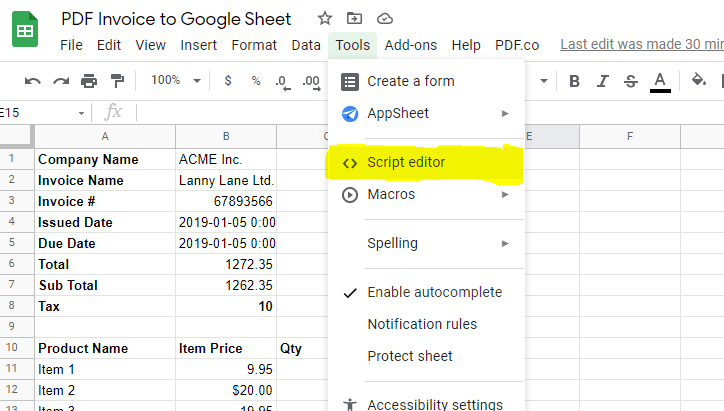

Go to the “Tools -> Script editor” menu. It’ll open a new Script editor project like below. We have to write our source code in this online code file.

You will find this online Code Editor very much useful and interesting. All source code is written in plain JavaScript and we have built-in support for google libraries.

Source Code

Please review the following source code, and we’ll analyze important pieces of it in the next section.

/**
 * Initial Declaration and References
 */

// Get UI
const ui = SpreadsheetApp.getUi();

// Get the active spreadsheet and the active sheet
const ss = SpreadsheetApp.getActiveSpreadsheet();
const ssid = ss.getId();

/**
 * Add PDF.co Menus in Google Spreadsheet
 */
function onOpen() {
  var menuItems = [
    {name: 'Get Invoice Information', functionName: 'getInvoiceInformation'}
  ];
  ss.addMenu('PDF.co', menuItems);
}


/**
 * Function which gets Invoice Information using PDF.co
 */
function getInvoiceInformation() {

  let invoiceUrlPromptResp = ui.prompt("Please Provide Invoice URL:");
  let invoiceUrl = invoiceUrlPromptResp.getResponseText();

  if(invoiceUrlPromptResp.getSelectedButton() == ui.Button.OK && invoiceUrl && invoiceUrl.trim() !== ""){
      // Prepare Payload
      var data = {
        "url": invoiceUrl, //"https://bytescout-com.s3-us-west-2.amazonaws.com/files/demo-files/cloud-api/document-parser/sample-invoice.pdf",
        "outputFormat": "JSON",
        "templateId": "1",
        "async": false,
        "encrypt": "false",
        "inline": "true",
        "password": "",
        "profiles": "",
        "storeResult": false
      };

      // Prepare Request Options
      var options = {
        'method' : 'post',
        'contentType': 'application/json',
        'headers': {
          "x-api-key": "--enter-your-pdf-co-api-key-here--"
        },
        // Convert the JavaScript object to a JSON string.
        'payload' : JSON.stringify(data)
      };

      // Get Response
      // https://developers.google.com/apps-script/reference/url-fetch
      var pdfCoResponse = UrlFetchApp.fetch('https://api.pdf.co/v1/pdf/documentparser', options);

      var pdfCoRespText = pdfCoResponse.getContentText();
      var pdfCoRespJson = JSON.parse(pdfCoRespText);

      // Display Result
      if(!pdfCoRespJson.error){
        // Upload file to Google Drive
        showInvoiceResult(pdfCoRespJson.body);
      }
      else{
        resultUrlCell.setValue(pdfCoRespJson.message);
      }
  }
  else{
    ui.alert("Please Provide Invoice URL");
  }
}

/**
 * Render Invoice Data to Spreadsheet
 */
function showInvoiceResult(invResultBody){
  var cmpName = getObjectValue(invResultBody, "companyName");
  var invName = getObjectValue(invResultBody, "companyName2");
  var invoiceId = getObjectValue(invResultBody, "invoiceId");
  var issuedDate = getObjectValue(invResultBody, "dateIssued");
  var dueDate = getObjectValue(invResultBody, "dateDue");
  var bankAccount = getObjectValue(invResultBody, "bankAccount");
  var total = getObjectValue(invResultBody, "total");
  var subTotal = getObjectValue(invResultBody, "subTotal");
  var tax = getObjectValue(invResultBody, "tax");

  var tableData = getTableData(invResultBody, "table");

  var cellIndex = 1;

  if(cmpName && cmpName !== ""){
    ss.getRange(`A${cellIndex}`).setFontWeight("bold").setValue("Company Name");
    ss.getRange(`B${cellIndex}`).setValue(cmpName);
    cellIndex++;
  }

  if(invName && invName !== ""){
    ss.getRange(`A${cellIndex}`).setFontWeight("bold").setValue("Invoice Name");
    ss.getRange(`B${cellIndex}`).setValue(invName);
    cellIndex++;
  }

  if(invoiceId && invoiceId !== ""){
    ss.getRange(`A${cellIndex}`).setFontWeight("bold").setValue("Invoice #");
    ss.getRange(`B${cellIndex}`).setValue(invoiceId);
    cellIndex++;
  }

  if(issuedDate && issuedDate !== ""){
    ss.getRange(`A${cellIndex}`).setFontWeight("bold").setValue("Issued Date");
    ss.getRange(`B${cellIndex}`).setValue(issuedDate);
    cellIndex++;
  }

  if(dueDate && dueDate !== ""){
    ss.getRange(`A${cellIndex}`).setFontWeight("bold").setValue("Due Date");
    ss.getRange(`B${cellIndex}`).setValue(dueDate);
    cellIndex++;
  }

  if(bankAccount && bankAccount !== ""){
    ss.getRange(`A${cellIndex}`).setFontWeight("bold").setValue("Bank Account");
    ss.getRange(`B${cellIndex}`).setValue(bankAccount);
    cellIndex++;
  }

  if(total && total !== ""){
    ss.getRange(`A${cellIndex}`).setFontWeight("bold").setValue("Total");
    ss.getRange(`B${cellIndex}`).setValue(total);
    cellIndex++;
  }

  if(subTotal && subTotal !== ""){
    ss.getRange(`A${cellIndex}`).setFontWeight("bold").setValue("Sub Total");
    ss.getRange(`B${cellIndex}`).setValue(subTotal);
    cellIndex++;
  }

  if(tax && tax !== ""){
    ss.getRange(`A${cellIndex}`).setFontWeight("bold").setValue("Tax");
    ss.getRange(`B${cellIndex}`).setValue(tax);
    cellIndex++;
  }

  // Render Table
  if(tableData && tableData.length > 0){
    cellIndex++;

    ss.getRange(`A${cellIndex}`).setFontWeight("bold").setValue("Product Name");
    ss.getRange(`B${cellIndex}`).setFontWeight("bold").setValue("Item Price");
    ss.getRange(`C${cellIndex}`).setFontWeight("bold").setValue("Qty");
    ss.getRange(`D${cellIndex}`).setFontWeight("bold").setValue("Total Price");
    cellIndex++;

    for(var iTableData = 0; iTableData < tableData.length; iTableData++){ ss.getRange(`A${cellIndex}`).setValue(tableData[iTableData].prodName); ss.getRange(`B${cellIndex}`).setValue(tableData[iTableData].itmPrice); ss.getRange(`C${cellIndex}`).setValue(tableData[iTableData].qty); ss.getRange(`D${cellIndex}`).setValue(tableData[iTableData].totalPrice); cellIndex++; } } } /** * Get Json Object Value */ function getObjectValue(jsonBody, fieldName){ var oRet = ""; if(jsonBody && jsonBody.objects && jsonBody.objects.length > 0){
    var findObjField = jsonBody.objects.filter(x => x.name === fieldName && x.objectType === "field");
    if(findObjField && findObjField.length > 0){
      oRet = findObjField[0].value;
    }
  }

  return oRet;
}

/**
 * Get Table formatted data from input Json
 */
function getTableData(jsonBody, fieldName){
  var oRet = [];

  if(jsonBody && jsonBody.objects && jsonBody.objects.length > 0){
    var findObjTable = jsonBody.objects.filter(x => x.name === fieldName && x.objectType === "table");
    if(findObjTable && findObjTable.length > 0 && findObjTable[0].rows && findObjTable[0].rows.length > 0){
      var tableRows = findObjTable[0].rows;

      for(var iRow = 0; iRow < tableRows.length; iRow++){
        var qty = tableRows[iRow].column1.value;
        var prodName = tableRows[iRow].column2.value;
        var itmPrice = tableRows[iRow].column3.value;
        var totalPrice = tableRows[iRow].column4.value;

        oRet.push({ qty: qty, prodName: prodName, itmPrice: itmPrice, totalPrice: totalPrice });
      }
    }
  }

  return oRet;
}

Analyze Source Code

We can logically divide source code into the following sections.

• Initial Declaration and References
• Create PDF.co Menu
• Integrate with PDF.co Endpoint
• Render Google Sheet with Invoice dat
