How to Automate Barcode Generation using Zapier and Trello

What is Zapier?

Zapier is an online automation tool that connects your favorite apps, such as Gmail, Slack, Mailchimp, and over 1,500 more. You can connect two or more apps to automate repetitive tasks without coding or relying on developers to build the integration. It’s easy enough that anyone can build their own app workflows with just a few clicks.

Useful resources:

How to get direct/raw links to a file in various storage providers

We prepared this step-by-step tutorial with screenshots on how to set up Zapier using and Trello, to automatically generates barcodes based on Card titles when you add them to a Trello board defined for this task.

Step 1: Add Trello App

      • To get started, choose Trello as the App and the New Card as the Trigger Event.

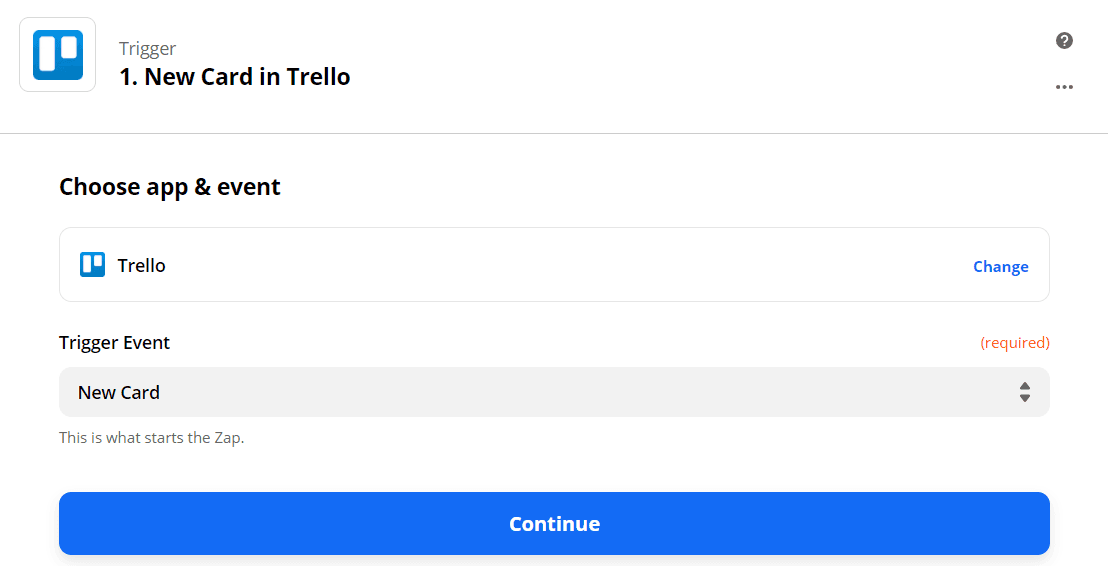

New Card Trigger In Trello

Step 2: Setup Trigger

Next, let’s set up the Trigger with the New Card data.

      • In the Board field, choose the Board name where all the New Cards will be added.
      • In the List field, select the List name that contains the New Card.
      • In the Filter field, you can filter the Card status.

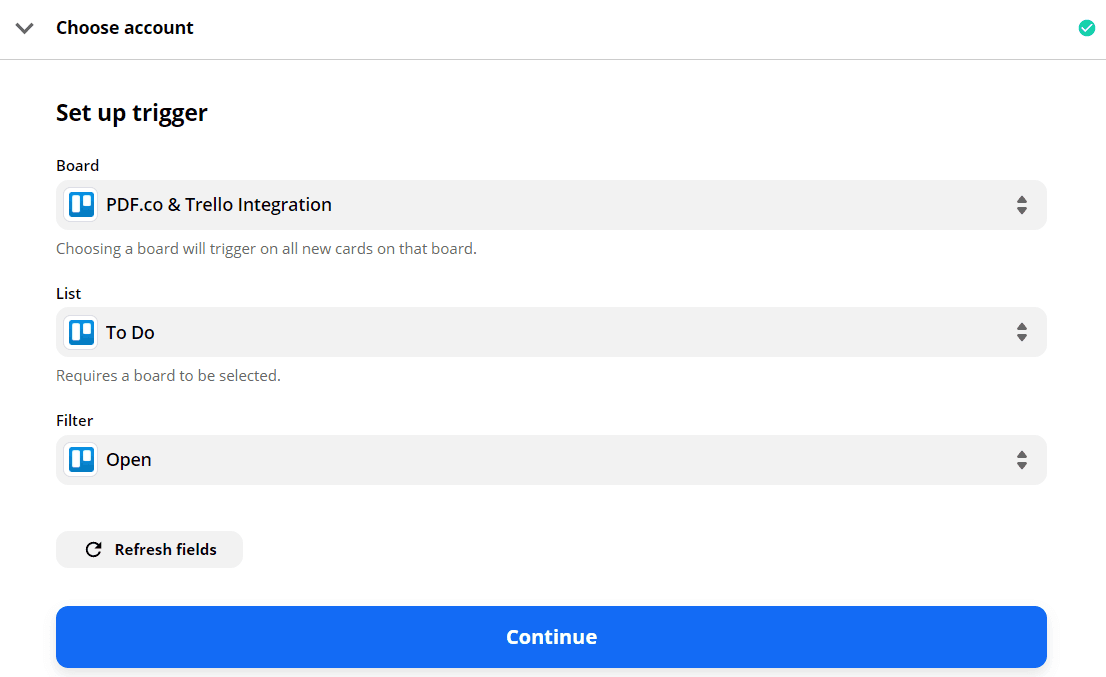

Configure New Card In Trello Data

Step 3: Test Trigger

      • Let’s send our configuration over to Trello to Test & Review.

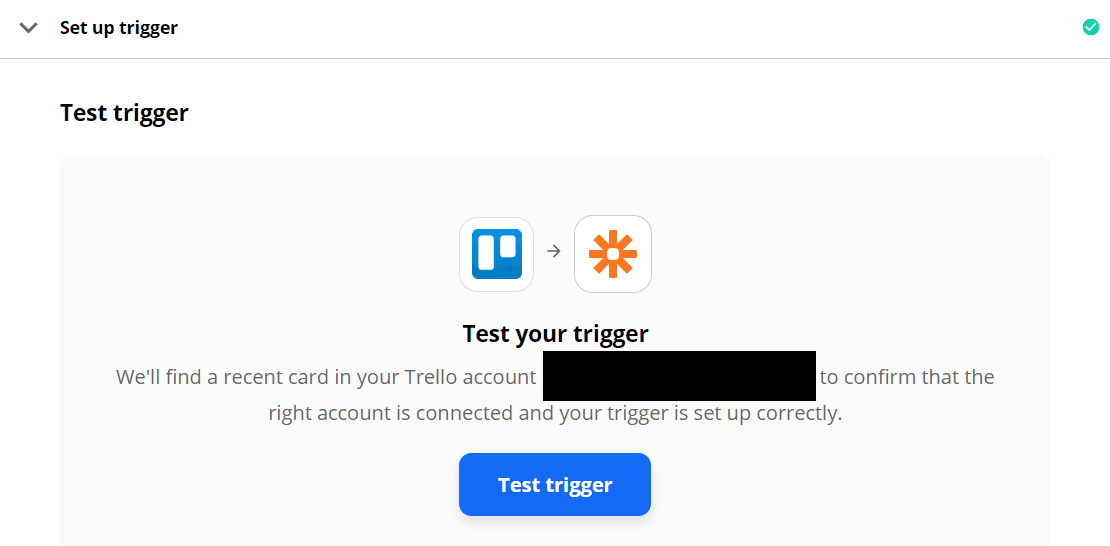

Test The New Card Trigger

Step 4: Test Trigger Result

      • Great! We successfully tested our configuration and found a New Card in Trello.

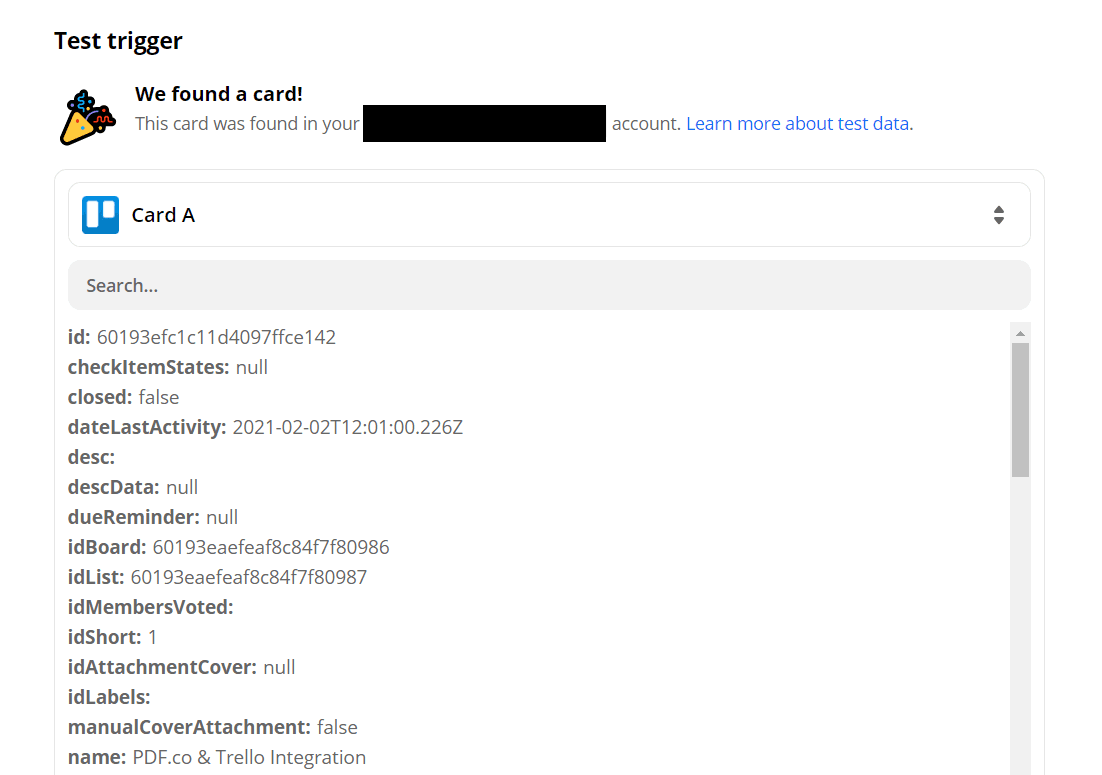

Zapier Successfully Fetched New Card Data

Step 5: Add App

      • Now let’s set up to generate the New Card QR Code. Kindly select as the App and Barcode Generator as the Action Event.

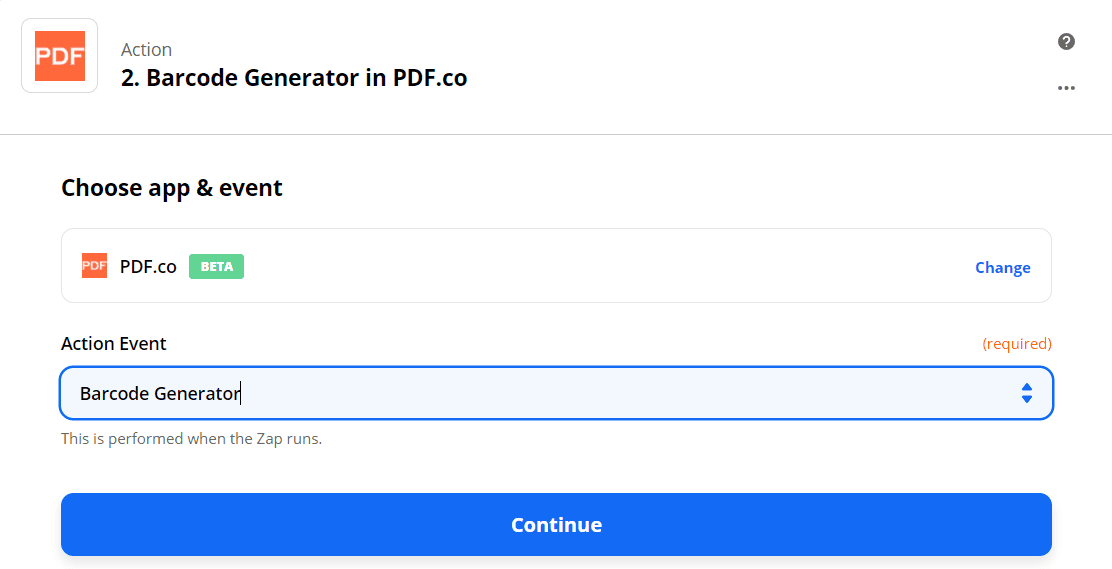

Set Barcode Generator As The Action Step

Step 6:Setup Action

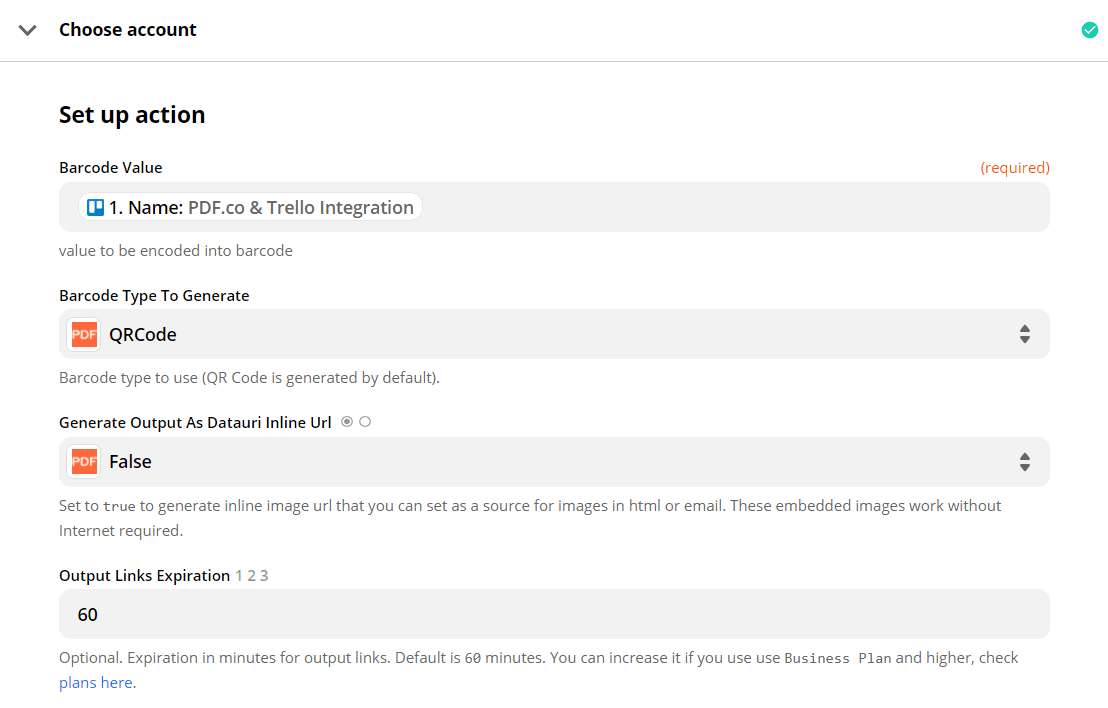

We can now configure the Barcode Generator to take the Trello data.

      • In the Barcode Value field, select the New Card name.
      • In the Barcode Type To Generate field, select QR Code. The Barcode Generator supports several Barcode formats such as Code 128, DataMatrix, PDF417, MaxiCode, and a lot more!

Configure Barcode With Trello Data

Step Test Action

      • We are now ready to send our Barcode Generator configuration to for Test & Review.

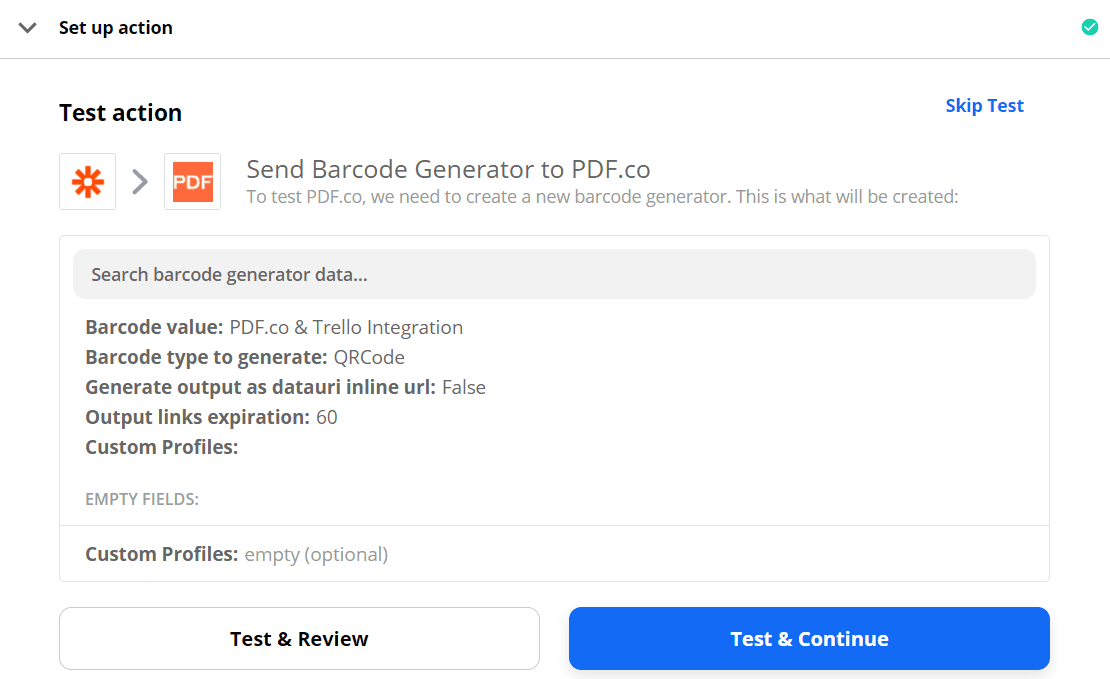

Send Barcode Generator Data To Test And Review

Step Test Result

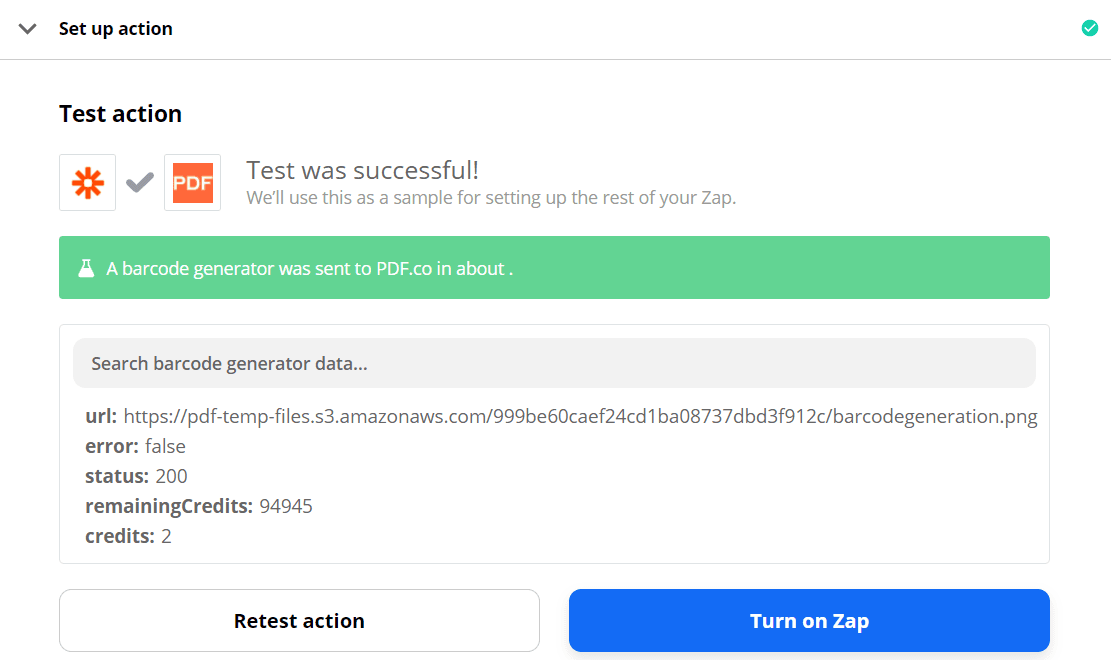

      • Our test was a success! returned a temporary URL to view and download the QR Code. Kindly copy and paste the URL in your browser to see the output. Processed Barcode Request Successfully

Step 9:Generated QR Code

      • Excellent! We have successfully generated a QR Code for the New Card.

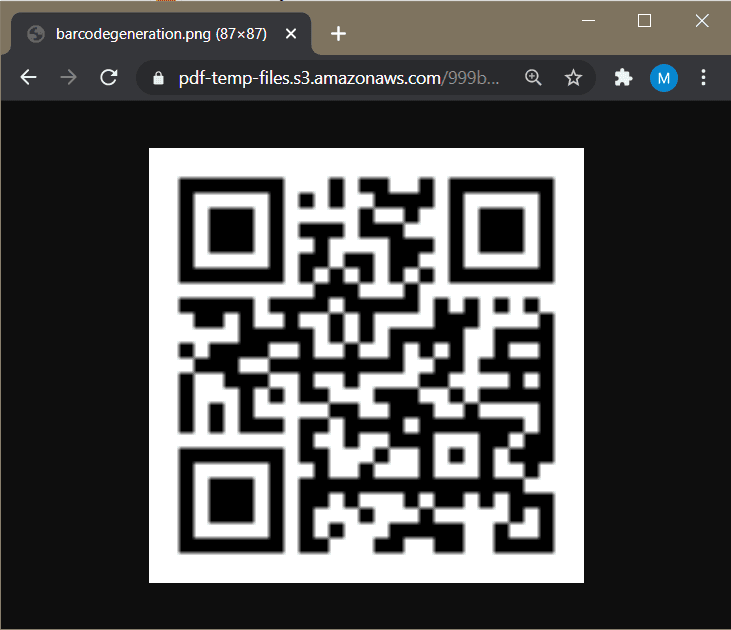

QR Code Generated From Trello's New Card
Screenshot of the QR Code Generated From Trello’s New Card

In this tutorial, we learned how to set up the Trello trigger for New Cards. We also learned how to generate a QR Code and set its value with the New Card’s Name.

Now, you can generate barcodes using Trello, Zapier, and automation.

NOTE: You can set up the next step to save the QR Code in Google Drive or Dropbox depending on your requirement.
