Add New Data Parsed from a PDF to a Row on MySQL

In this tutorial, we will show you how to parse a PDF Invoice using the PDF.co Document Parser Web API. Using PHP, we will add the parsed data as a new record in a database table. We divided this tutorial into three sections. Feel free to explore each part using the table of contents.

Contents

01
Document Parser Template Creation Guide
    02
    PHP Sample Code Walkthrough
      03
      Parse PDF and Fill Database Demo

        Document Parser Template Creation Guide

        We will start this tutorial by creating our template. Kindly go to the Document Parser page in PDF.co and click on the New Template link. Here’s a direct link to the Document Parser Template Editor.


        First, click on the Load Test PDF or Image button to open your document in the editor.

        Add FIELD from TEXT SEARCH

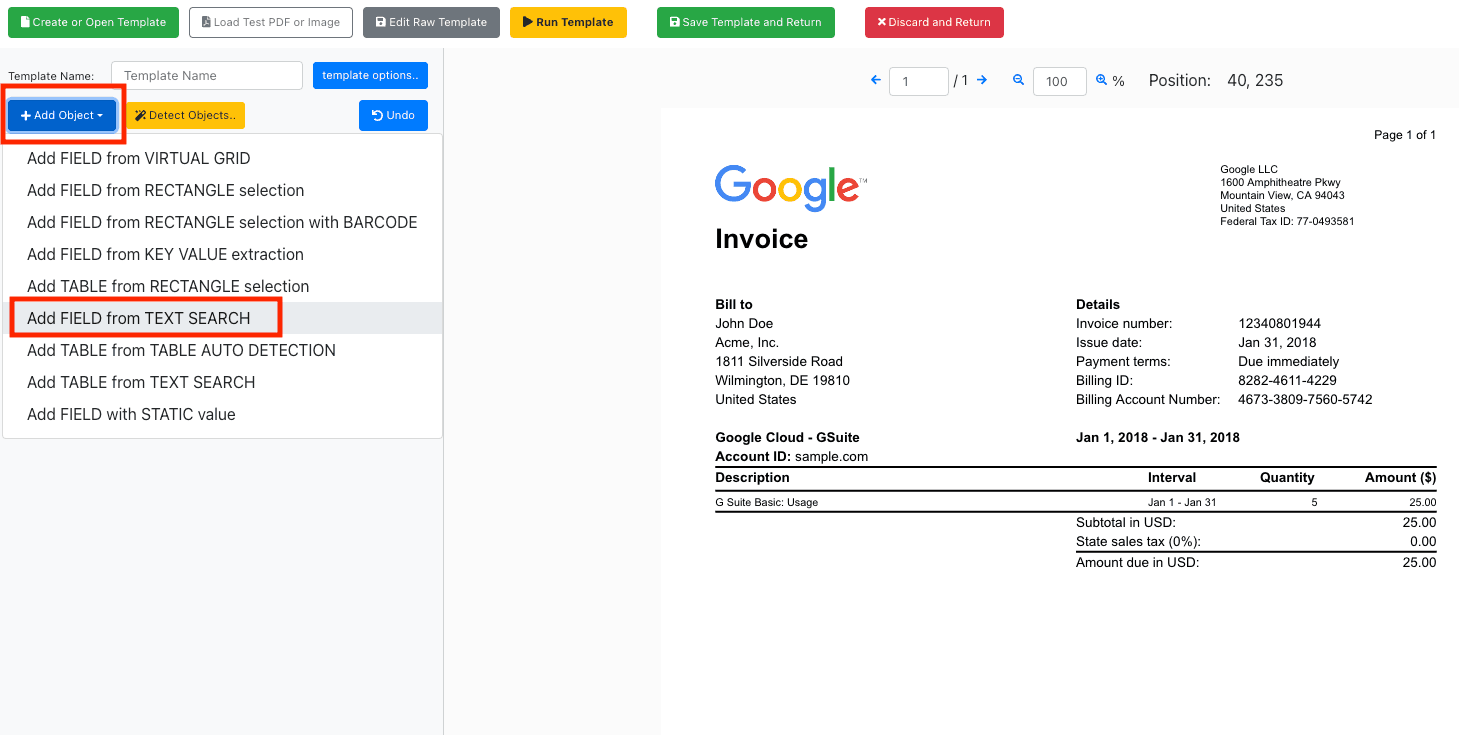

        Then, click on the +Add Object button and select Add FIELD from TEXT SEARCH.

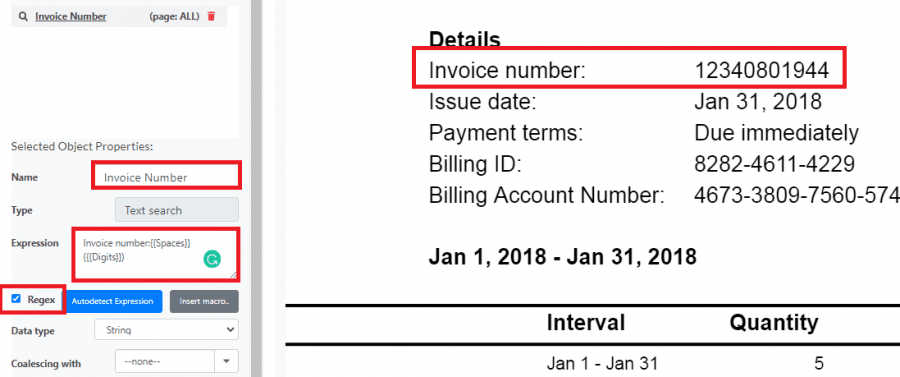

        Let’s get the Invoice number. In the Expression field, enter Invoice number:{{Spaces}}({{Digits}}). Then, check the Regex box.

        Search Invoice Number Using Macros

        Do the same for the Issue Date and Amount Due. To save you time, you can download the template.

        PHP Sample Code Walkthrough

        Let’s explore the PHP sample code and review the parts to add your server and database information. To follow along, here’s the link to the PHP code.

        Database Information

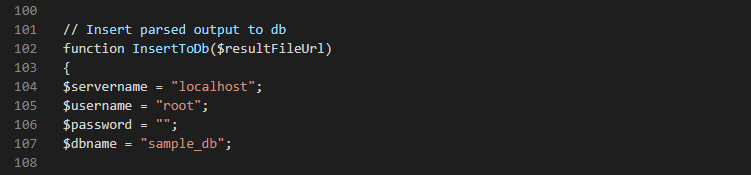

        In the InsertToDb function, you can add your $servername, $username, $password, and $dbname values.

        Database Table Information

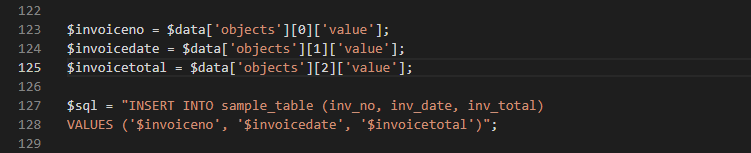

        From lines 123 to 128, you can add your database table and fields information. If you would like to use our default values, you’ll need a database table called sample_table and fields inv_no, inv_date, and inv_total.

        Parse PDF and Fill Database Demo

        We are now ready to run our program. Kindly download the Google.pdf, Google Invoice.json, program.html, and program.php sample files here. Be sure to add your server and database information in the program.php if you’re using different names. Then, move the program.html and program.php files to your /www directory.

        In this demonstration, we will only parse the Invoice Number, Invoice Date, and Amount Due from the Google invoice.

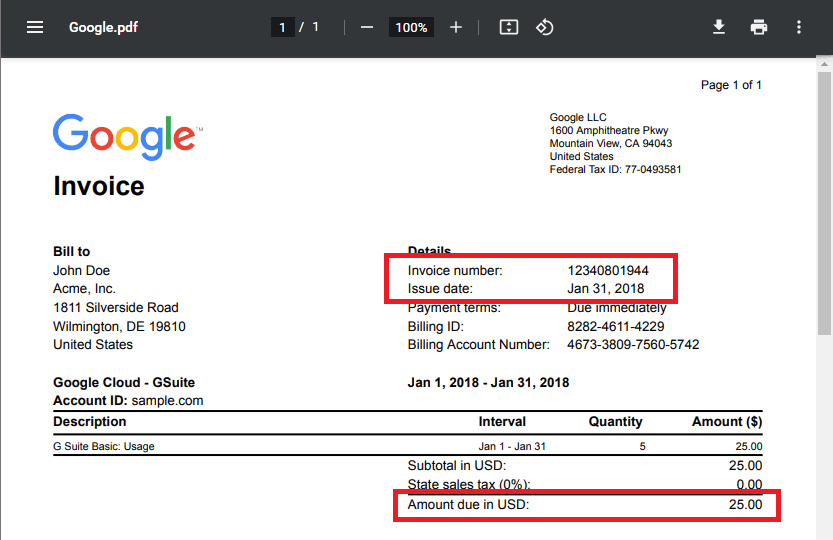

        Sample PDF Invoice
        Sample PDF Invoice

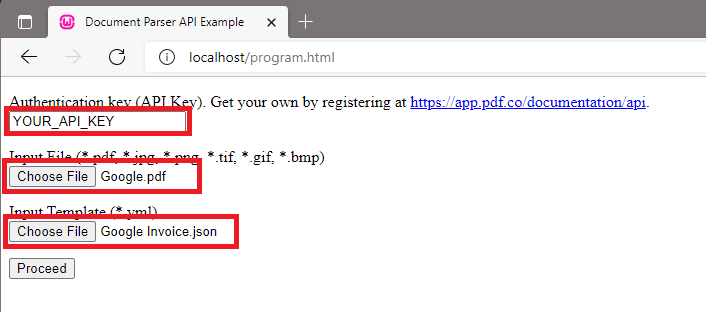

        Kindly open the program.html. Then, enter your API Key and load the PDF Invoice and JSON template. The Document Parser supports both JSON and YML template formats. Then, click the Proceed button.

        Program HTML Interface
        Program.html Interface

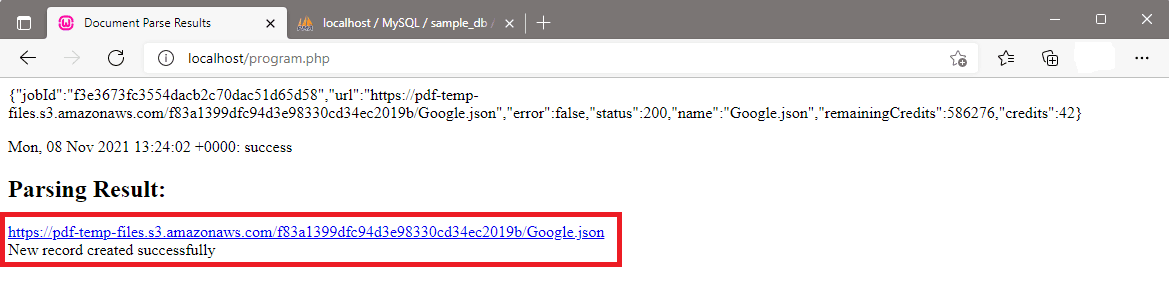

        The program.php page returns the parsing result and confirmation that the parsed data has been added to the database.

        PDF.co Document Parser Output

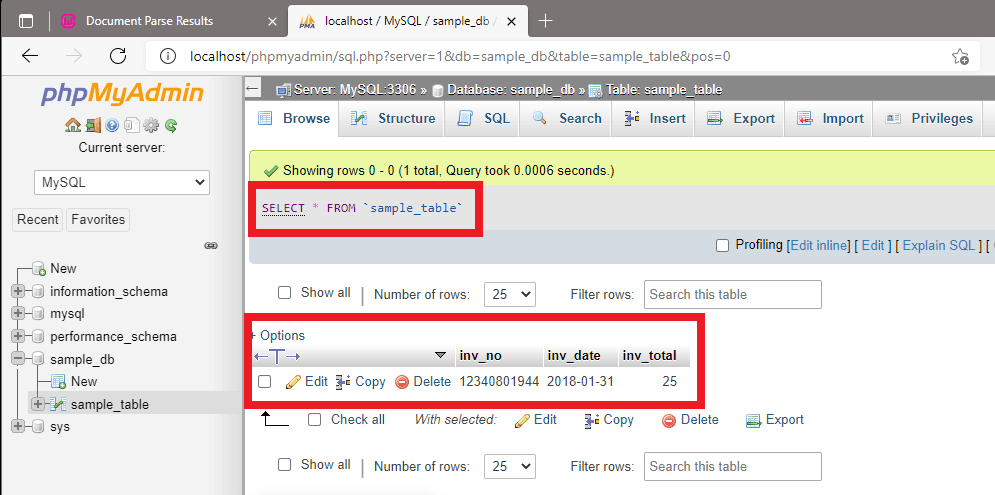

        Our sample_table will now have a new record containing the parsed PDF Invoice data.

        New Recorded Added In Database
        New Record Added In Database

        In this tutorial, you learned how to create a Document Parser template. You reviewed the PHP sample code and added your information. You successfully parsed a PDF Invoice and filled the data into your database.
