Search and Replace Text in a PDF using Bubble API Connector

In this tutorial, we will show you how to search and replace a text inside a PDF using Bubble API Connector.

  1. Open My Templates
  2. Create New Template
  3. Open New Template
  4. Start with a Blank Page
  5. Add Elements
  6. Add Plugin
  7. Install API Connector
  8. Add API
  9. Set up API Connector
  10. Add Parameters
  11. Initialize Call Result
  12. Add Event
  13. Add Action
  14. Map Dynamic Values
  15. Set Destination
  16. Preview
  17. Search and Replace Text
  18. Edited PDF Result

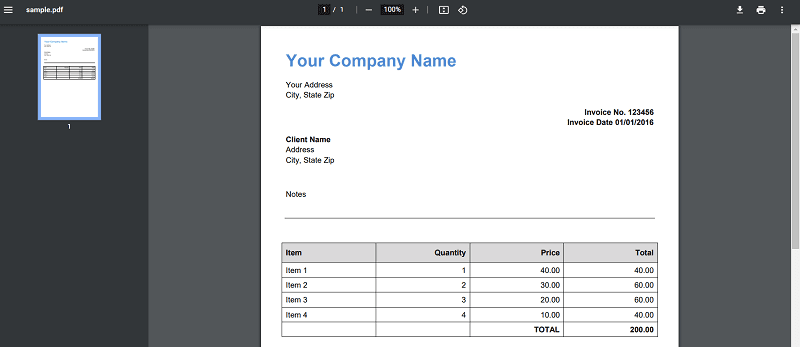

We will use this sample PDF for this tutorial. We will replace the Your Company Name with XYZ LLC.

Screenshot of the Source PDF
Screenshot of the Source PDF

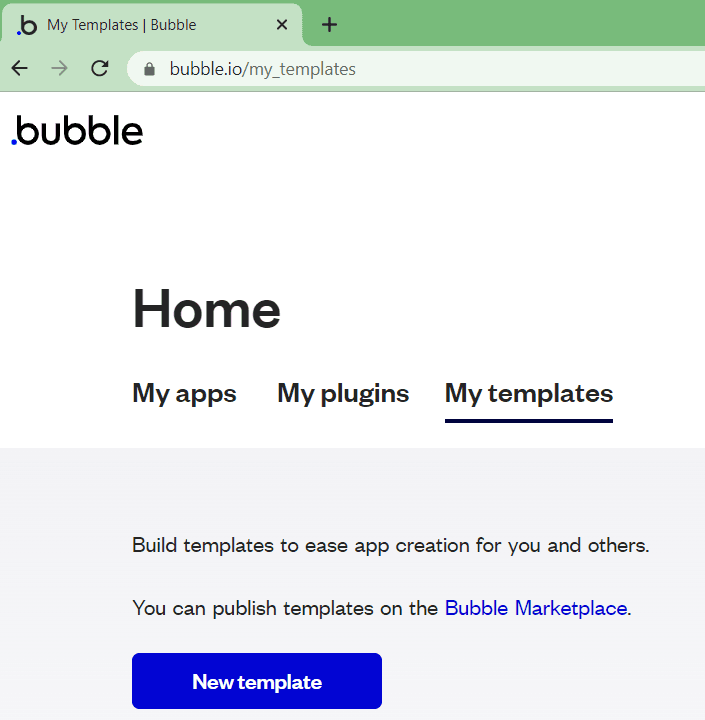

Step 1 – Open My Templates

To get started, go to the My templates tab and click on the New Template button.

Open My Templates

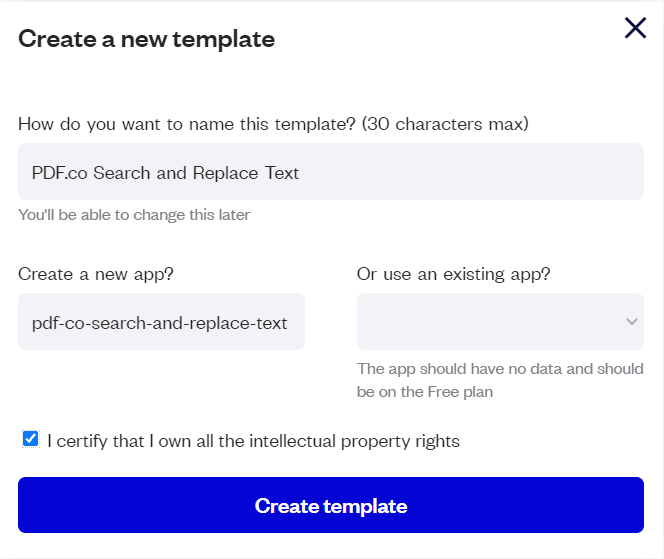

Step 2 – Create New Template

Fill out the template creation form and click on Create template.

Create New Template

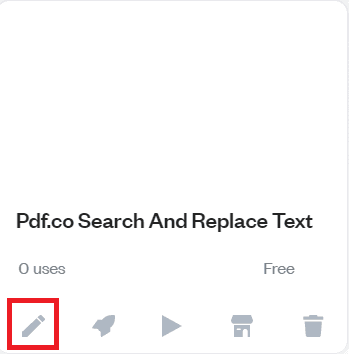

Step 3 – Open New Template

Now, click on the Edit icon to open the template.

Open New Template

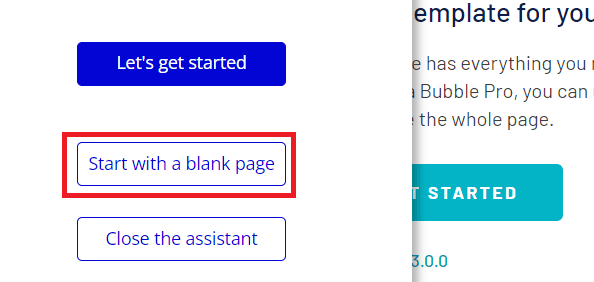

Step 4 – Start with a Blank Page

Click on the Start with a blank page button and close the assistant.

Start with a Blank Page

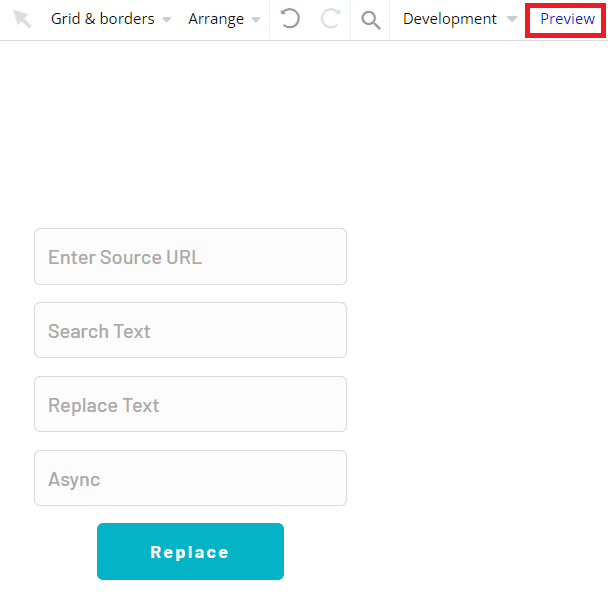

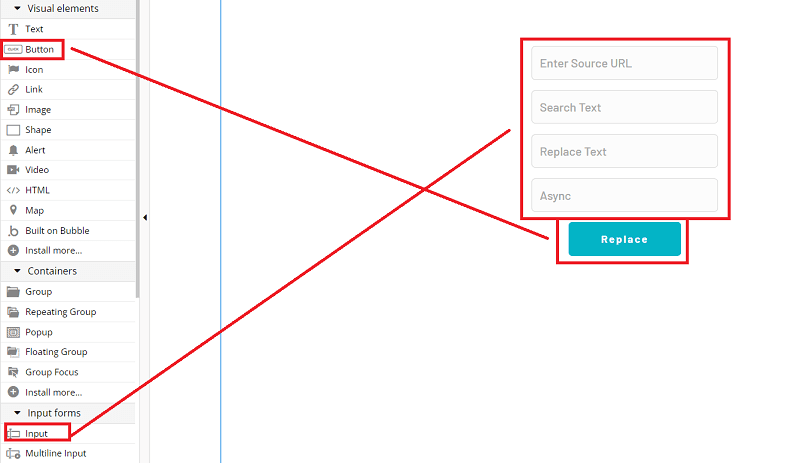

Step 5 – Add Elements

Let’s add four input elements for the Source File, Search Text, Replace Text, and Async and a button to submit the request.

Add Elements

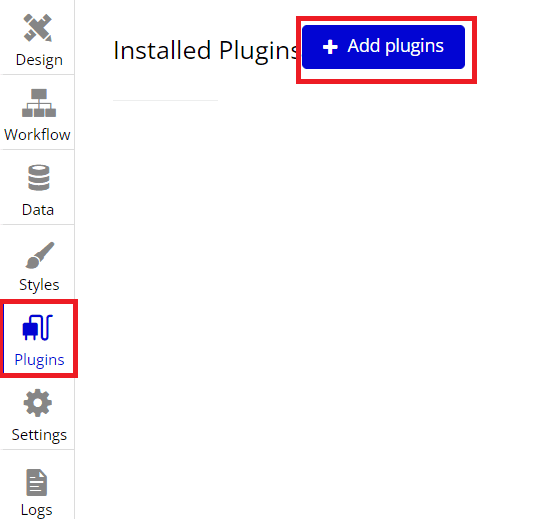

Step 6 – Add Plugin

Let’s go to the Plugins tab and add a plugin.

Add Plugin

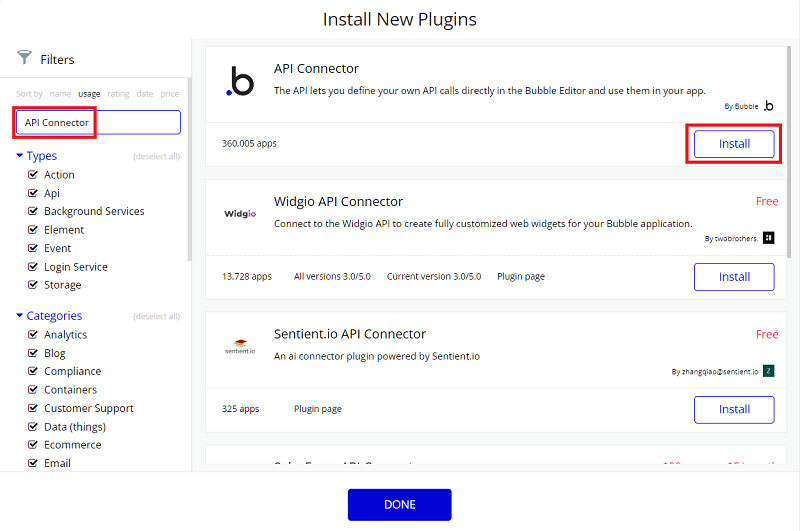

Step 7 – Install API Connector

Look up the API Connector and click on the Install button.

Install API Connector

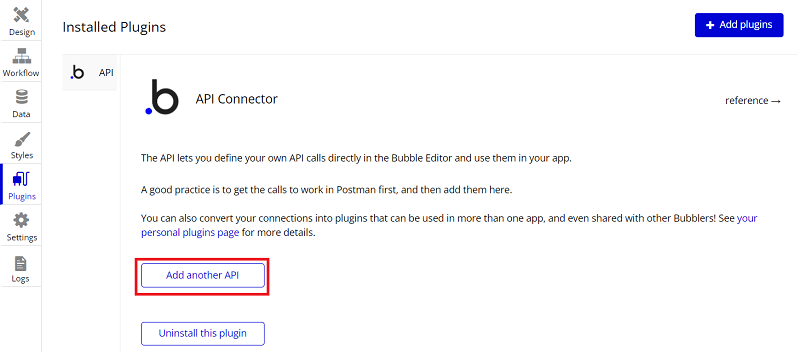

Step 8 – Add API

Once the API Connector is installed, click on the Add another API button.

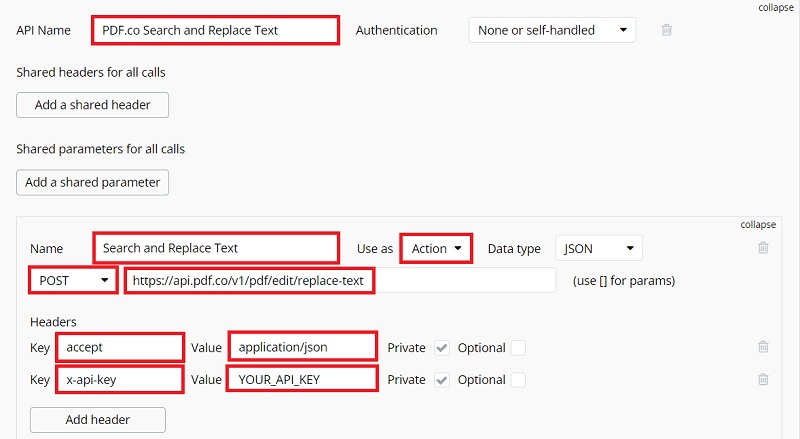

Step 9 – Set up API Connector

Let’s configure the API Connector.

  • In the API Name field, type in Search and Replace Text or your preferred API Name.
  • In the Name field, enter Search and Replace Text or your preferred Name.
  • In the Use as dropdown box, select the Action option.
  • In the Data type dropdown box, leave it to the default JSON or choose your preferred Data type.
  • Select POST and enter the Editor Web API endpoint You can find more information about the API here.
  • Under Headers, add x-api-key as the Key with your API Key as the Value. You can get your API Key here.
  • Also under Headers, add accept as the Key and application/json as the Value.

Setup API Connector

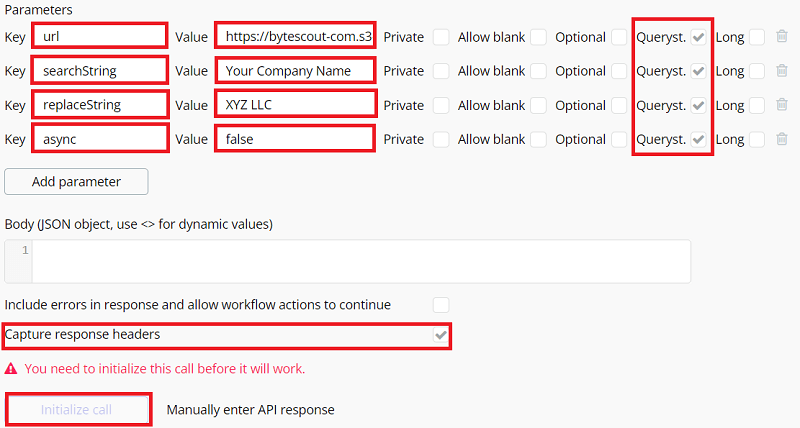

Step 10 – Add Parameters

Let’s add the Search and Replace Text parameters.

  • In the first Key field, enter the URL parameter, and the value  and tick off the Queryst check box.
  • In the second Key field, type in the searchString parameter, the value Your Company Name, and tick off the Queryst check box.
  • In the third Key field, type in the replaceString parameter, the value XYZ LLC, and tick off the Queryst check box.
  • In the fourth Key field, type in the async parameter, the value false, and tick off the Queryst check box.
  • Add a checkmark to the Capture response headers check box and click on the Initialize call button.

Add Parameters

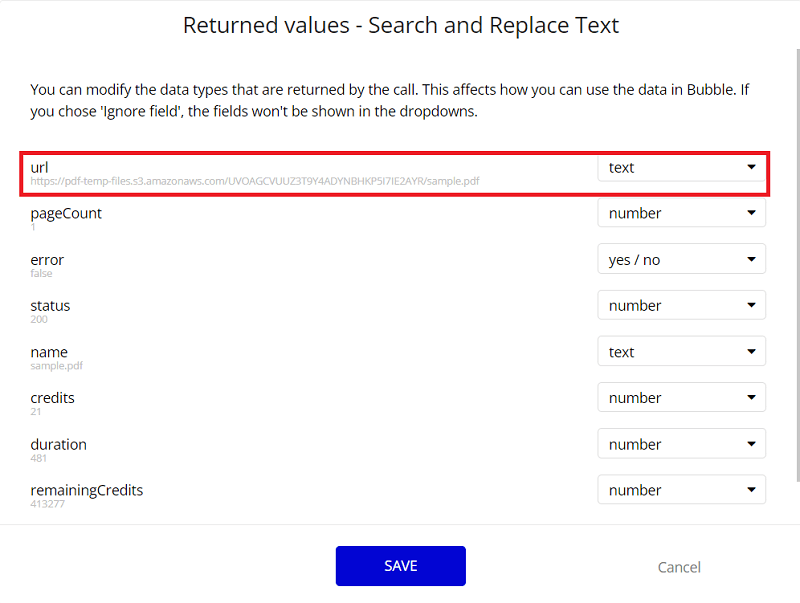

Step 11 – Initialize Call Result

When the API Connector is set up correctly, PDF Editor will return the sample values below.

Initialize Call Result

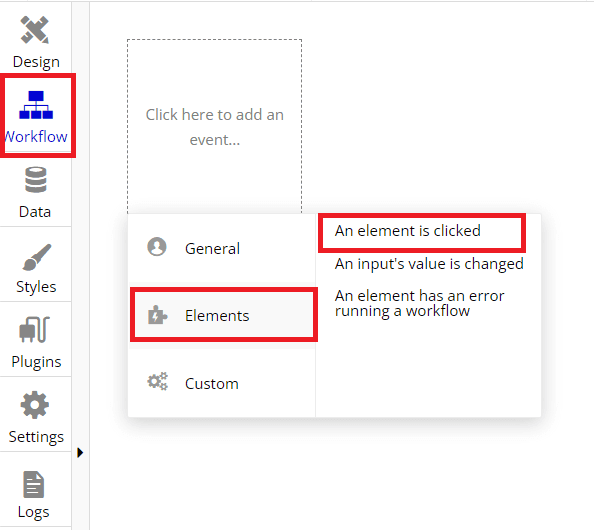

Step 12 – Add Event

Now, go to the Workflow tab and click on the box to add an event. Select the Elements, and An element is clicked options.

Add Event

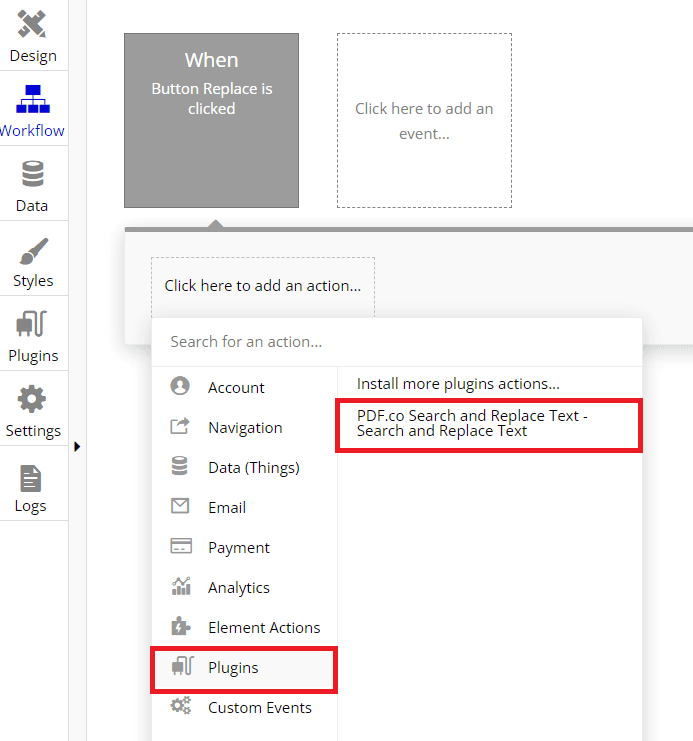

Step 13 – Add Action

Click on the add an action button and choose the Search and Replace Text – Search and Replace Text plugin.

Add Action

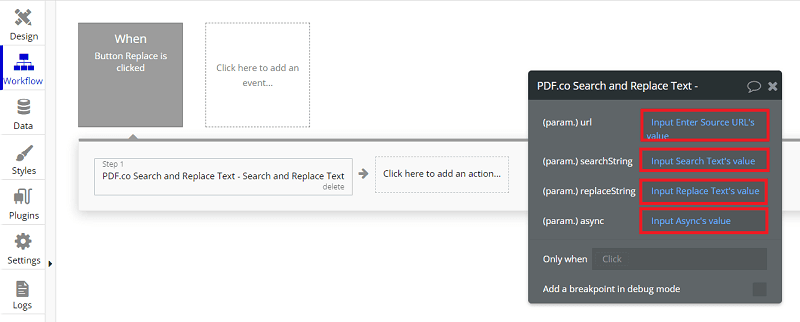

Step 14 – Map Dynamic Values

Let’s map the Input elements’ dynamic values with the PDF Editor parameters.

  • In the url field, select the Input Enter Source URL’s value.
  • In the searchString field, select the Input Search Text’s value.
  • In the replaceString field, select the Input Replace Text’s value.
  • In the async field, select the Input Async’s value.

Map Dynamic Values

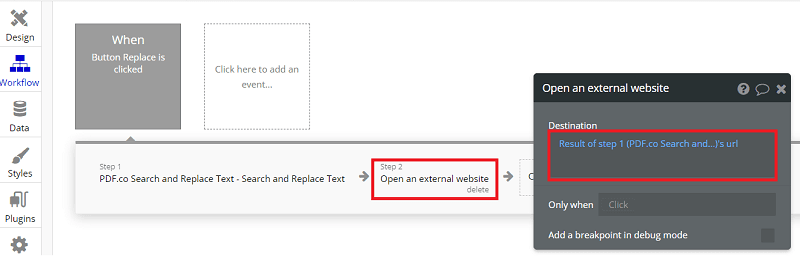

Step 15 – Set Destination

Now, select the Open an external website in the next step and choose the Search and Replace Text’s body URL result in the Destination field.

Set Destination

Step 16 – Preview

Click on the Preview button.

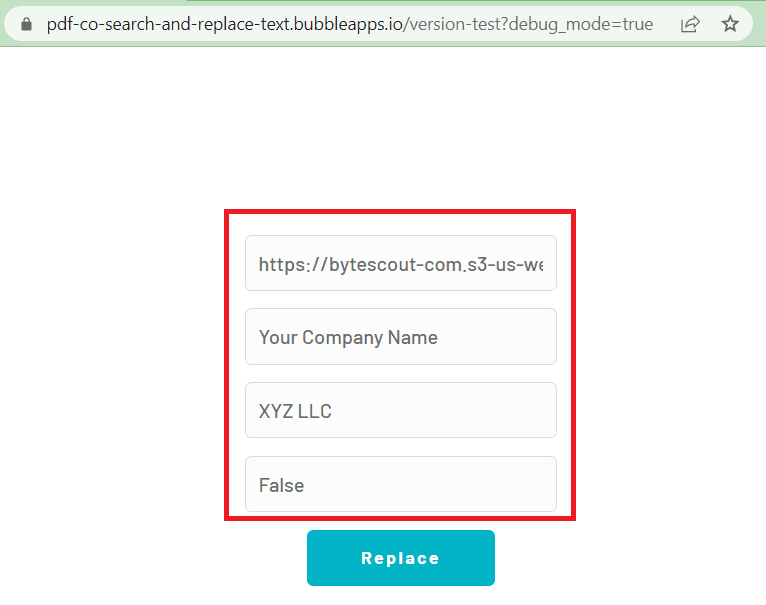

Step 17 – Search and Replace Text

Enter the sample PDF link, text to search, text to replace, and async value. Then, click the Replace button.

Search and Replace Text

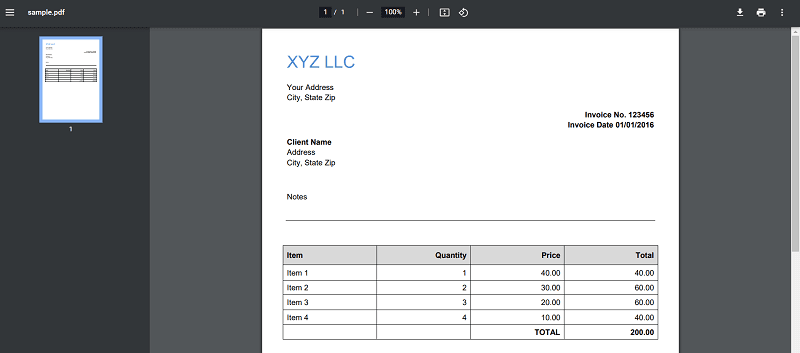

Step 18 – Edited PDF Result

Here’s what the Edited PDF output looks like.

Screenshot of the Output PDF
Screenshot of the Output PDF

In this tutorial, you learned how to search and replace a text inside a PDF. You learned how to set up the API Connector to use the Search and Replace Text Web API in Bubble. You also learned how to configure the Workflow to get dynamic values for editing PDF.
