How to Split a Multi-Page PDF Invoice and Extract Data using Zapier

Step 1: Google Drive New File in Folder

Use the Google Drive New File in Folder option to select the specific PDF file containing the multiple invoices that you need to process.

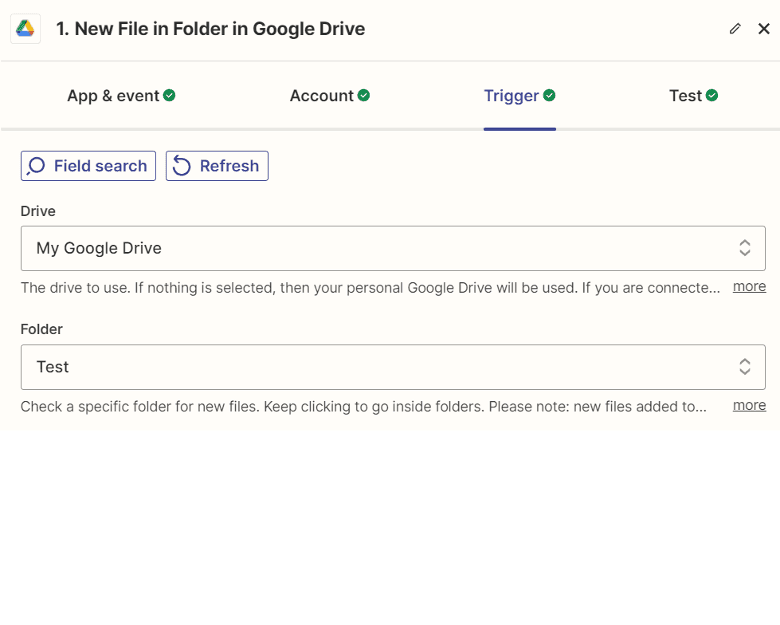

Step 2: Setup Google Drive Configuration

• Select My Google Drive as the drive to be used for this automation.
• Choose the specific folder within your Google Drive where the PDF file containing the multiple invoices is located.

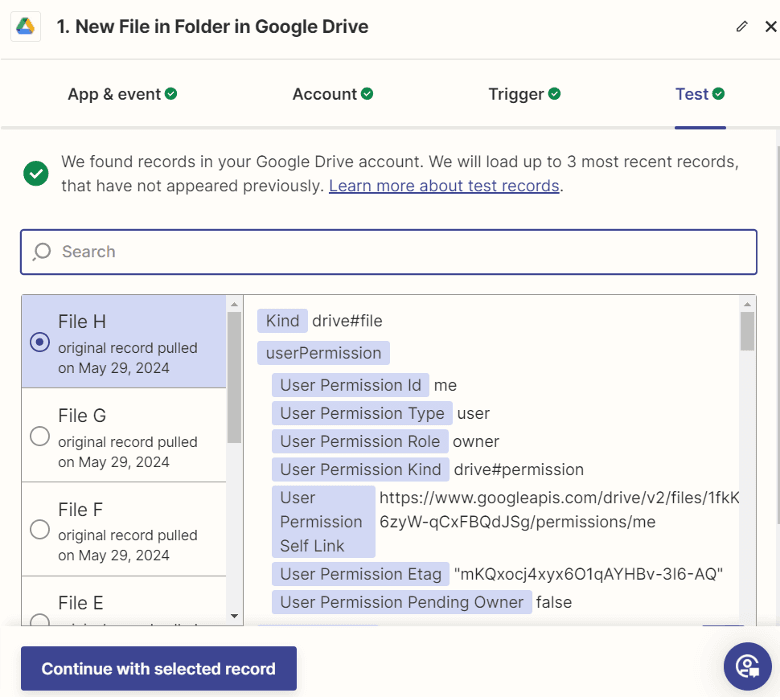

Step 3: Test Trigger

Test trigger to access the specific file in your Google Drive folder.

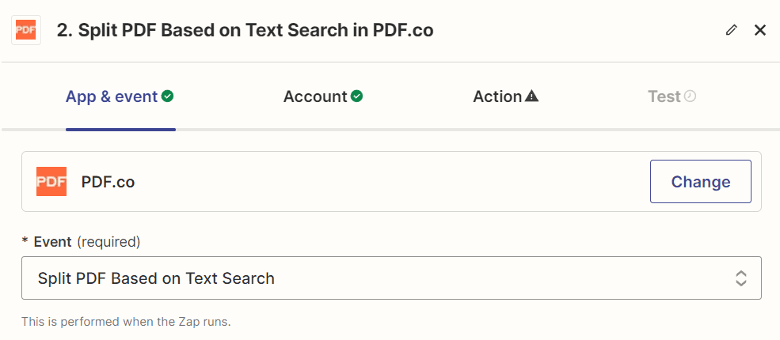

Step 4: Add PDF.co App

Add the PDF.co app and the Split PDF Based on Text Search feature to split the PDF invoice into individual invoices.

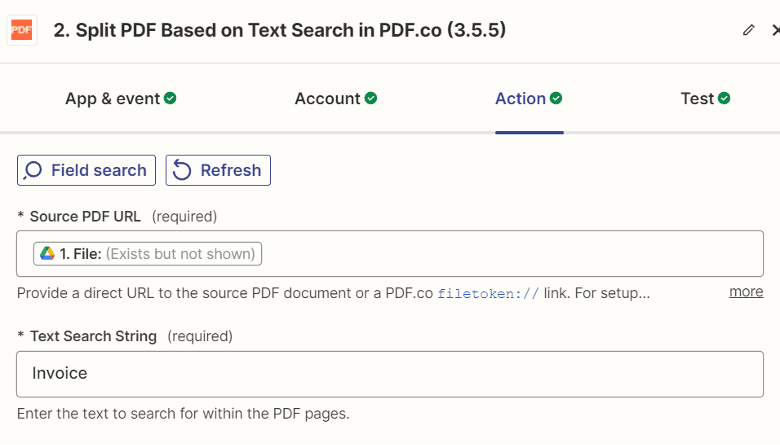

Step 5: Setup PDF.co Configuration

• Set the Source PDF URL property to point to the PDF file you want to process.
• In the Search String field, enter the unique keyword or text that appears on each page where you want to split the PDF. The splitter will split the document at every page containing this keyword.

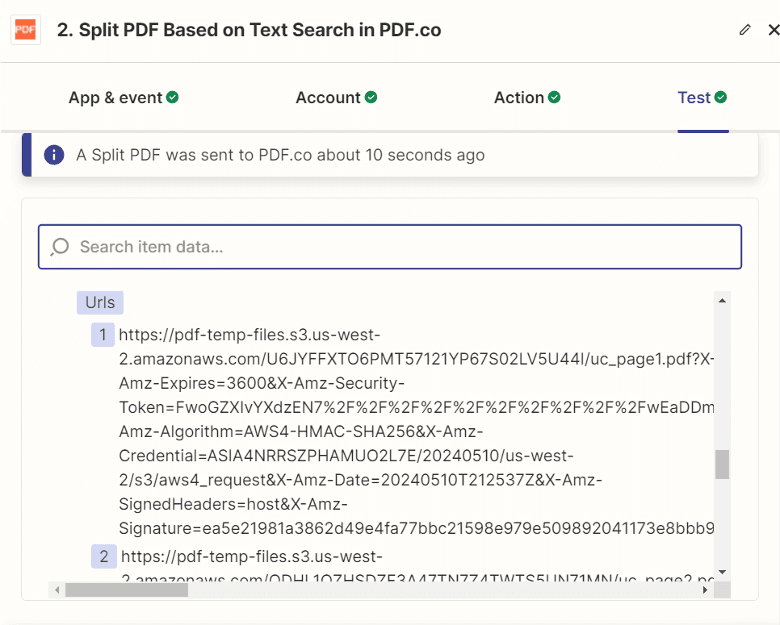

Step 6: Test PDF.co Action

Now, let’s proceed to test the action to split the PDF invoice into individual invoices.

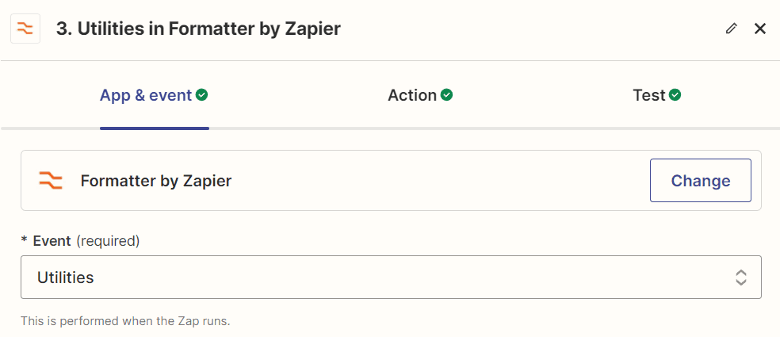

Step 7: Formatter by Zapier

Let's use the Formatter by Zapier to get the link for each of the split pages.

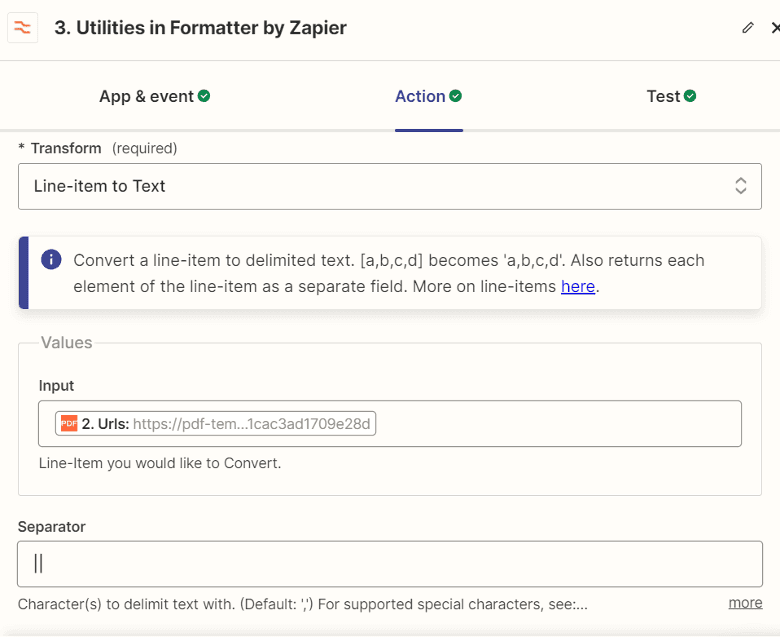

Step 8: Setup Formatter Utilities

• In the Transform field, select Line - item to Text.
• In the Input field, choose the Urls generated by the PDF Split module.
• Set the Separator field to ||, which will be used to separate the individual invoice URLs.

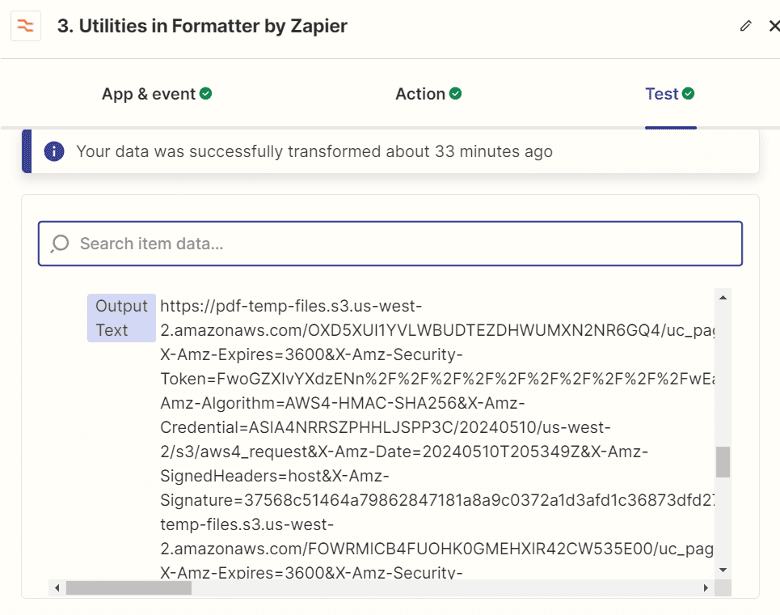

Step 9: Test Formatter

Let's test the Formatter by Zapier to format the PDF invoice URLs for extraction.

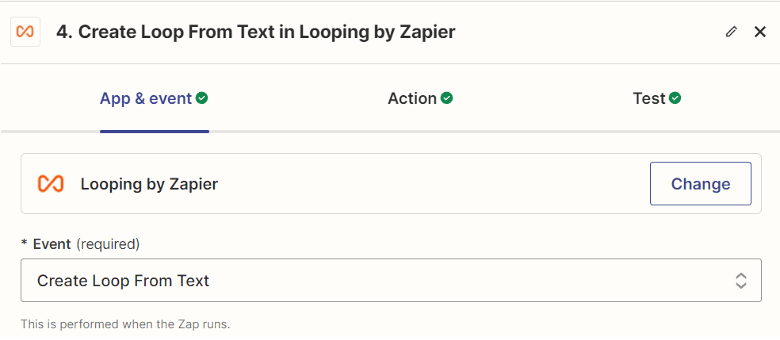

Step 10: Looping by Zapier

Let's integrate the Looping by Zapier to our workflow to process each invoice URL individually. We'll use the Create Loop From Text option.

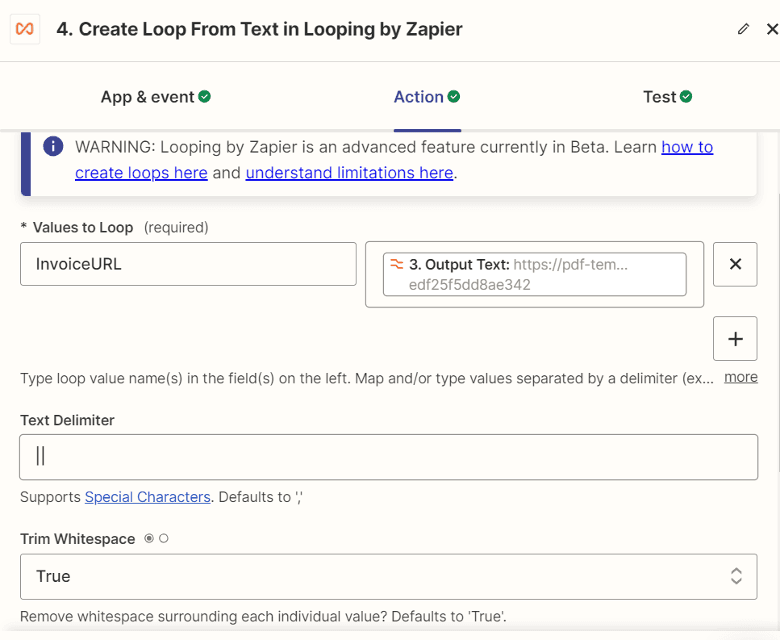

Step 11: Setup Looping from Text

• In the Values to Loop field, enter the variable name for the invoice URLs. This variable will reference each URL in the loop. In the next text box, select the Output Text from the previous module.
• Enter the separator || as the Text Delimiter.

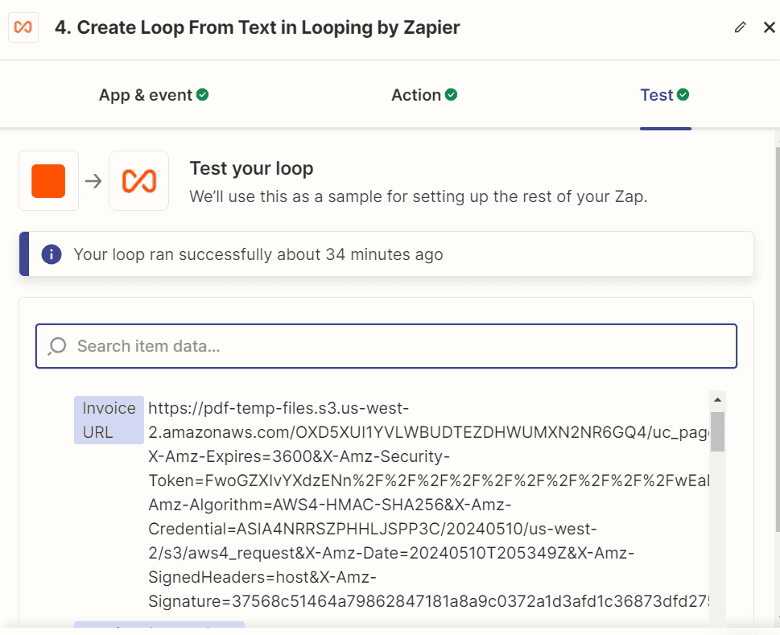

Step 12: Test Looping from Text

Let's test the Looping by Zapier to iterate through each invoice URL.

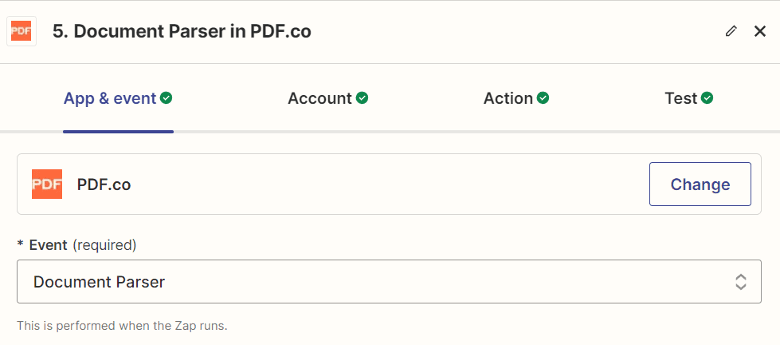

Step 13: PDF.co Document Parser

Let's add the PDF.co Document Parser feature to extract information from each of these individual invoices.

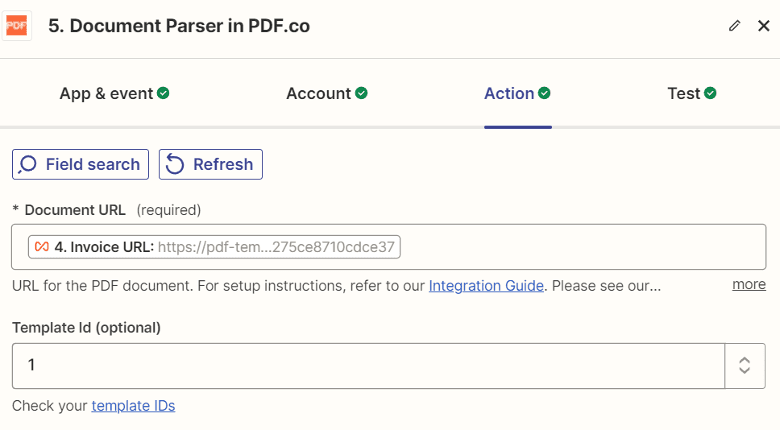

Step 14: Setup Document Parser

• Select the Invoice URL from the output of the looping step.
• Add the Template Id of the custom template you created for this document. If you are new to Document Parser and haven't created a template yet, please visit the Document Parser Manager here: https://app.pdf.co/document-parser-tool/playground/choose-template-group

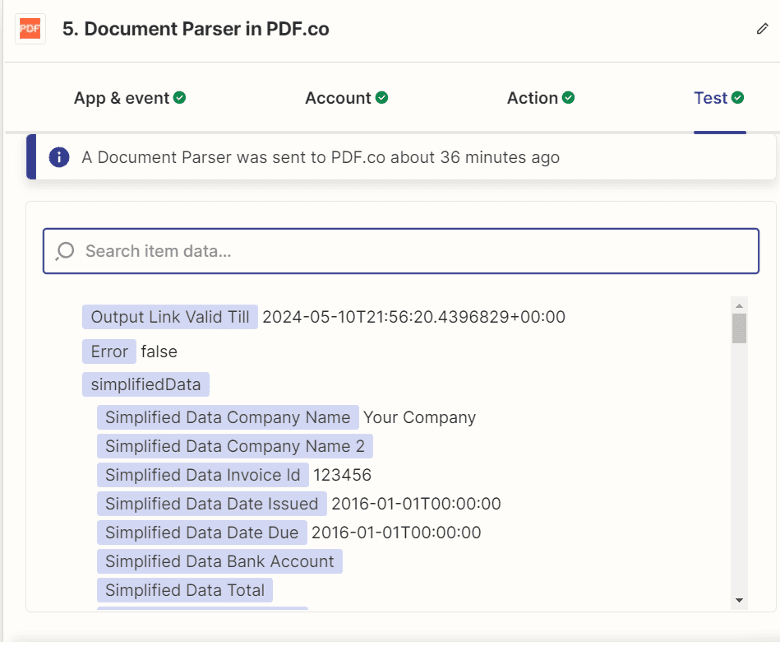

Step 15: Test Document Parser

After setting up the configuration, test the action to extract the data from the PDF invoice.

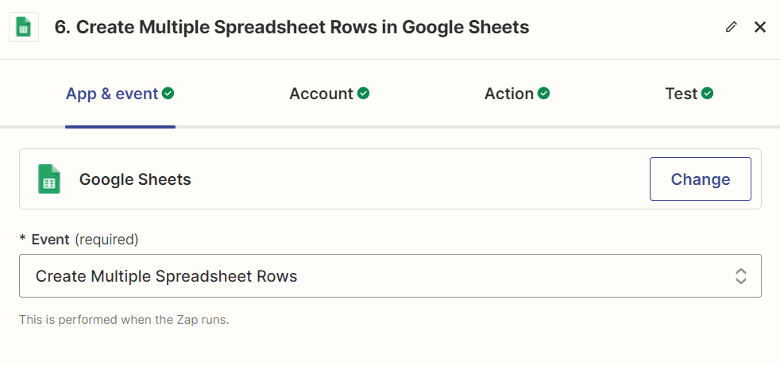

Step 16: Add Google Sheets

Let's integrate the Google Sheets action to save the extracted data from the invoices and select the Create Multiple Spreadsheet Rows option to save the extracted data from each invoice into separate rows.

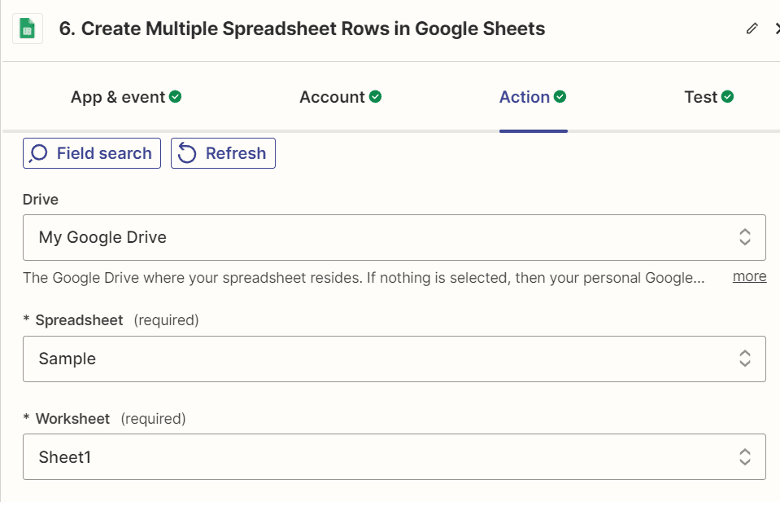

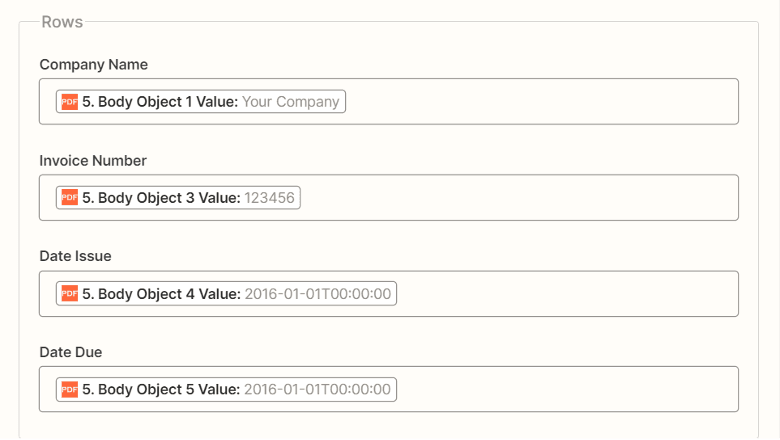

Step 17: Setup Google Sheets

• Specify My Google Drive as the storage location.
• Choose the target Spreadsheet and Worksheet to save the extracted data.
• Map the parsed invoice data to the corresponding columns in the Google Sheet

Step 18: Test Action and See Result

Now, test the action and then open your Google Sheets spreadsheet to review the result.
