Convert PDF Invoices to Google Sheets using Make

In this tutorial, we will show you how to parse a PDF Invoice table and save the table items on Google Sheets using Web API and Make.

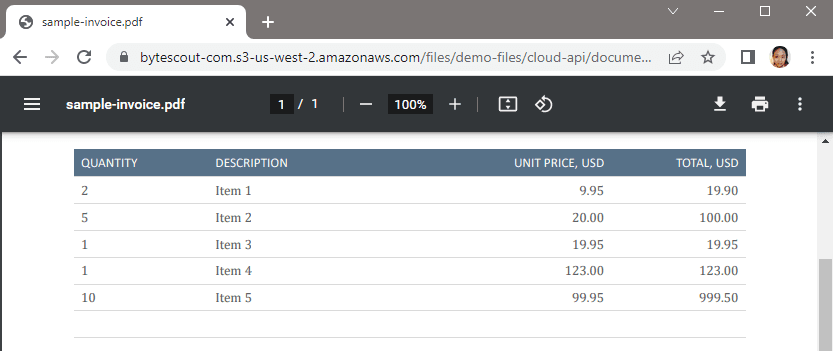

We will use this sample PDF Invoice and parse all the table items. To follow along, you can copy this sample invoice link.

Source PDF Invoice
Source PDF Invoice

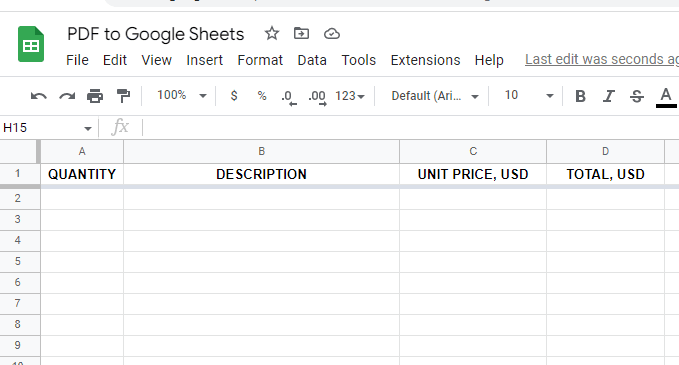

We also prepared a Google Sheet with four headers.

Sample Google Sheets
Sample Google Sheets

Step 1: Add Parse a Document Module

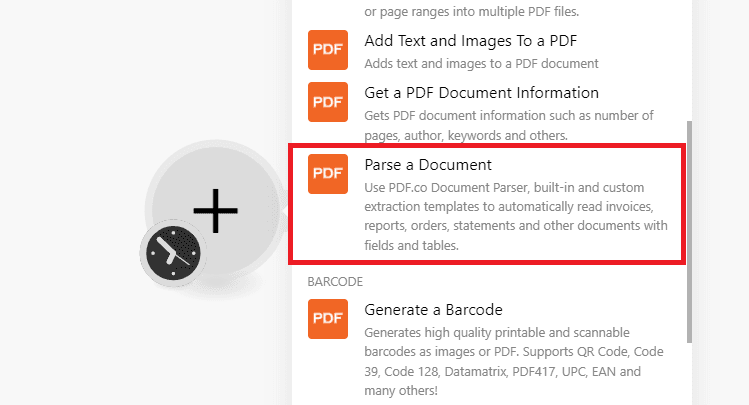

To begin, let’s create a Scenario and add the Parse a Document module.

Add Parse a Document Module

Step 2: Setup Parse a Document

Next, let’s set up the module.

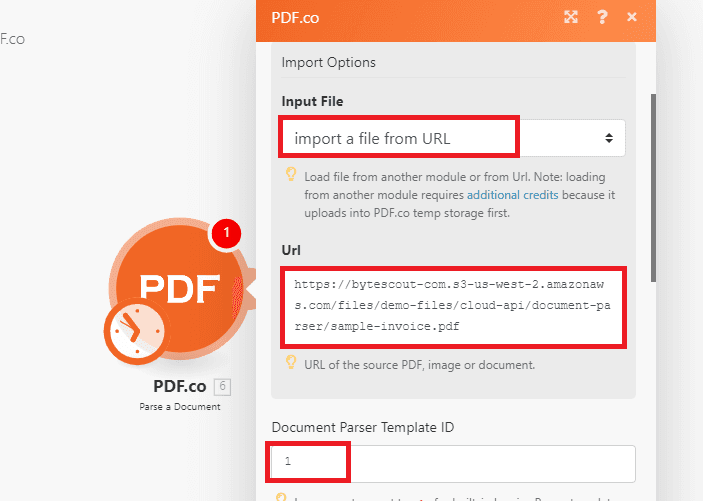

  • In the Input File field, select the Import a file from URL option.
  • In the URL field, enter the source file url.
  • In the Document Parser Template ID field, we will use the default ID. If you have a custom template, you can get the ID on the Document Parser page. For more information about Document Parser, please visit the Document Parser product page.
Configure Parse a Document module

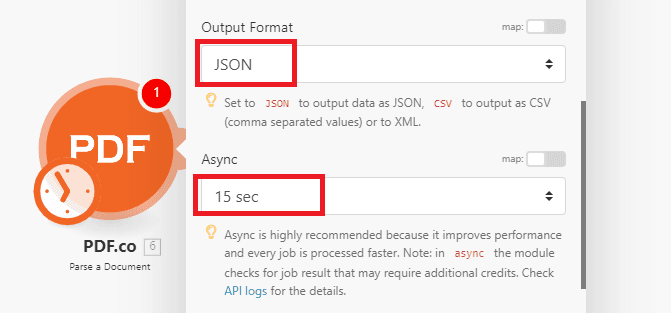

  • In the Output Format field, select the JSON format.
  • In the Async field, you can leave the default value.
Setting up Parse a Document module

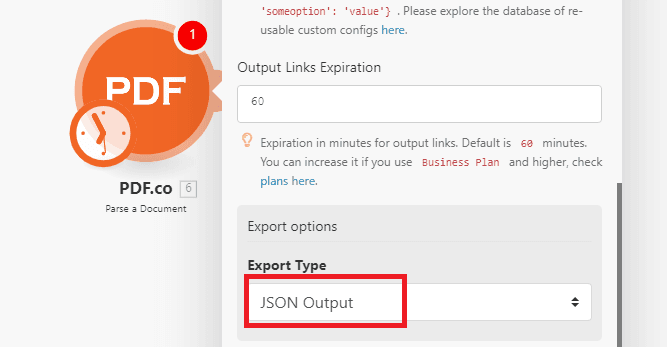

  • Finally, set the Export Type to JSON Output.
Configuring Parse a Document module

Step 3: Run Scenario

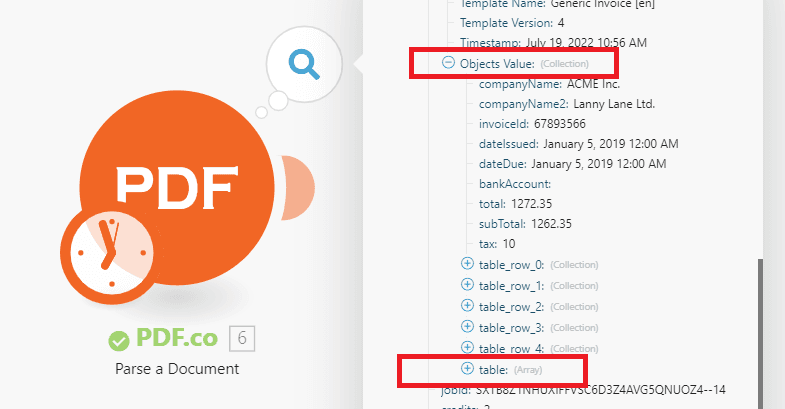

Let’s run the scenario and make sure that our output includes a table Array.

Run scenario

Step 4: Add Iterator

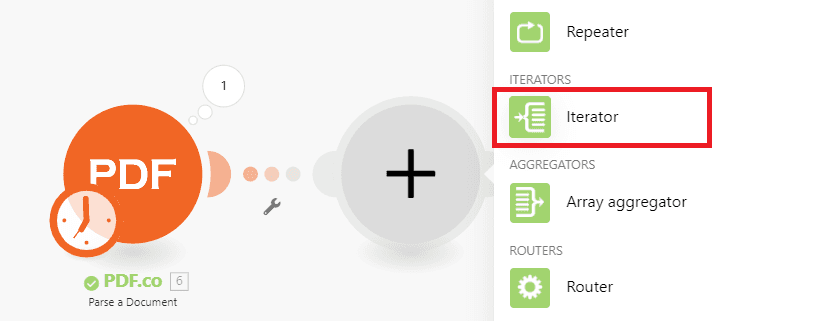

Let’s add a Flow Control Iterator.

Add Flow Control Iterator

Step 5: Add Array

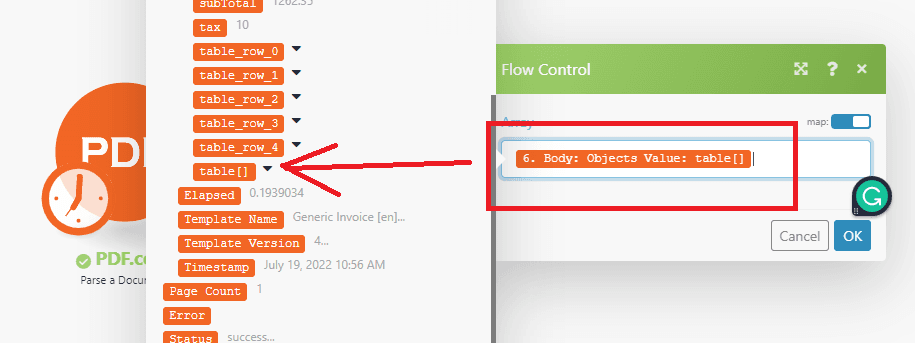

In the Array field, select table[] from the Parse a Document output.

Add Array

Step 6: Add Google Sheets

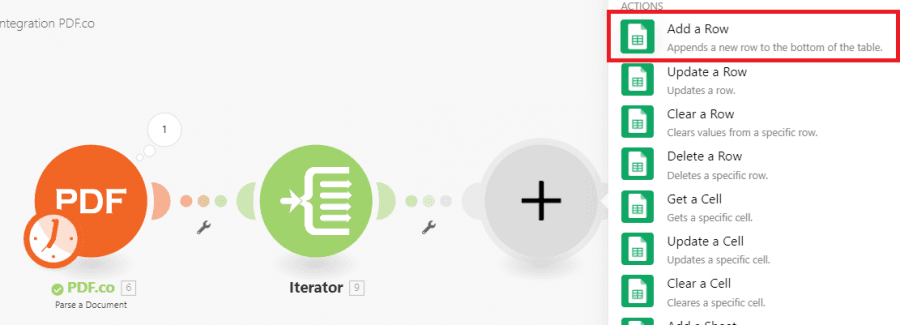

Finally, let’s add the Google Sheets Add a Row module.

Add Google Sheets

Step 7: Configure Google Sheets

Let’s configure the Add a Rows module.

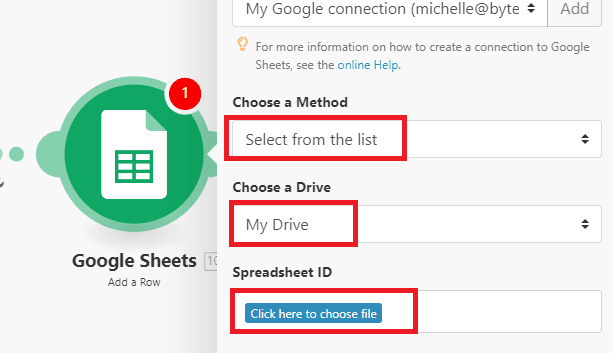

  • First, let’s choose the Method, Drive, and Spreadsheet ID.
Configure Google Sheets module

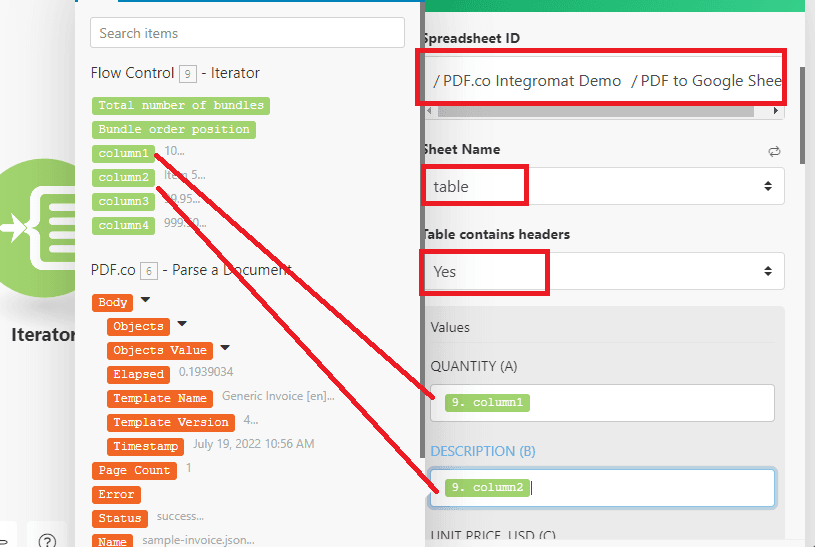

  • Next, select the Sheet Name.
  • Then, choose Yes for the Table contain headers field.
  • Finally, map the Iterator output with their corresponding Google Sheets columns.
Configure Google Sheets module

Step 8: Re-run Scenario

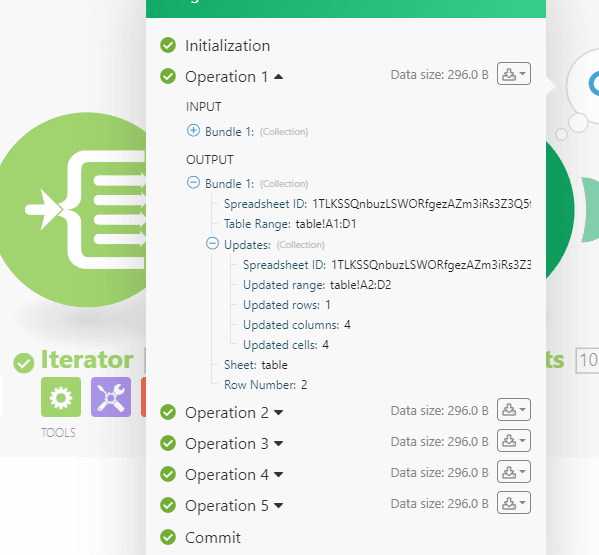

Let’s re-run the scenario to see the output.

Re-run scenario

Step 9: Google Sheets Output

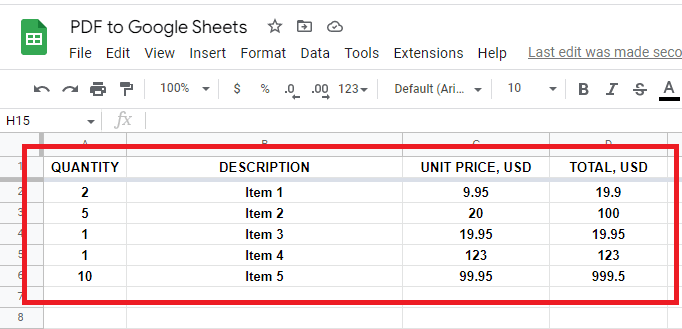

Here’s the Google Sheets output.

Google Sheets Output
Google Sheets Output

In this tutorial, you learned how to convert a PDF Invoice to Google Sheets using and Make. You learned how to parse the table items using the Parse a Document module. You also learned how to map these table items to their corresponding columns on Google Sheets.
