How to Convert PDF to CSV in Salesforce Apex using PDF.co

Sep 2, 2024·6 Minutes Read

Conversion Convert PDF to CSV

In this tutorial, we will show you how to convert a PDF document to CSV in Salesforce Apex using PDF.co

IN THIS TUTORIAL

Create Remote Site Settings

Create Apex Class in Salesforce

Add API Key in the File

Verify Code

Search Files

Output CSV

Step 1: Create Remote Site Settings

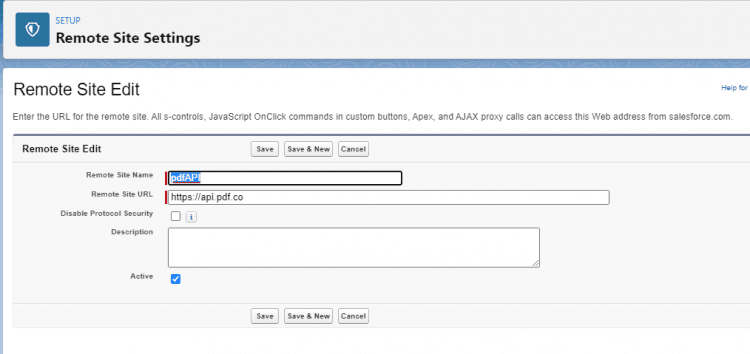

Create a Remote Site Settings in the Salesforce Org like below. Add the https://api.pdf.co link as the Remote Site URL.

Step 2: Create Apex Class in Salesforce

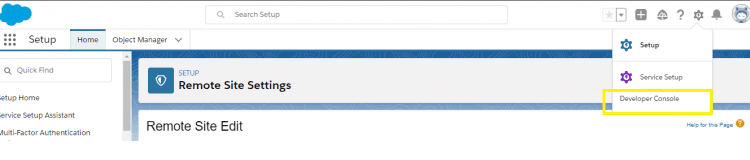

Click the Gear icon on the upper right corner and open the Developer Console.

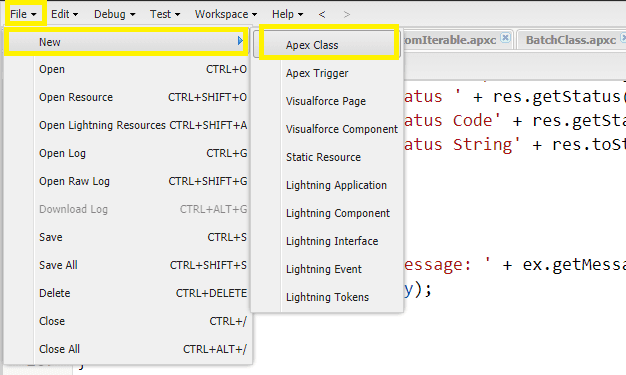

In the Developer Console window, click on File –> New –> Apex Class. Write the class name DocumentParserOutputAsCSV and click OK. Now copy the DocumentParserOutputAsCSV code in this file.

Similarly, create a new file with the name DocumentParserOutputAsCSVTest and copy the code.

Step 3: Add API Key in the File

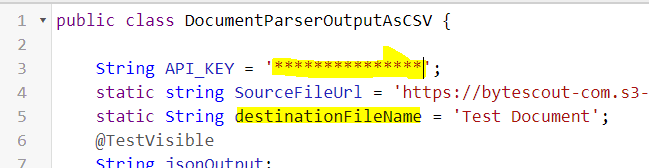

In the DocumentParserOutputAsCSVTest file, add your PDF.co API Key. You can change the Destination file name which you want as a CSV.

Step 4: Verify Code

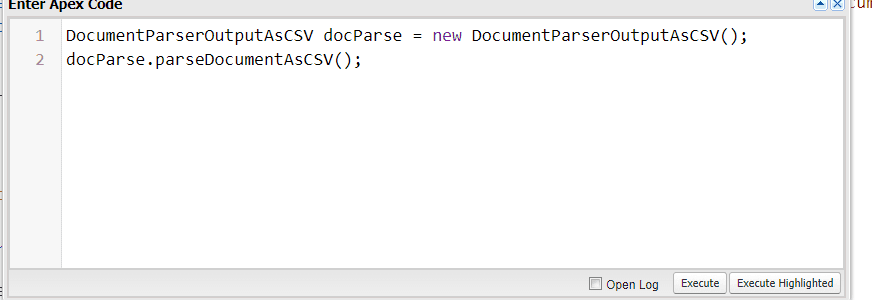

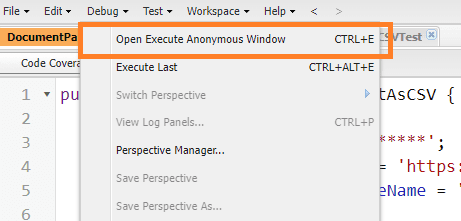

To verify the code, open the execute Anonymous window and call the method below.

Then, click on Execute.

Step 5: Search Files

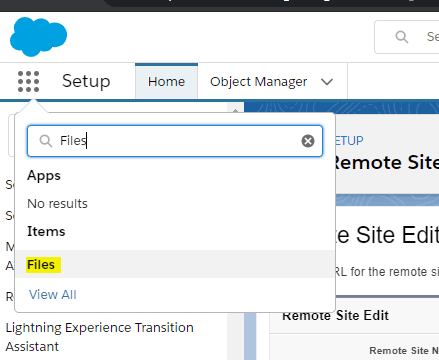

Now, open the App Launcher to view the output file.

Step 6: Output CSV

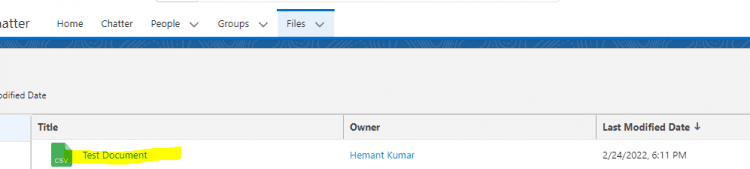

Here’s the generated CSV output.

Source Code Files:

DocumentParserOutputAsCSV

public class DocumentParserOutputAsCSV {

    String API_KEY = '***************';
    static string SourceFileUrl = 'https://bytescout-com.s3-us-west-2.amazonaws.com/files/demo-files/cloud-api/document-parser/sample-invoice.pdf';
    static String destinationFileName = 'Test Document';
    @TestVisible
    String jsonOutput;
    public void parseDocumentAsCSV()
    {
        try
        {
            // Create HTTP client instance
            Http http = new Http();
            HttpRequest request = new HttpRequest();
            // Set API Key
            request.setHeader('x-api-key', API_KEY);

            Boolean async = false;
            String inline = 'true';
            String profiles = '';
            Boolean encrypt = false;
            Boolean storeResult = false;
            String generateCSVHead ='true';
            // PDF document password. Leave empty for unprotected documents.
    		string Password = '';
            // Prepare requests params as JSON
            // See documentation: https://apidocs.pdf.co
            // Create JSON payload
            JSONGenerator gen = JSON.createGenerator(true);
            gen.writeStartObject();
            gen.writeStringField('url', SourceFileUrl);
            gen.writeStringField('templateId', '1');
            gen.writeStringField('outputFormat', 'CSV');
            gen.writeStringField('generateCsvHeaders', generateCSVHead);
            gen.writeBooleanField('async', async);
            gen.writeBooleanField('encrypt', encrypt);
            gen.writeStringField('inline', inline);
            gen.writeStringField('password', password);
            gen.writeEndObject();
            // Convert dictionary of params to JSON
            String jsonPayload = gen.getAsString();

            // URL of 'documentparser' endpoint
            string url = 'https://api.pdf.co/v1/pdf/documentparser';
            request.setEndpoint(url);
            request.setHeader('Content-Type', 'application/json;charset=UTF-8');
            request.setMethod('POST');
            request.setBody(jsonPayload);
            // Execute request
            HttpResponse response =  http.send(request);

            if(response.getStatusCode() == 200)
            {
                // Parse JSON response
                Map<String, Object> json = (Map<String, Object>)JSON.deserializeUntyped(response.getBody());
                if ((Boolean)json.get('error') == false)
                {
                    jsonOutput = response.getBody();
                    saveDocument((String)json.get('body'));
                    System.debug('JSON :: '+ jsonOutput);
                }
            }
            else
            {
                System.debug('Error Response ' + response.getBody());
                System.Debug(' Status ' + response.getStatus());
                System.Debug(' Status Code' + response.getStatusCode());
                System.Debug(' Response String' + response.toString());
            }
        }
        catch (Exception ex)
        {
            String errorBody = 'Message: ' + ex.getMessage() + ' -- Cause: ' + ex.getCause() + ' -- Stacktrace: ' + ex.getStackTraceString();
            System.Debug(errorBody);
        }
    }

    public static void saveDocument(String jsonResponse)
    {
        ContentVersion cv = new ContentVersion();
        cv.Title = destinationFileName;
        cv.PathOnClient = 'TestDocument.csv';
        cv.VersionData = Blob.valueOf(jsonResponse);
        cv.IsMajorVersion = true;
        Insert cv;
    }
}

DocumentParserOutputAsCSVTest

@isTest
private class DocumentParserOutputAsCSVTest {

    @isTest static void testParseDocumentAsCSV()
    {
        Test.startTest();
        Test.setMock(HttpCalloutMock.class, new DocumentParseHttpCalloutMock());
        DocumentParserOutputAsCSV docParse = new DocumentParserOutputAsCSV();
        docParse.parseDocumentAsCSV();
        Test.stopTest();
    }

    @isTest static void testParseDocumentAsCSVForCatch()
    {
        DocumentParserOutputAsCSV docParse = new DocumentParserOutputAsCSV();
        docParse.parseDocumentAsCSV();
    }

    public class DocumentParseHttpCalloutMock implements HttpCalloutMock {

        public HTTPResponse respond(HTTPRequest request) {
            // Create a fake response
            HttpResponse response = new HttpResponse();
            response.setHeader('Content-Type', 'application/json;charset=UTF-8');
            response.setBody('{"body": "companyName,companyName2","pageCount": 1,"error": false,"status": 200,"name": "sample-invoice.csv","remainingCredits": 60804}');
            response.setStatusCode(200);
            return response;
        }
    }
}
