How to Add Image to PDF using Google Apps Script and PDF.co

Go to Script Editor and write Source Code

Navigate to “Script Editor” from Tools > Script Editor, and add your source code there.

Enable Code Execution Permissions

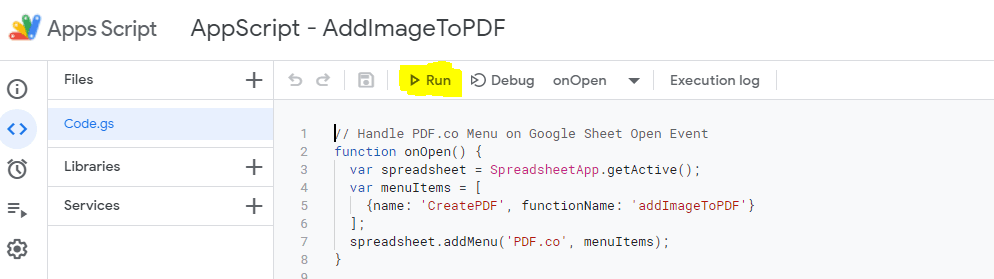

Once you have added source code and saved Apps script projects, make sure you have enabled script execution permission. In order to do that please execute the script from the “Run” button.

After the script is executed, you will see the “PDF.co” menu in the spreadsheet. If the menu is not appearing to you then please refresh the page.

Creating a menu

Whenever google spreadsheet is loaded/reloaded, “onOpen” method is called. Hence this method is the perfect placeholder for code that we want to execute at the start of spreadsheet load.

There, We’ve added logic to create a menu named “PDF.co” and inside a submenu named “CreatePDF”. Please note that on clicking the “CreatePDF” sub-menu item, we’re calling the function “addImageToPDF”.

// Handle PDF.co Menu on Google Sheet Open Event
function onOpen() {
  var spreadsheet = SpreadsheetApp.getActive();
  var menuItems = [
    {name: 'CreatePDF', functionName: 'addImageToPDF'}
  ];
  spreadsheet.addMenu('PDF.co', menuItems);
}

Referencing Cells

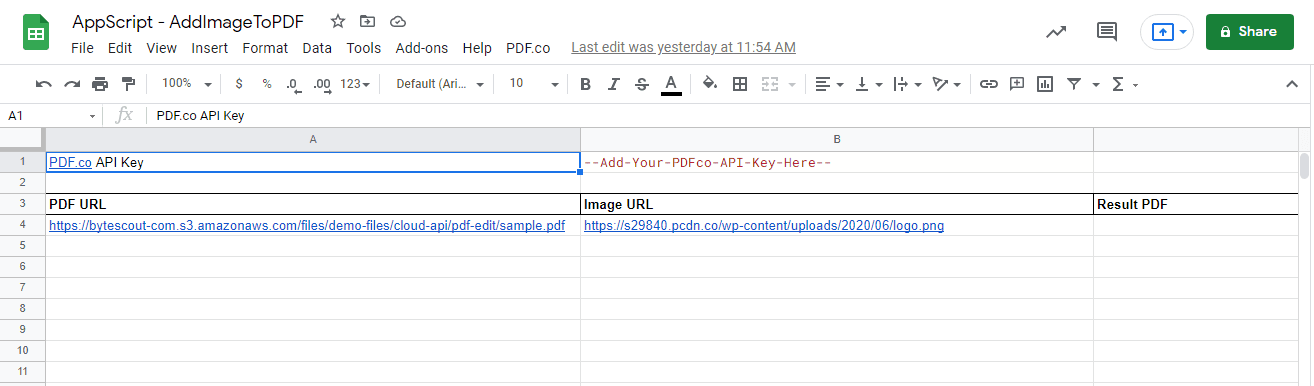

We’re referencing cells that hold information for API Key, PDF URL, Image URL, and Output URL. These variables referencing spreadsheet cells are useful for reading and writing information to them.

  // Get PDF.co API Key Cell
  let pdfCoAPIKeyCell = spreadsheet.getRange("B1");

  // Get Cells for Input/Output
  let pdfUrlCell = spreadsheet.getRange("A4");
  let imageUrlCell = spreadsheet.getRange("B4");
  let resultUrlCell =  spreadsheet.getRange("C4");

  let pdfCoAPIKey = pdfCoAPIKeyCell.getValue();
  let pdfUrl = pdfUrlCell.getValue();
  let imageUrl = imageUrlCell.getValue();

Preparing request

We are preparing a request payload for PDF.co as per API specifications. To get more details on this please refer to API endpoint documentation at this link. Please note that we’re passing a PDF.co API key named “x-api-key” in the header for authentication of request.

  // Prepare Payload
  var data = {
    "async": false,
    "encrypt": false,
    "inline": true,
    "name": "sample_result",
    "url": pdfUrl,
    "imagesString": `260;350;0-;${imageUrl}`
  };

  // Prepare Request Options
  var options = {
    'method' : 'post',
    'contentType': 'application/json',
    'headers': {
      "x-api-key": pdfCoAPIKey
    },
    // Convert the JavaScript object to a JSON string.
    'payload' : JSON.stringify(data)
  };

Consuming response

We’re making a call to the PDF.co API endpoint, and upon receiving the response we’re getting the resulting output URL and updating the spreadsheet cell.

  var pdfCoResponse = UrlFetchApp.fetch('https://api.pdf.co/v1/pdf/edit/add', options);

  var pdfCoRespContent = pdfCoResponse.getContentText();
  var pdfCoRespJson = JSON.parse(pdfCoRespContent);

  // Display Result
  if(!pdfCoRespJson.error){
    resultUrlCell.setValue(pdfCoRespJson.url);
  }
  else{
    resultUrlCell.setValue(pdfCoRespJson.message);
  }
