How to Convert PDF to TEXT Using Automation Anywhere and

About Automation Anywhere

Automation Anywhere is a technology company headquartered in San Jose, California, USA. It is a provider of an end-to-end Robotic Process Automation (RPA) and Artificial Intelligence (AI) platform for automating any business process. They offer Discovery Bot for fast-track automation, IQ Bot for transforming unstructured and hidden data with AI that can learn on its own, Bot Insight for real-time analytics, and a Bot Store to get pre-built automation solutions.

We prepared this step by step tutorial with screenshots on how to make a Bot using to convert PDF to TEXT.

In this tutorial, we assume that you have already had a Community or Enterprise version of Automation anywhere with chrome extension as well as client agent already installed. We also assume that you have basic knowledge of how to create a simple bot and have it executed on your machine.

Useful Resources:

Step by Step Guide

This is a step-by-step tutorial on how to convert PDF to text using Automation Anywhere and plugin. API Endpoint API Endpoint for converting PDF to TEXT. We’ll have method documentation handy either by Postman or online documentation at, so that we can configure API as per our requirement.

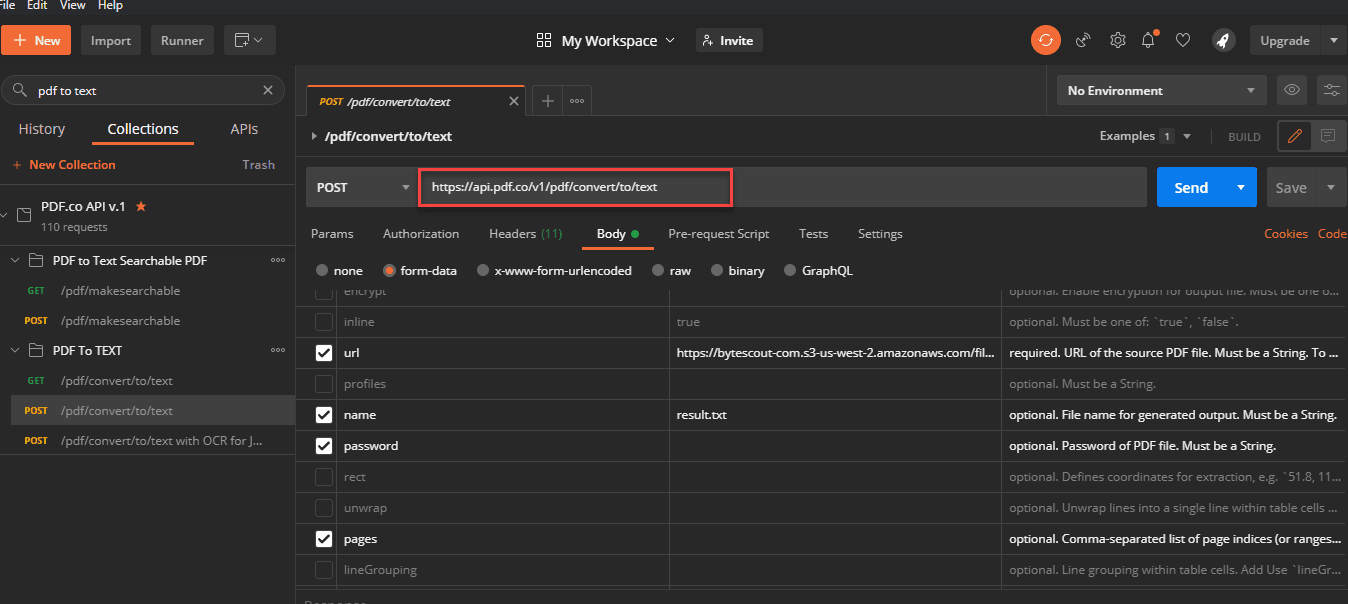

Configure API

Bot Creation

In Automation Anywhere cloud Control Room, create a new boat for extracting text from PDF. We’ll be using “Rest Web Service: Post Method” action to consume “/pdf/convert/to/text” API endpoint. We’ll also have the “Message Box” action attached to the output of the API call. The final bot structure will be as follows.

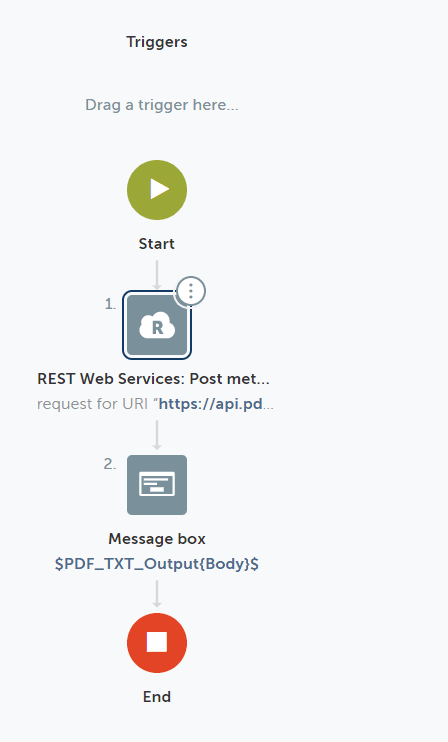

Bot Configuration

URI Configuration

Configure URI to “” in “Rest Web Service: Post Method” action.

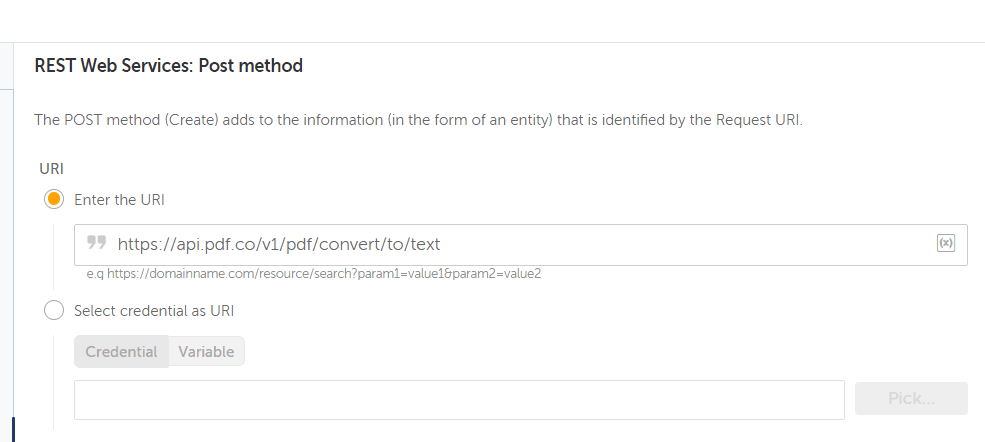

URI Configuration

Headers Configuration

Configure the Header key with the name “x-api-key” with the API key for This API key is essential for consuming APIs. API keys can be obtained at

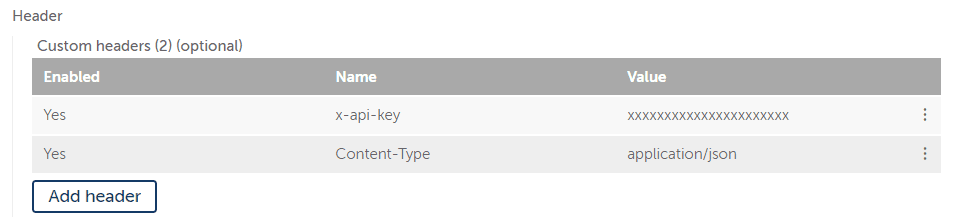

Headers Configuration

Request Input Configuration

Configure input data to the REST Web API call. Here, we’ve configured very basic JSON service request data as follows.

{ "url": "", "name": "result.txt" }

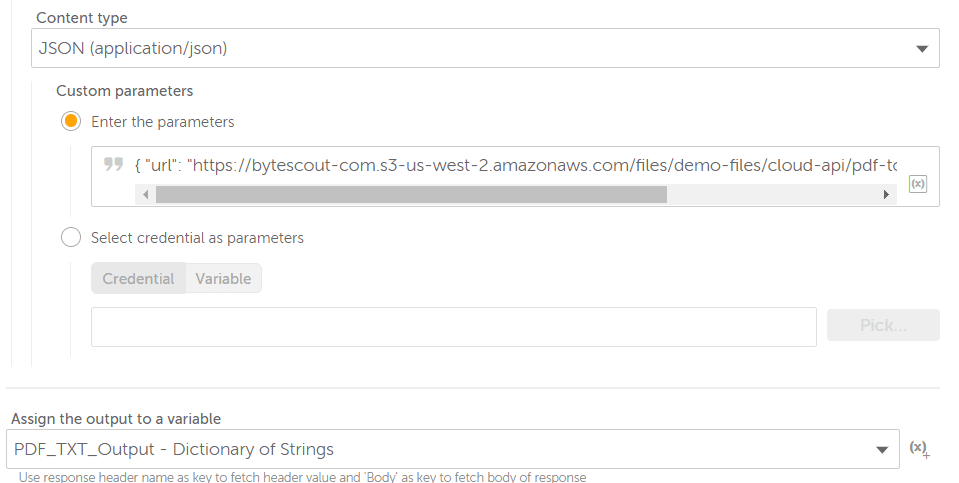

JSON Request

Configure Rest API Output

Create an output variable of type dictionary which will hold the response of API call.

Configure Message Box

Drag and Drop the “Message box” action and attach it after the “REST Web Service: Post Method” action. Here, we’ll configure the “message to display” property with the “Body” key from the output variable.

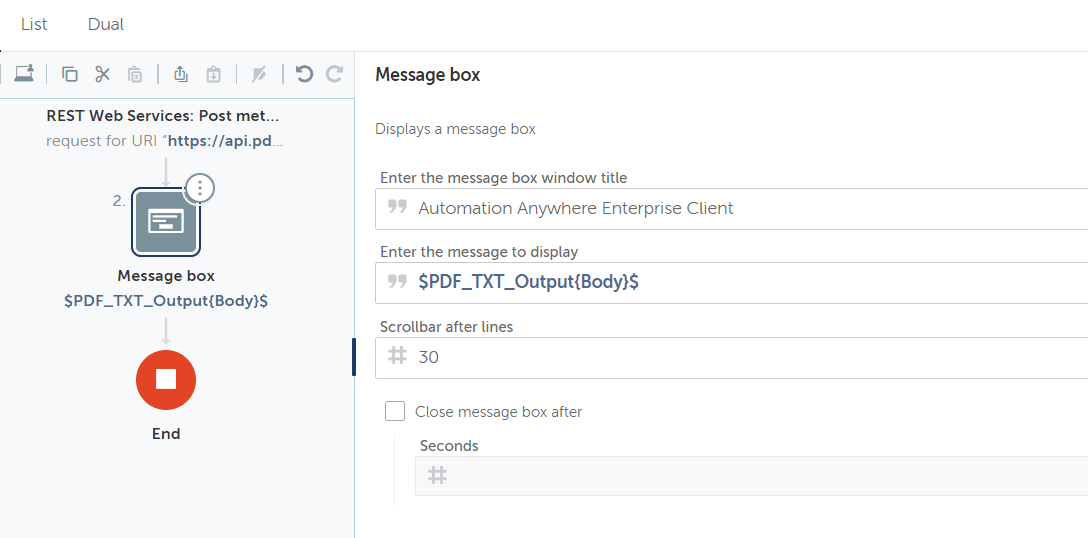

Configure Message Box

Execute Bot and Review Output

With this configuration completed, we’re now ready to execute the bot and see the output message box.

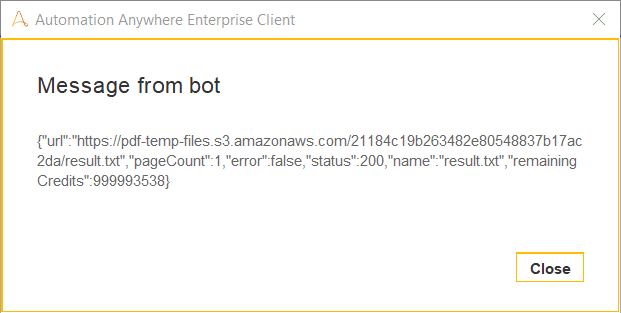

Output Message Box

Additional Service Configurations API endpoint properties can be configured as per our needs. For example, if we want output text to be included in response we can set the “inline” property to a “true” value.

{ "url": "", "name": "result.txt", "inline": true }

Output with this changed input JSON will show output as shown in the following image.

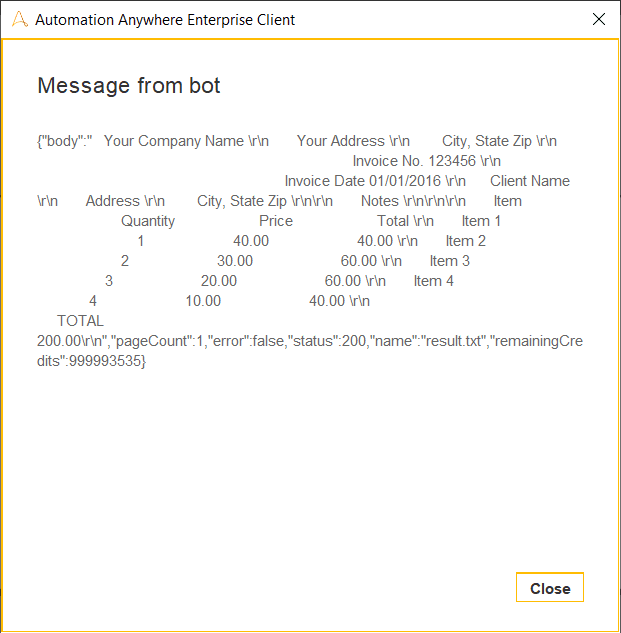

Message From Bot

Now, you’ve learned how to convert PDF to text using Automation Anywhere and plugin.
