Automatically Detect a Table in a PDF Using PDF.co Document Parser

Step 1: Open the Template Manager

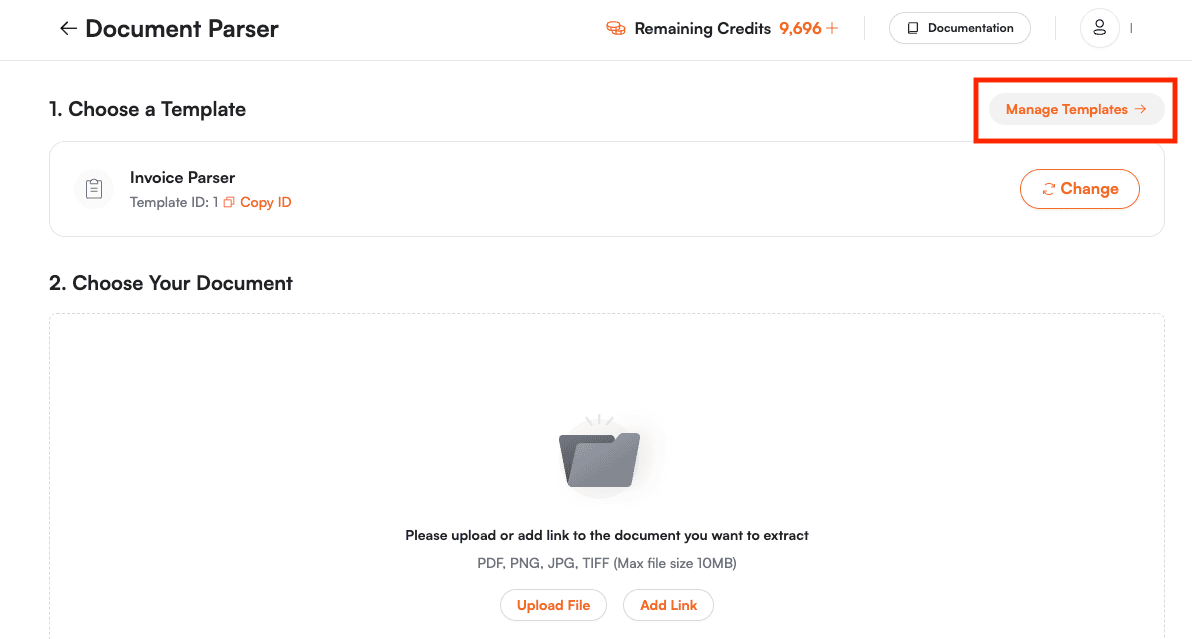

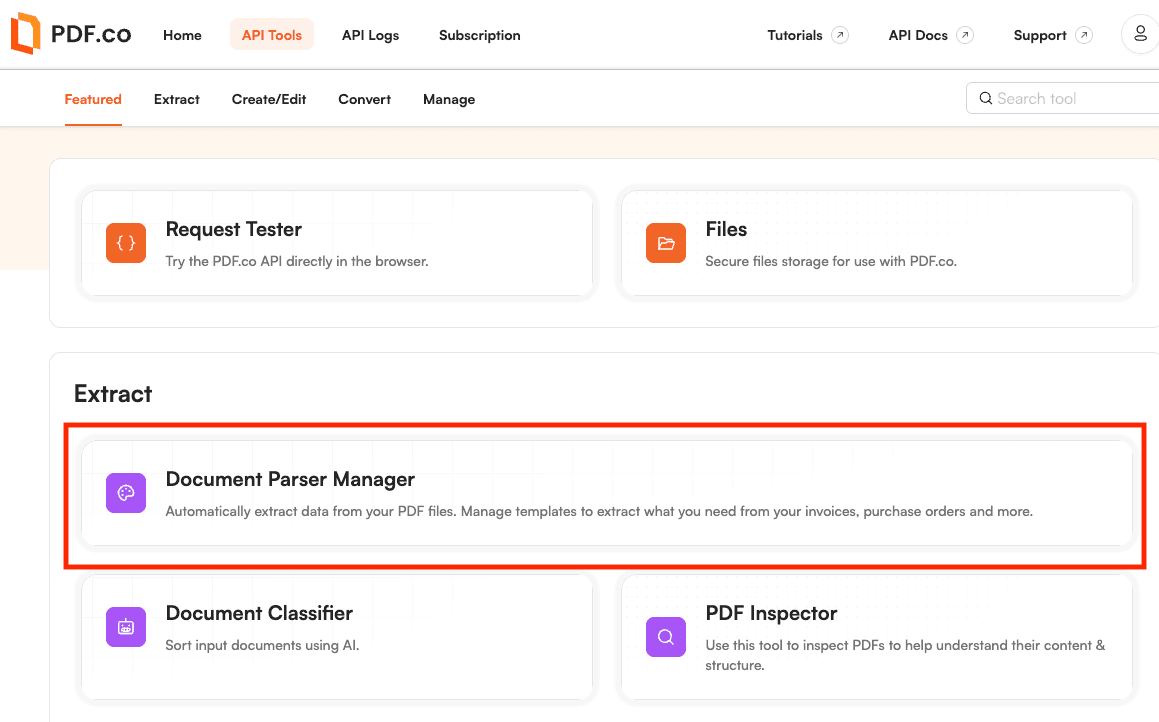

Sign in to PDF.co and open the Document Parser Template Manager.

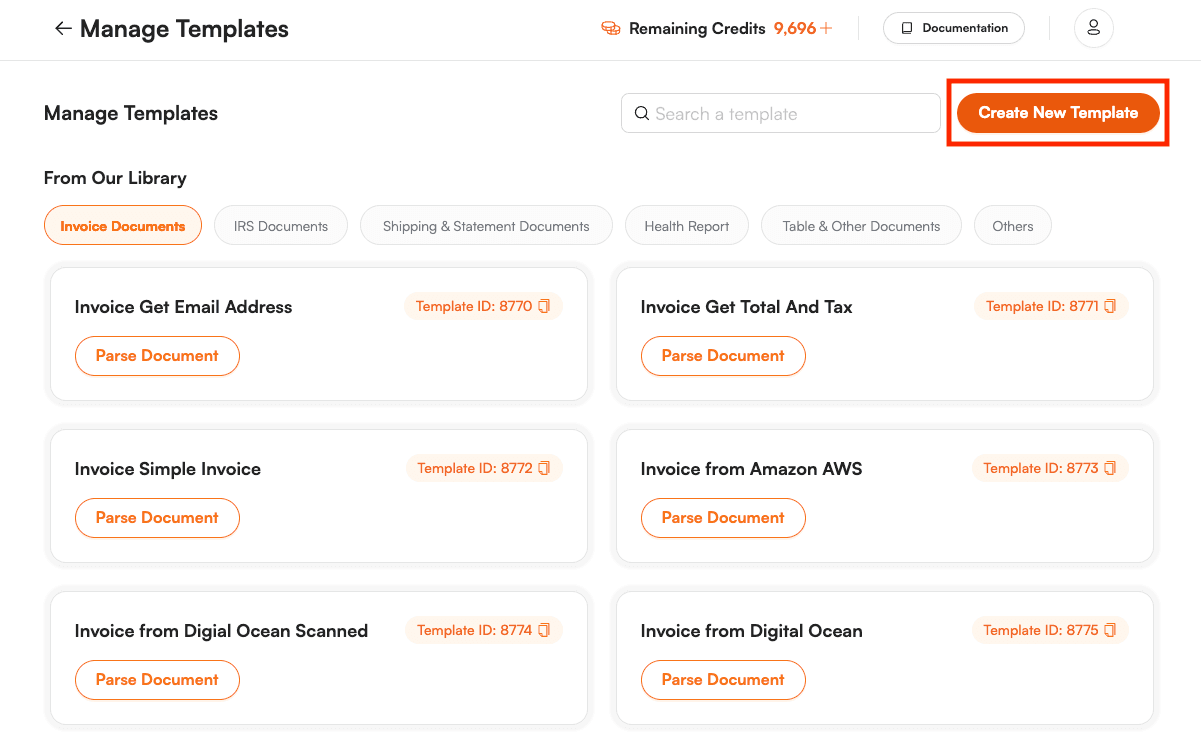

Create a new template and open it in the editor.

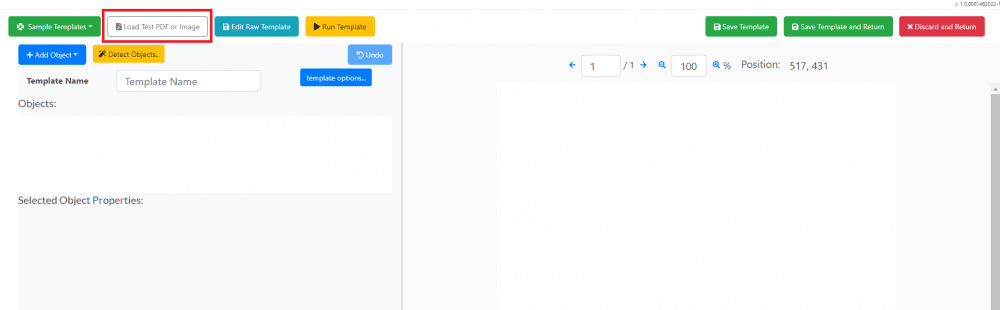

Step 2: Load Your Sample PDF

Load a PDF containing the table you want to extract.

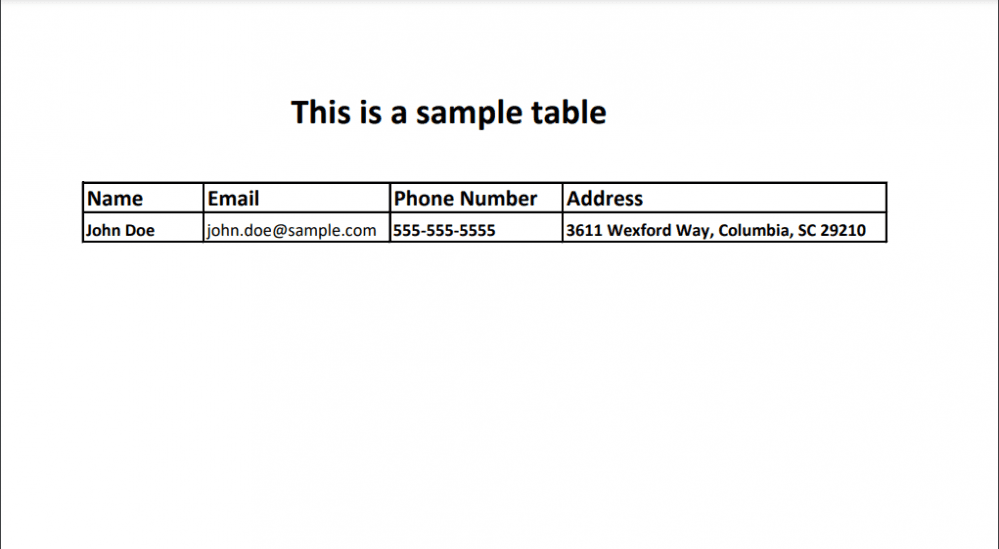

For this example, use a document with a table on its first page. Keep the source PDF available so you can compare it with the extracted results.

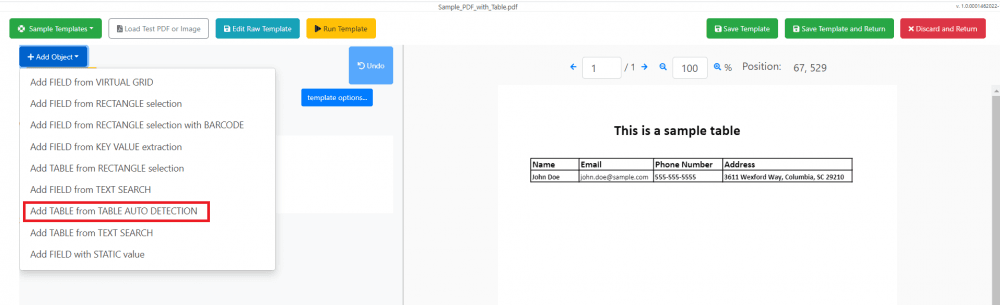

Step 3: Add an Auto-Detection Table Object

Give the object a descriptive name, such as ExtractedTable.

Configure it to target:

• Page index: 0 for the first page.
• Table index: 0 for the first detected table on that page.

To target another table, adjust these indexes. Page and table numbering begin at zero.

See the Document Parser Template Creation Guide for details about automatic table detection and template settings.

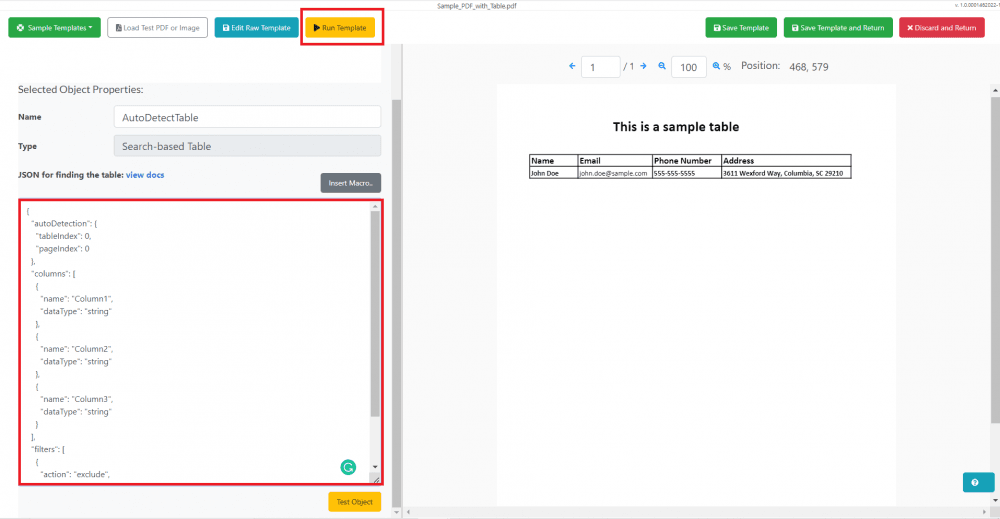

Step 4: Test the Template

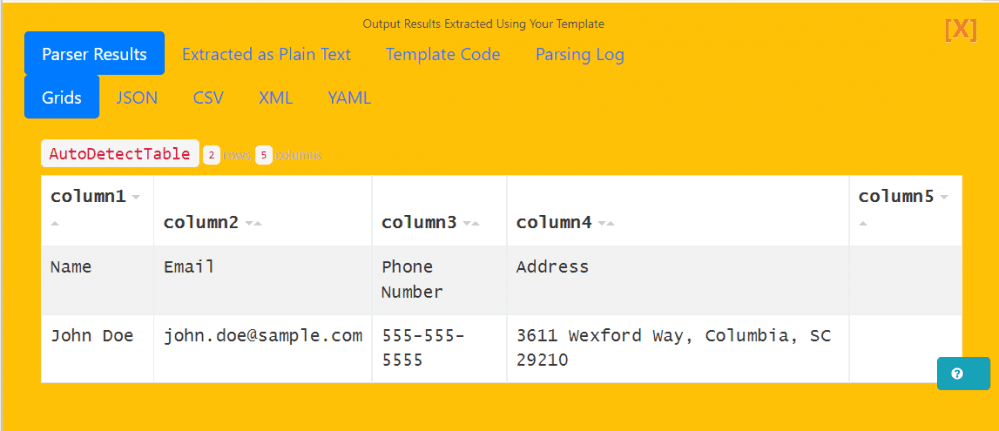

Run the template against your sample PDF and review the extracted table in the results.

Compare the output with the original, checking that:

• The expected rows and columns are included.
• Values appear in the correct columns.
• Numbers, decimal places, and multiline descriptions are extracted correctly.

Adjust the configuration and rerun the test if needed.

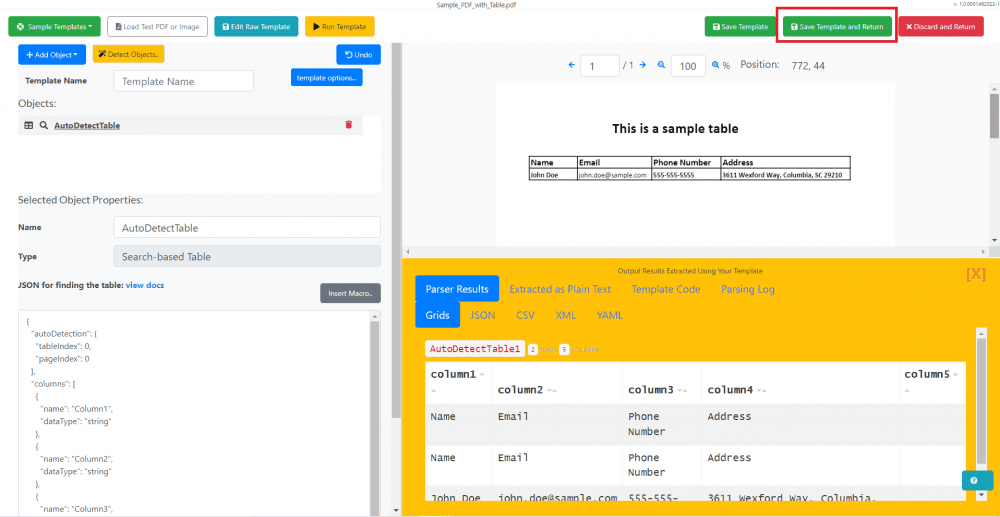

Step 5: Save and Reuse the Template

Save the template with a recognizable name and copy its Template ID.

Use that ID with the Document Parser API or a Document Parser action in Make or Zapier to apply the saved extraction settings to other PDFs.
