PDF Splitter API – Use PDF.co API Platform to Split PDF Files

The PDF Splitter API can split a PDF document of any size. There are two ways to split a PDF document using the API.

• Split by Page
• Split by Text

The split by page allows you to define a specific page index and range while the split by text lets you set search strings to guide the splitter.

All the PDF documents that you send and generate using our API are secured and encrypted. The files generated by our server expires in 1 hour by default. For more information about PDF.co API Security, check out https://pdf.co/security

PDF Splitter API Benefits

Split PDF by Page Index

The PDF Splitter API is very flexible when splitting a PDF document by page. You can specify the page indexes you want to split by using the page number, the inverted page numbers, or use the special symbol asterisk "*" to split the document into separate pages.

Split PDF by Text

The Split by Text function uses search string and /or regex search to split the PDF pages. When splitting by search string, the engine will find the specified string in the individual pages and split it the moment it finds the string. While the regex search finds the regular expression pattern in the pages.

Split into Multiple PDF Files

The PDF Splitter API can split a PDF document into multiple PDF files. There’s no limitation to the number of pages that you can split as long as the conditions set in the PDF Splitter API endpoints are met.

On-Premise API Server

We have the on-premise API Server and an on-demand version of The PDF Splitter API module. The on-premise API Server can easily be configured for optimal and better performance. It can also be customized for your specific module needs.

Sign Up

PDF Splitter API Integrations

PDF.co API integrates with over 300+ online apps. See below for sample tutorials.

• Zapier – https://pdf.co/zapier/split-pdf-from-google-drive-folder
• Integromat – https://pdf.co/parse-attachments-from-email-and-automatically-split-attached-pdf-into-pages
• UiPath – https://pdf.co/split-pdf-with-uipath
• BluePrism – https://pdf.co/split-pdf-with-blue-prism
• Automation Anywhere – https://pdf.co/split-pdf-with-automation-anywhere

PDF Splitter API Sample & Demo

Check the source codes below:

• Split by Page
• Split by Text

Split by Page

We will start our demonstration using the /v1/pdf/split endpoint. We have a 4-page PDF document that we will split into 2 PDF documents. Pages 1-2 will be PDF 1 and pages 3-4 will be PDF 2.

Once we have successfully split the PDF document, we will have 2 separate PDFs. The PDFs will look like these.

Let’s review the /v1/pdf/split endpoint’s parameters and their corresponding uses real quick.

Endpoint

URL:	https://api.pdf.co/v1/pdf/split
Method:	POST

Parameter	Description
url	required. Link to the source file.
pages	define comma-separated page index or range. See API Docs for samples.
encrypt	optional. Enable encryption to the output file.
async	optional. Runs processing asynchronously. Returns jobId to use with job/check: true or false
name	optional. Output file name.
profiles	optional. Must be a String. Set custom configuration. See profiles examples here



cURL Code Snippet

curl --location --request POST 'https://api.pdf.co/v1/pdf/split' \
--header 'Content-Type: application/json' \
--header 'x-api-key: {{x-api-key}}' \
--data-raw '{
    "url": "https://bytescout-com.s3.amazonaws.com/files/demo-files/cloud-api/pdf-split/sample.pdf",
    "pages": "1-2,3-",
    "name": "result.pdf"
}'

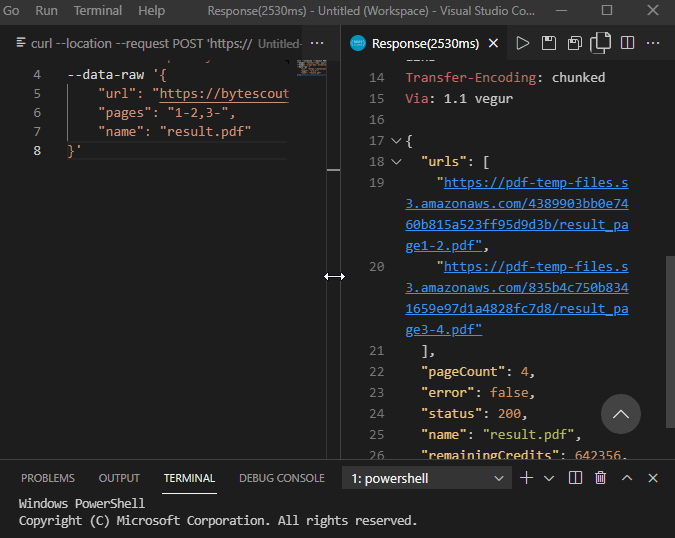

Let’s see the PDF Splitter by Page using the cURL Code Snippet above.

Calling /v1/pdf/spit using cURL

PDF Splitter JavaScript codes are located in our repository here.

PDF Splitter PHP codes are located in our repository here.

PDF Splitter Java codes are located in our repository here.

PDF Splitter C# sample codes are located in our repository here.

Sign Up

Split by Text

Now, let’s demonstrate the /v1/pdf/split2 endpoint. We will use a 3-page PDF invoice and split the pages every time the engine finds the string Invoice Number.

Once the request has been processed, the output will look like this.

Let’s run over the /v1/pdf/split2 endpoint’s parameters and their corresponding functions.

Endpoint

URL:	https://api.pdf.co/v1/pdf/split2
Method:	POST

Parameter	Description
url	required. Link to the source file.
searchString	required. Text to search for on pages.
excludeKeyPages	optional. Set to true if you want to exclude pages where text was found.
regexSearch	optional. Set to true to enable regex search.
caseSensitive	optional. Set to true to enable case-sensitive search.
lang	optional. eng by default.
encrypt	optional. Enable encryption to output file.
async	optional. Runs processing asynchronously. Returns jobId to use with job/check: true or false
name	optional. Output file name.
profiles	optional. Must be a String. Set custom configuration. See profiles examples here

cURL Code Sample

curl --location --request POST 'https://api.pdf.co/v1/pdf/split2' \
--header 'Content-Type: application/json' \
--header 'x-api-key: {{x-api-key}}' \
--data-raw '{
    "url": "https://bytescout-com.s3-us-west-2.amazonaws.com/files/demo-files/cloud-api/pdf-split/multiple-invoices.pdf",
    "searchString": "Invoice Number",
    "name": "result.pdf"
}'

The Split by Text cURL sample codes are available here.

Let’s see the PDF Splitter Split by Text in action using the sample cURL code.

Calling PDF Splitter /v1/pdf/split2 endpoint using cURL

The Split by Text JavaScript sample codes are available here.

The Split by Text PHP sample codes are available here.

The Split by Text Java sample codes are available here.

The Split by Text C# sample codes are available here.
